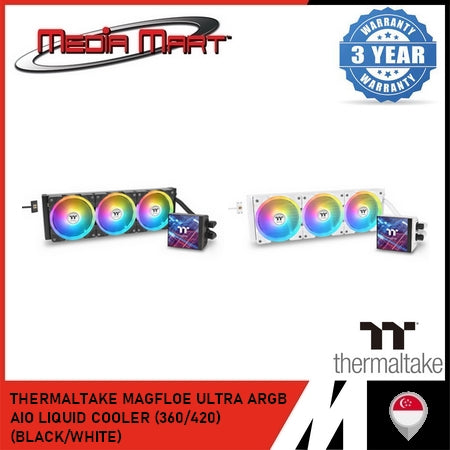

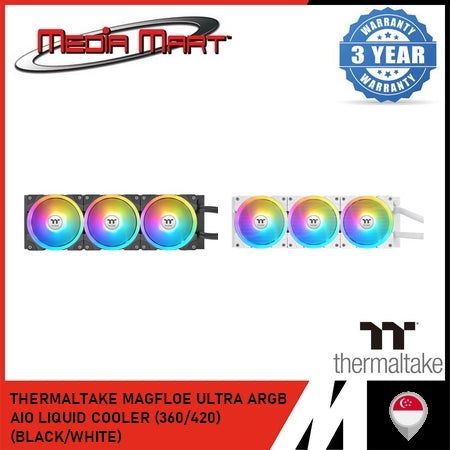

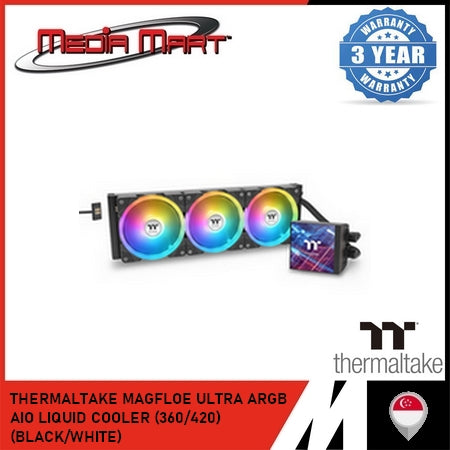

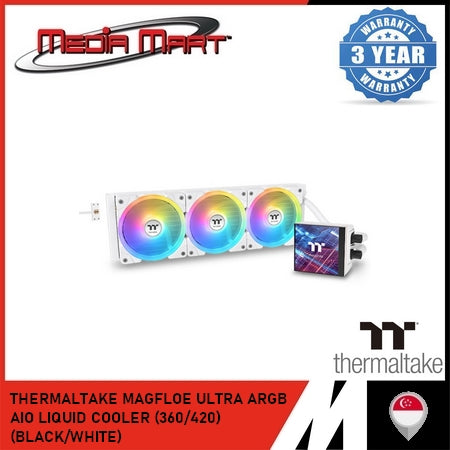

THERMALTAKE MAGFLOE ULTRA ARGB AIO LIQUID COOLER (360/420) (BLACK/SNOW)

420

Specifications

• Part Number: CL-W451-PL14SW-A

Pump:

• Motor Speed: PWM 1500–3300 RPM

• Rated Voltage: 12V

• Rated Current: 0.43A

• Power Input: 5.16W

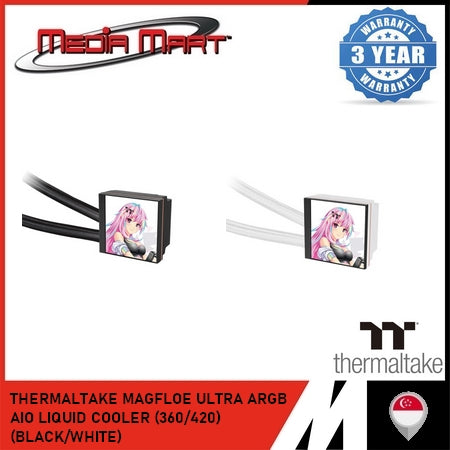

CPU Display:

• Display Type: 3.95” TFT-LCD

• Resolution: 480 x 480 (RGB)

• Rated Voltage: 5V

• Rated Current: 0.26A

• Power Input: 1.3W

• Interface: Micro USB to USB (9-pin)

• System Compatibility: Windows 10 / 11

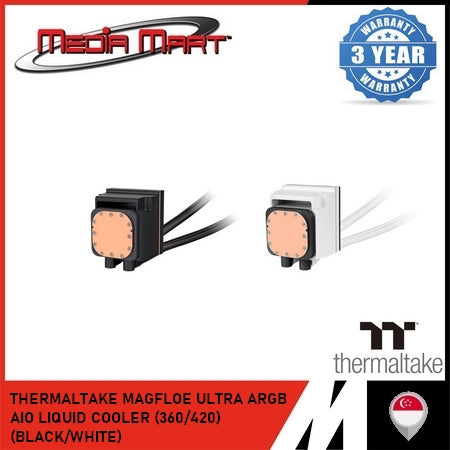

Water Block:

• Material: Copper

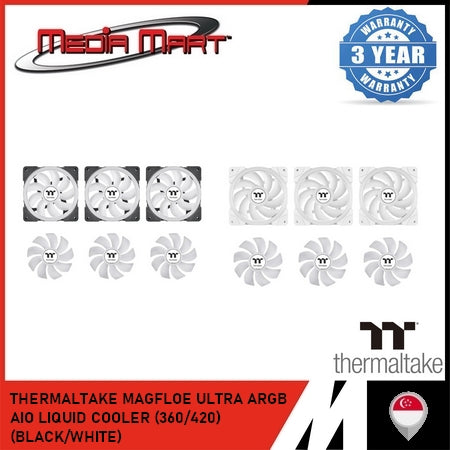

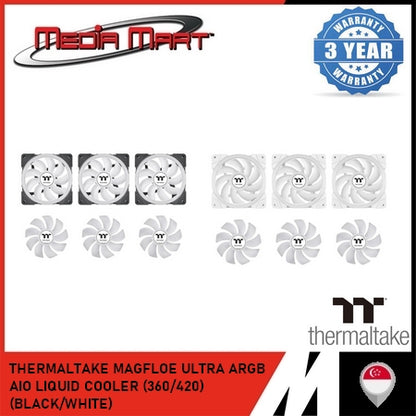

Fan:

• Dimensions: 140 x 140 x 25 mm

• Fan Speed: PWM 500–2000 RPM

• Rated Voltage: 12V / 5V

• Rated Current: 0.32A & 0.72A (per fan)

• Power Input: 3.84W & 3.6W (per fan)

• Airflow:

  • Standard Blade: 81.6 CFM

  • Reverse Blade: 79.3 CFM

• Static Pressure:

  • Standard Blade: 3.17 mm-H₂O

  • Reverse Blade: 2.73 mm-H₂O

• Noise Level:

  • Standard Blade: 34.5 dB-A

  • Reverse Blade: 38.8 dB-A

Tubing:

• Length: 460 mm

• Material: Rubber

Radiator:

• Dimensions: 456 x 139 x 27 mm

• Material: Aluminum

Compatibility:

• Intel Sockets: LGA 2066, 2011-3, 2011, 1851, 1700, 1200, 1156, 1155, 1151, 1150

• AMD Sockets: AM5, AM4, AM3+, AM3, AM2+, AM2, FM2, FM1

TDP: 360W

360

Specifications

• Part Number: CL-W432-PL12SW-A

Pump:

• Motor Speed: PWM 1500–3300 RPM

• Rated Voltage: 12V

• Rated Current: 0.43A

• Power Input: 5.16W

CPU Display:

• Display Type: 3.95” TFT-LCD

• Resolution: 480 x 480 (RGB)

• Rated Voltage: 5V

• Rated Current: 0.26A

• Power Input: 1.3W

• Interface: Micro USB to USB (9-pin)

• System Compatibility: Windows 10 / 11

Water Block:

• Material: Copper

Fan:

• Dimensions: 120 x 120 x 25 mm

• Fan Speed: PWM 500–2000 RPM

• Rated Voltage: 12V / 5V

• Rated Current: 0.27A & 0.72A (per fan)

• Power Input: 3.24W & 3.6W (per fan)

• Airflow:

  • Standard Blade: 57.11 CFM

  • Reverse Blade: 56.26 CFM

• Static Pressure:

  • Standard Blade: 2.39 mm-H₂O

  • Reverse Blade: 2.02 mm-H₂O

• Noise Level:

  • Standard Blade: 30.6 dB-A

  • Reverse Blade: 32.5 dB-A

Tubing:

• Length: 460 mm

• Material: Rubber

Radiator:

• Dimensions: 396 x 120 x 27 mm

• Material: Aluminum

Compatibility:

• Intel Sockets: LGA 2066, 2011-3, 2011, 1851, 1700, 1200, 1156, 1155, 1151, 1150

• AMD Sockets: AM5, AM4, AM3+, AM3, AM2+, AM2, FM2, FM1

TDP: 355W
