SUPERFLOWER LEADEX PLATINUM 2000W POWER SUPPLY PCI-E 5.1

General Information

• Model No.: SF-2000F14HP

• Wattage: 2000W

• Efficiency: 80 PLUS® Platinum

  • 92% @ 20% Load

  • 94% @ 50% Load

  • 90% @ 100% Load

• Intel Design Guide: ATX 12V v2.92

• AC Input / Frequency: 230V~, 50/60Hz (Single Voltage)

• Temperature Test: Passed 50°C Hot Testing

Cooling

• Fan Size: 140mm Two-Ball Bearing Fan

Protection Features

• OVP – Over Voltage Protection

• OCP – Over Current Protection

• OPP – Over Power Protection

• SCP – Short Circuit Protection

• UVP – Under Voltage Protection

• OTP – Over Temperature Protection

• LVP – Low Voltage Protection

• NLO – No Load Operation

• SIP – Surge & Inrush Protection

Certifications

• TÜV, CB, CE, EAC, RoHS, KCC, CQC

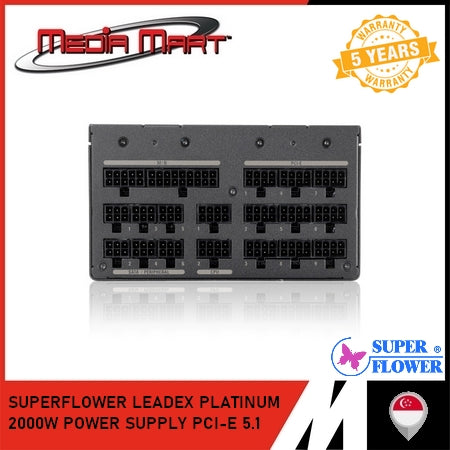

Modular Cabling & Connectors

• 20+4 Pin (MB): 1 × 600mm

• 8(4+4) Pin CPU: 2 × 750mm

• PCIe 6+2 Pin: 4 × 750mm

• SLI (2 × PCIe 6+2 Pin): 5 × (750 + 150mm)

• 4 SATA: 4 × (550 + 100 + 100 + 100mm)

• 3 Molex: 2 × (550 + 100 + 100mm)

• Molex to FDD Adapter: 2 × 100mm

Physical Dimensions

• Size: 220mm (L) × 150mm (W) × 86mm (H)
