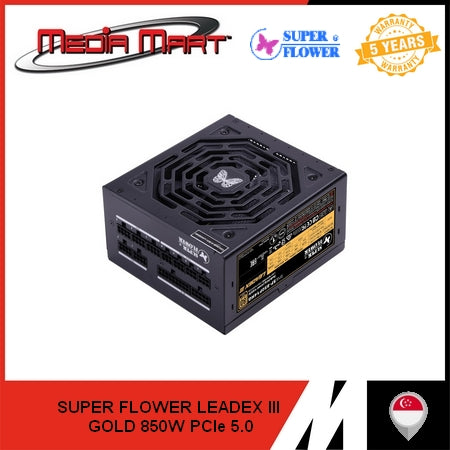

SUPERFLOWER LEADEX III GOLD 850W (ATX 3.1 + GEN5.1) FULLY MODULAR POWER SUPPLY UNIT

General Information

• Model No.: SF-850F14HG

• Wattage: 850W

• Efficiency: 80 PLUS® Gold

  • 87% @ 20% Load

  • 90% @ 50% Load

  • 87% @ 100% Load

• Intel Design Guide: ATX 2.52 / EPS 2.92

• AC Input Voltage / Frequency: 100V–240V~, 10A, 50/60Hz (Full Range, Active PFC)

• Temperature Tested: Passed 50°C hot testing

DC Output Ratings

Cooling

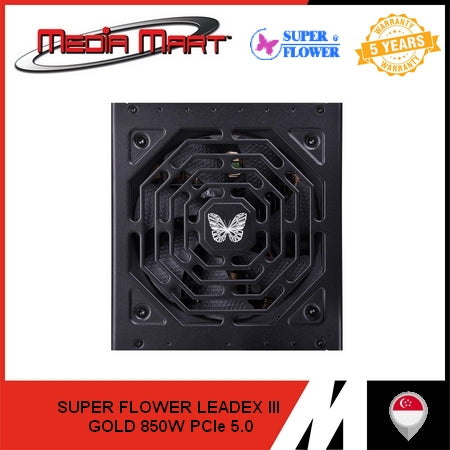

• Fan Size: 130mm F.D.B (Fluid Dynamic Bearing) Fan

• Fan Control: 3-way thermal control with ECO Mode

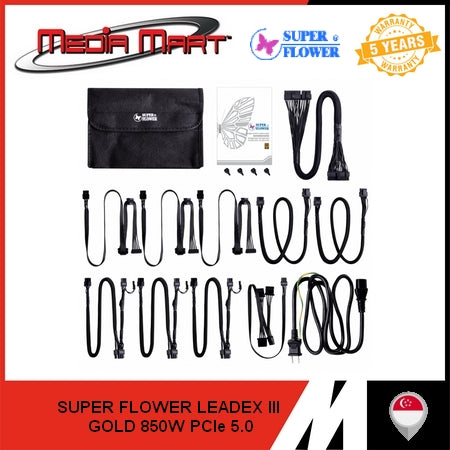

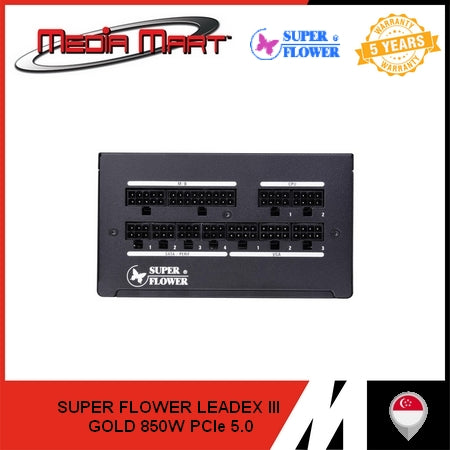

Modular Cabling & Connectors

• Fully Modular: Yes

• 20+4 Pin (MB): 1 × 600mm

• CPU 8(4+4) Pin: 2 × 700mm

• PCIe 6+2 Pin: 3 × (550 + 150mm)

• PCIe 16-Pin (12VHPWR): 1 × 700mm

• SATA: 3 × (550 + 120 + 120mm)

• Molex: 1 × (550 + 100 + 100 + 100mm)

Protection Features

• Over Voltage Protection (OVP)

• Over Current Protection (OCP)

• Dual Over Power Protection (OPP)

• Short Circuit Protection (SCP)

• Under Voltage Protection (UVP)

• Over Temperature Protection (OTP)

• No Load Operation (NLO)

• Surge & Inrush Protection (SIP)

Build Quality & Certifications

• Capacitors:

  • 100% Japanese 105°C (Main Board & Backpanel)

  • 100% Taiwan A Grade 105°C (Backpanel)

• Compliance:

  • RoHS / WEEE / Energy Star / EuP

  • Safety: cTÜVus, TÜV, CB, CE, FCC, RCM, BSMI, KCC, CCC

• MTBF: > 100,000 hours @ 25°C

• Switch Durability: > 2,000 times On/Off test

• Dimensions: 160mm (L) × 150mm (W) × 86mm (H)

Compatibility

• Motherboards: ATX / BTX, Intel & AMD Multi-Core CPUs

• GPU Support: NVIDIA® SLI™, AMD CrossFireX™
