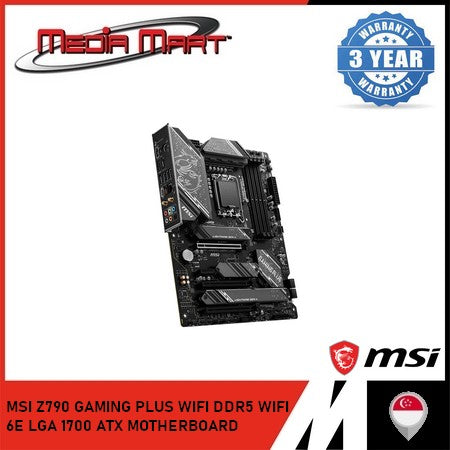

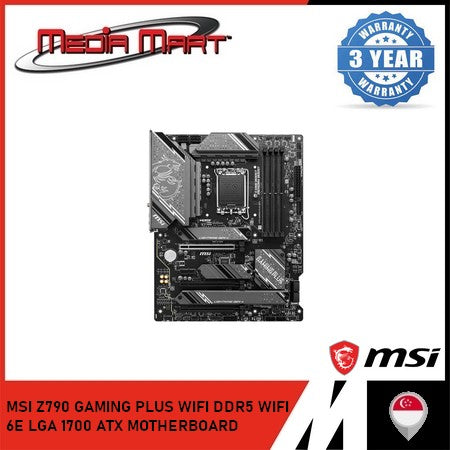

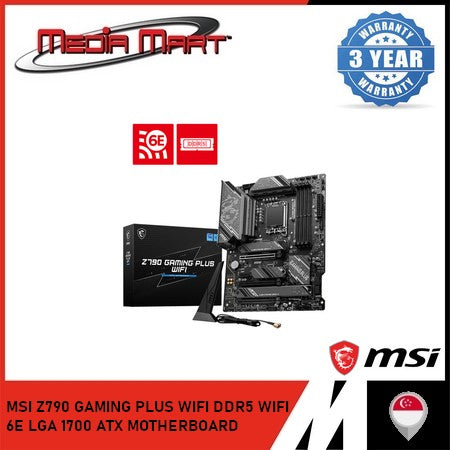

MSI Z790 GAMING PLUS WIFI DDR5 WIFI 6E LGA 1700 ATX MOTHERBOARD

Intel Z790 (ATX) Motherboard Specifications – Updated Version

🛠 Chipset & CPU Support:

• Chipset: Intel Z790

• CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold and Celeron® Processors

• Socket: LGA 1700

💾 Memory Specifications:

• Memory Slots: 4x DDR5, up to 256GB

• Supported Speeds:

  • Overclocked: 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 MT/s

  • JEDEC: 5600 / 5400 / 5200 / 5000 / 4800 MT/s

• Overclocking Frequency:

  • 1DPC 1R: Up to 7200+ MHz

  • 1DPC 2R: Up to 6600+ MHz

  • 2DPC 1R: Up to 6400+ MHz

  • 2DPC 2R: Up to 5600+ MHz

Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered memory.

🎮 Graphics & Display:

• 1x HDMI™ 2.1: 4K @ 60Hz

• 1x DisplayPort 1.4: 4K @ 60Hz

  • Available only on processors featuring integrated graphics.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16): From CPU – PCIe 5.0 x16

• PCI_E2 (Gen 3, x1): From Chipset – PCIe 3.0 x1

• PCI_E3 (Gen 4, x4): From Chipset – PCIe 4.0 x4

• PCI_E4 (Gen 3, x1): From Chipset – PCIe 3.0 x1

🎧 Audio:

• Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

💽 Storage Support:

• M.2 Slots (4x):

  • M.2_1 (CPU): PCIe 4.0 x4 – 22110/2280/2260/2242 devices

  • M.2_2 (Chipset): PCIe 4.0 x4 – 2280/2260/2242 devices

  • M.2_3 (Chipset): PCIe 4.0 x4 / SATA – 2280/2260/2242 devices

  • M.2_4 (Chipset): PCIe 4.0 x4 / SATA – 2280/2260/2242 devices

• SATA Ports (6x): 6Gbps

RAID Support:

• SATA: RAID 0, 1, 5, 10

• M.2 NVMe: RAID 0, 1, 5, 10

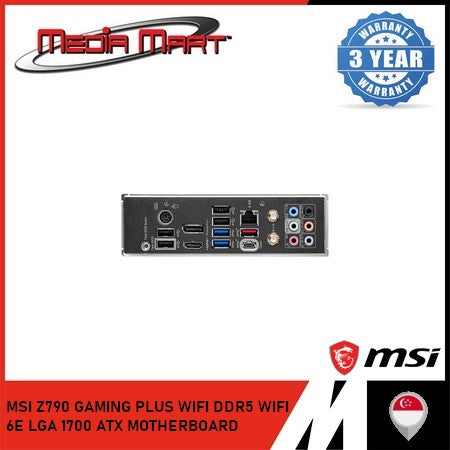

⚡ USB Connectivity:

• USB Ports:

  • 4x USB 2.0 (Rear)

  • 4x USB 2.0 (Front)

  • 2x USB 5Gbps Type-A (Rear)

  • 4x USB 5Gbps Type-A (Front)

  • 1x USB 10Gbps Type-A (Rear)

  • 1x USB 10Gbps Type-C (Front)

  • 1x USB 20Gbps Type-C (Rear)

🌐 Networking:

• LAN: Intel® 2.5Gbps LAN

• Wireless LAN: Intel® Wi-Fi 6E (M.2 Key-E slot)

  • 2.4GHz / 5GHz / 6GHz, up to 2.4Gbps

  • Bluetooth® 5.3

🔧 Internal Connectors:

• Power Connectors: 1x ATX_PWR, 2x CPU_PWR

• Cooling: 1x CPU Fan, 1x Pump Fan, 6x System Fan

• Lighting:

  • 2x ARGB V2 headers

  • 2x RGB headers

📦 Package Dimensions & Form Factor:

• Form Factor: ATX (243.84mm x 304.8mm)
