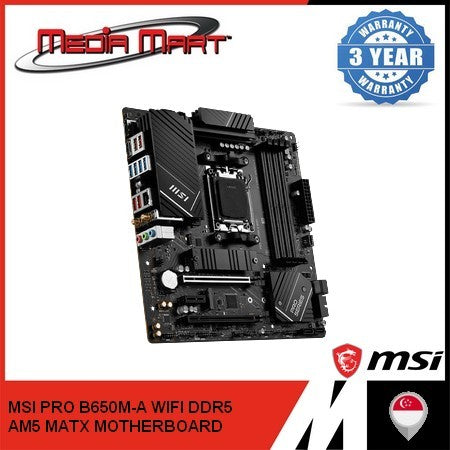

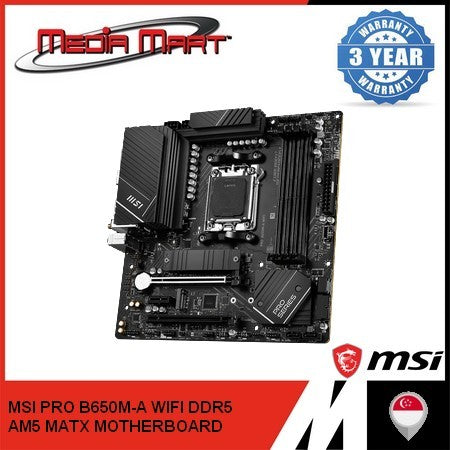

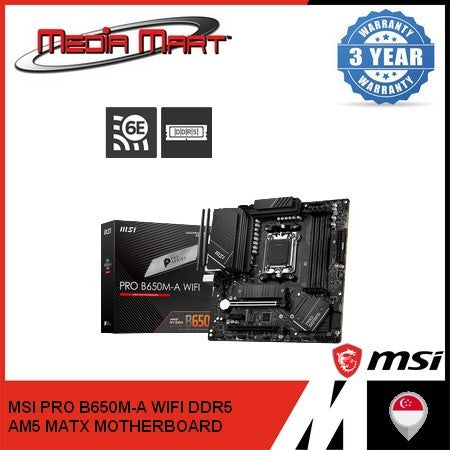

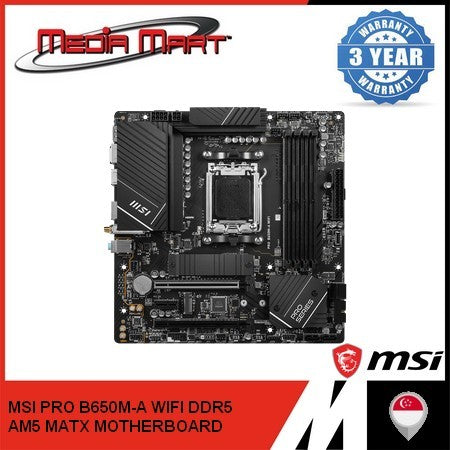

MSI PRO B650M-A WIFI DDR5 AMD AM5 M-ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD B650

• Memory:

  • 4× DDR5 DIMM slots

  • Supports up to 128GB

  • Memory speeds up to 7200+ MHz (OC)

• Expansion Slots:

  • 1× PCIe 4.0 x16

  • 1× PCIe 4.0 x16 (x4 mode)

  • 1× PCIe 3.0 x1

• Storage:

  • 2× M.2 slots (PCIe 4.0 x4)

  • 4× SATA 6Gb/s ports

  • Supports RAID 0, 1, and 10 for SATA; RAID 0 and 1 for M.2 NVMe

• Networking:

  • 2.5G LAN (Realtek RTL8125BG)

  • Wi-Fi 6E (802.11ax)

  • Bluetooth 5.2

• Audio: Realtek ALC897 7.1-Channel High Definition Audio

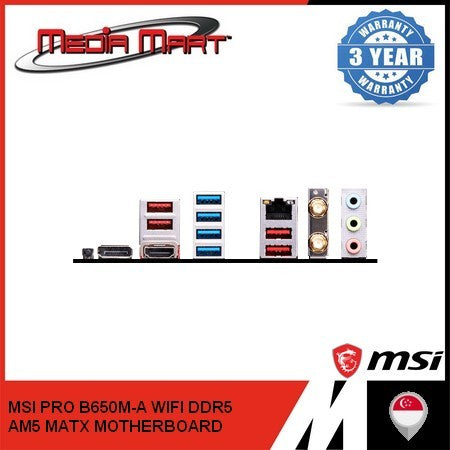

• USB Ports:

  • Rear:

    • 4× USB 3.2 Gen 2 Type-A (10 Gbps)

    • 4× USB 3.2 Gen 1 Type-A (5 Gbps)

  • Front:

    • 1× USB 3.2 Gen 2 Type-C header

    • 2× USB 3.2 Gen 1 headers (supporting 4 ports)

    • 2× USB 2.0 headers (supporting 4 ports)

• Display Outputs: 1× HDMI 2.1, 1× DisplayPort 1.4 (requires CPU with integrated graphics)

• Power Design: 8+2+1 phase VRM

• Cooling Features:

  • Extended Heatsink Design

  • M.2 Shield Frozr for M.2 SSDs

• Form Factor: Micro-ATX (243.84mm x 243.84mm)
