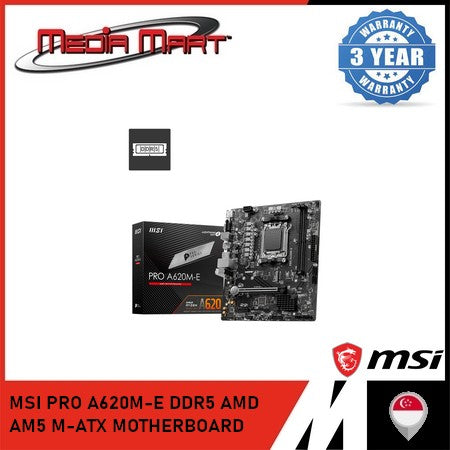

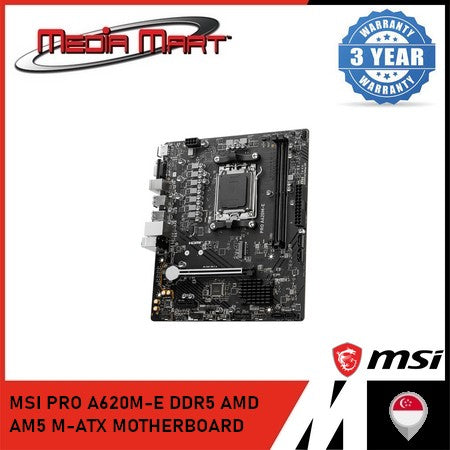

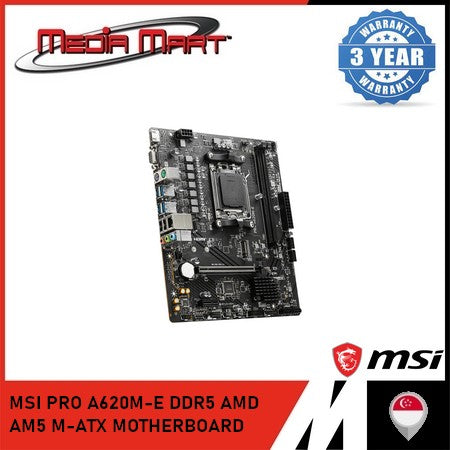

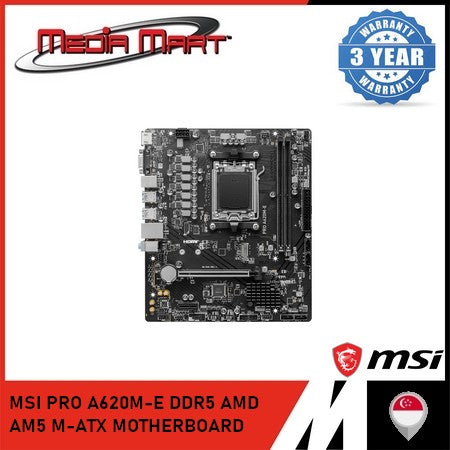

MSI PRO A620M-E DDR5 AMD AM5 M-ATX MOTHERBOARD

🛠 Chipset & CPU Support:

Chipset: AMD A620

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Socket: AM5

💾 Memory Specifications:

Memory Slots: 2x DDR5 UDIMM, up to 128GB

Supported Speeds:

Overclocked: 6800+ / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 MT/s

JEDEC: 4800 MT/s

Max. Overclocking Frequency:

1DPC 1R: Up to 6800+ MHz

1DPC 2R: Up to 6000+ MHz

Supports Dual-Channel, Non-ECC, Un-buffered memory, AMD EXPO

🎮 Graphics & Display:

1x HDMI™ 2.1: Up to 4K @ 60Hz

1x VGA: Max resolution 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz

*Available only on processors featuring integrated graphics

🔌 Expansion Slots:

1x PCI-E x16 slot

• PCIe 4.0 x16 (For Ryzen 9000/7000)

• PCIe 4.0 x8 (For Ryzen 8700/8600/8400)

• PCIe 4.0 x4 (For Ryzen 8500/8300)

1x PCI-E x1 slot (PCIe 3.0 x1, from Chipset)

🎧 Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

💽 Storage Support:

M.2 Slots:

1x M.2_1 (From CPU): PCIe 4.0 x4, supports 2280/2260

SATA Ports (4x): 6Gbps

RAID Support:

SATA: RAID 0, 1, 10

⚡ USB Connectivity:

USB Ports:

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type-A (Rear)

2x USB 5Gbps Type-A (Front)

🌐 Networking:

LAN: Realtek® RTL8111H Gigabit LAN

🔧 Internal Connectors:

Power Connectors:

1x ATX_PWR, 1x CPU_PWR

Cooling: 1x CPU Fan, 2x System Fans

Front Panel: 2x JFP

Others:

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x COM Port (JCOM)

1x RGB LED Connector (JRGB)

1x TPM Header (Supports TPM 2.0)

4x USB 2.0

2x USB 5Gbps Type-A

🔆 LED Feature:

4x EZ Debug LED

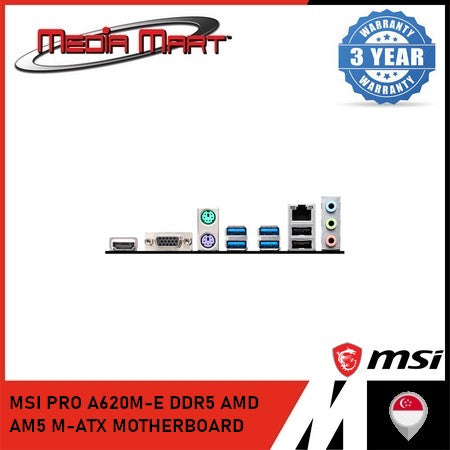

🔌 Back Panel Ports:

1x HDMI™

1x VGA

1x PS/2 Keyboard/Mouse Combo

4x USB 5Gbps Type-A

2x USB 2.0

1x LAN Port

3x Audio Jacks

🖥 Operating System:

Support for Windows® 11 64-bit, Windows® 10 64-bit

📦 Package Dimensions & Form Factor:

Form Factor: mATX (211mm x 243.84mm)
