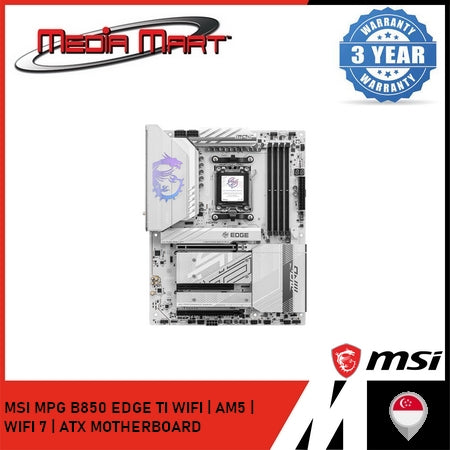

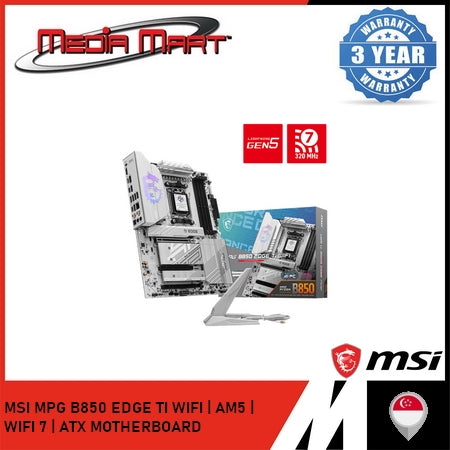

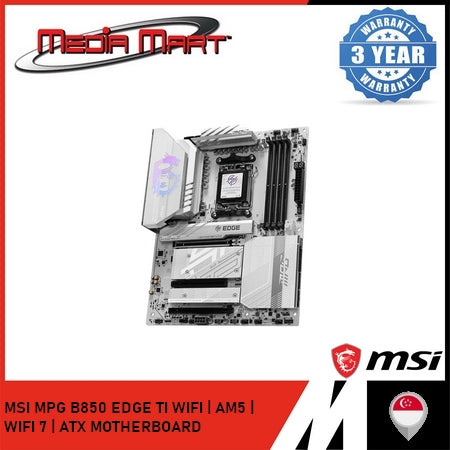

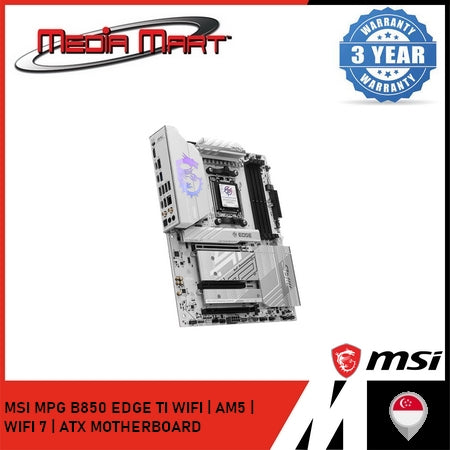

MSI MPG B850 EDGE TI WIFI | AMD AM5 | WIFI 7 | ATX MOTHERBOARD

🛠 Chipset & CPU Support:

• Chipset: AMD B850

• CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

• Socket: AM5

💾 Memory Specifications:

• Memory Slots: 4x DDR5 UDIMM, up to 256GB

• Supported Speeds:

  • Overclocked: 8400 - 5600 MT/s

  • JEDEC: 5600 - 4800 MT/s

• Overclocking Frequency (Ryzen™ 9000 Series):

  • 1DPC 1R: Up to 8400+ MT/s

  • 1DPC 2R: Up to 6400+ MT/s

  • 2DPC 1R: Up to 6400+ MT/s

  • 2DPC 2R: Up to 4800+ MT/s

Supports AMD EXPO™, Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM (Clock Driver bypass mode).

🎮 Graphics & Display:

• 1x HDMI™: HDMI 2.1 FRL port, 8K @ 60Hz

  • Available only on processors with integrated graphics.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16): From CPU – PCIe 5.0 x16

• PCI_E2 (Gen 3, x1): From Chipset – PCIe 3.0 x1

• PCI_E3 (Gen 4, x4): From Chipset – PCIe 4.0 x4

PCI_E1 Slot Configurations:

• Ryzen™ 9000/7000 Series: PCIe 5.0 x16

• Ryzen™ 8700/8600/8400 Series: PCIe 4.0 x8

• Ryzen™ 8500/8300 Series: PCIe 4.0 x4

Slot Considerations:

• PCI_E3 will run at x2 speed when a device is installed in the M2_3 slot.

🎧 Audio:

• Realtek® ALC4080 USB High-Performance Codec

• 7.1-Channel High-Resolution Audio

• S/PDIF Out, up to 32-Bit/384 kHz playback on front panel

💽 Storage Support:

• M.2 Slots (4x):

  • M.2_1 (CPU): PCIe 5.0 x4 – 22110/2280

  • M.2_2 (CPU): PCIe 5.0 x4 – 2280/2260

  • M.2_3 (Chipset): PCIe 4.0 x2 – 2280/2260

  • M.2_4 (Chipset): PCIe 4.0 x4 – 2280/2260

• SATA Ports (4x): 6Gbps

M.2_1 Slot Configurations:

• Ryzen™ 9000/7000 Series: PCIe 5.0 x4

• Ryzen™ 8000 Series: PCIe 4.0 x4

M.2_2 Slot Configurations:

• Ryzen™ 9000/7000 Series: PCIe 5.0 x4

• Ryzen™ 8700/8600/8400 Series: PCIe 4.0 x4

• Ryzen™ 8500/8300 Series: PCIe 4.0 x2

RAID Support:

• NVMe: RAID 0, 1, 10 (RAID 10 only supported by Ryzen™ 9000/7000 Series)

• SATA: No RAID support

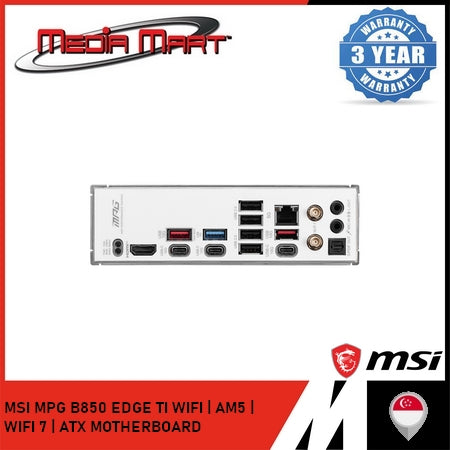

⚡ USB Connectivity:

• USB Ports:

  • 4x USB 2.0 (Rear)

  • 4x USB 2.0 (Front)

  • 1x USB 5Gbps Type-A (Rear)

  • 4x USB 5Gbps Type-A (Front)

  • 2x USB 10Gbps Type-A (Rear)

  • 3x USB 10Gbps Type-C (Rear)

  • 1x USB 20Gbps Type-C (Front)

🌐 Networking:

• LAN: Realtek® 8126 5G LAN

• Wireless LAN: Wi-Fi 7 Solution

  • 2.4GHz / 5GHz / 6GHz (320MHz), up to 5.8Gbps

  • Bluetooth® 5.4, MLO, 4KQAM

🔧 Internal Connectors:

• Power Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR (8-pin)

• Cooling: 1x CPU Fan, 1x Combo Fan (Pump/System Fan), 6x System Fans

• Miscellaneous:

  • 1x Tuning Controller Connector (JAF_2)

  • 3x Addressable V2 RGB LED connector (JARGB_V2)

  • 1x RGB LED connector (JRGB)

  • 1x TPM pin header (TPM 2.0 Support)

  • 4x EZ Debug LED

  • 1x EZ Digit Debug LED

  • 1x EZ Memory Detection LED

📦 Package Dimensions & Form Factor:

• Form Factor: ATX (304.8mm x 243.84mm)
