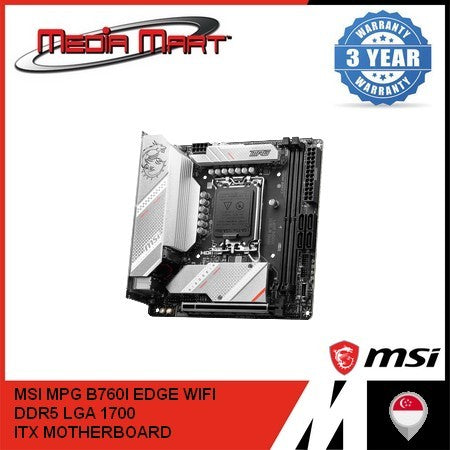

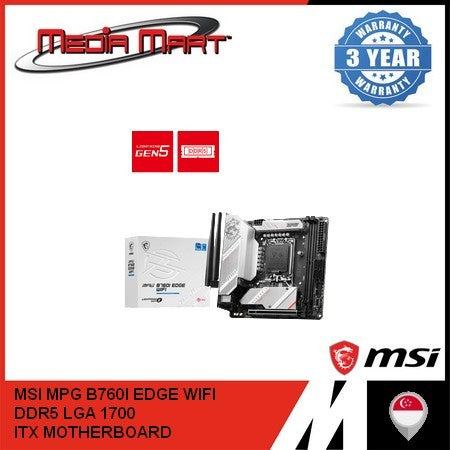

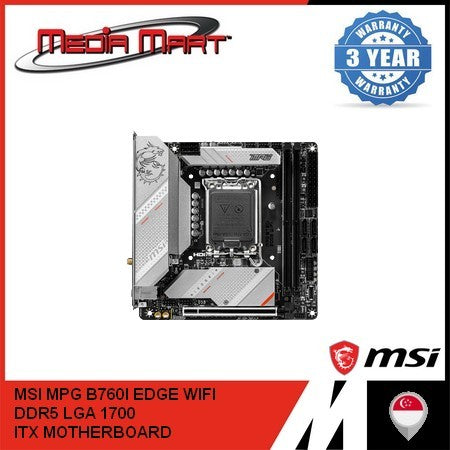

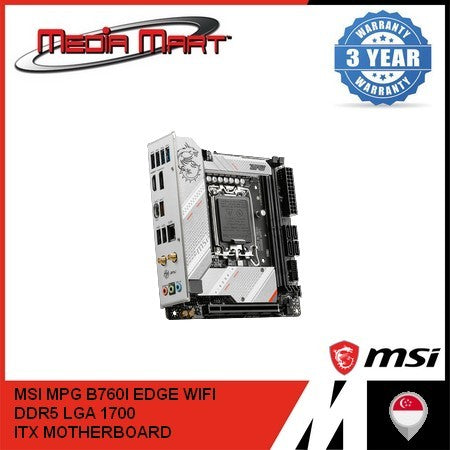

MSI MPG B760I EDGE WIFI DDR5 ITX MOTHERBOARD

🛠 Chipset & CPU Support:

• Chipset: Intel B760

• CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold and Celeron® Processors

• Socket: LGA 1700

💾 Memory Specifications:

• Memory Slots: 2x DDR5, up to 128GB

• Supported Speeds:

  • Overclocked: 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 MT/s

  • JEDEC: 5600 / 5400 / 5200 / 5000 / 4800 MT/s

• Overclocking Frequency:

  • 1DPC 1R: Up to 7200+ MHz

  • 1DPC 2R: Up to 6600+ MHz

Supports Dual-Channel, Non-ECC, Un-buffered memory, and Intel® XMP.

🎮 Graphics & Display:

• 1x HDMI™ 2.1: 4K @ 60Hz

• 1x DisplayPort 1.4: 8K @ 60Hz

  • Available only on processors featuring integrated graphics.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16): From CPU – PCIe 5.0 x16

🎧 Audio:

• Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

💽 Storage Support:

• M.2 Slots (2x):

  • M.2_1 (CPU): PCIe 4.0 x4 – 2280 devices

  • M.2_2 (Chipset): PCIe 4.0 x4 / SATA – 2280 devices

• SATA Ports (4x): 6Gbps

RAID Support:

• SATA: RAID 0, 1, 5, 10

⚡ USB Connectivity:

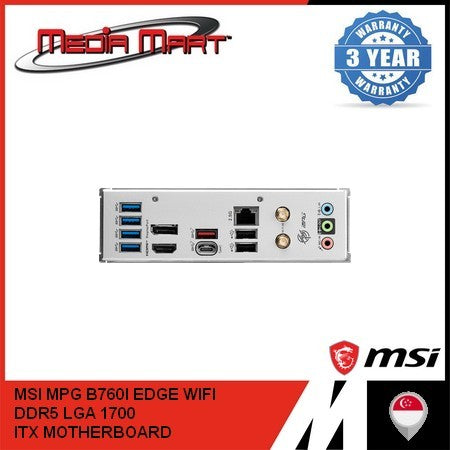

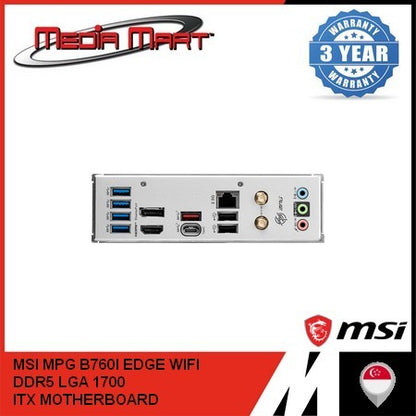

• USB Ports:

  • 2x USB 2.0 (Rear)

  • 2x USB 2.0 (Front)

  • 4x USB 5Gbps Type-A (Rear)

  • 2x USB 5Gbps Type-A (Front)

  • 1x USB 10Gbps Type-A (Rear)

  • 1x USB 10Gbps Type-C (Rear)

  • 1x USB 10Gbps Type-C (Front)

🌐 Networking:

• LAN: Realtek® RTL8125BG 2.5Gbps LAN

• Wireless LAN: Intel® Wi-Fi 6E (M.2 Key-E slot)

  • 2.4GHz / 5GHz / 6GHz, up to 2.4Gbps

  • Bluetooth® 5.3

🔧 Internal Connectors:

• Power Connectors: 1x ATX, 1x CPU_PWR

• Cooling: 1x CPU Fan, 1x Pump Fan, 1x System Fan

• Lighting:

  • 1x ARGB V2 header

  • 1x RGB header

📦 Package Dimensions & Form Factor:

• Form Factor: Mini-ITX (170mm x 170mm)
