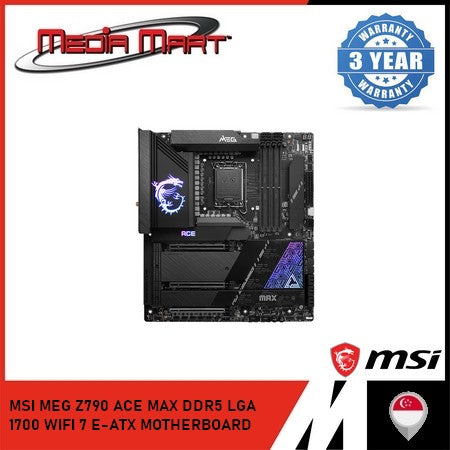

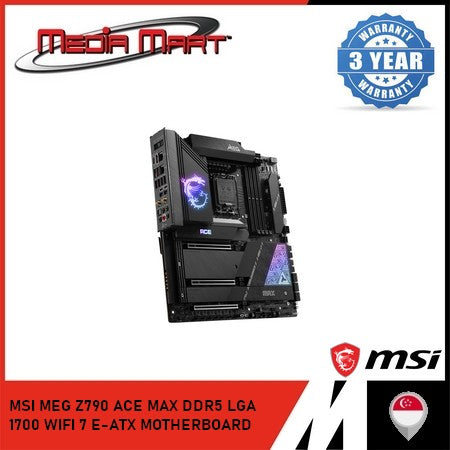

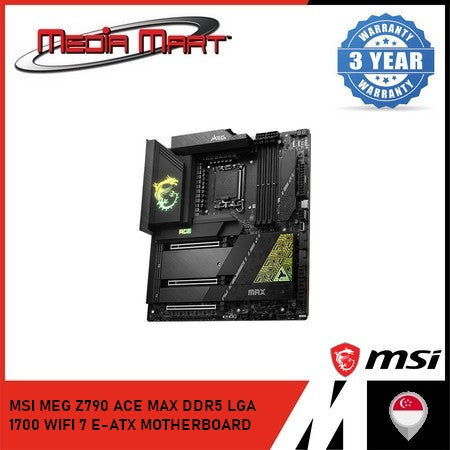

MSI MEG Z790 ACE MAX DDR5 LGA 1700 WIFI 7 E-ATX MOTHERBOARD

🛠 Chipset & CPU Support:

• Chipset: Intel Z790

• CPU Support: Intel® Core™ 14th / 13th / 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

• Socket: LGA 1700

💾 Memory Specifications:

• Memory Slots: 4x DDR5 UDIMM, up to 256GB

• Supported Speeds:

  • Overclocked: 7800+ / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 MHz

  • JEDEC: 5600 / 5400 / 5200 / 5000 / 4800 MHz

• Overclocking Frequency:

  • 1DPC 1R: Up to 7800+ MHz

  • 1DPC 2R: Up to 6800+ MHz

  • 2DPC 1R: Up to 6400+ MHz

  • 2DPC 2R: Up to 6000+ MHz

Supports Intel® XMP 3.0, Non-ECC, Un-buffered memory

🎮 Graphics & Display:

• 1x Type-C DisplayPort: 4K @ 60Hz*

• *Available only on CPUs with integrated graphics.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16): From CPU

• PCI_E2 (Gen 5, x8): From CPU (shares bandwidth with PCI_E1 and M2_4)

• PCI_E3 (Gen 4, x4): From Chipset

🎧 Audio:

• Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

• 7.1-Channel USB High Performance Audio

• Supports S/PDIF output

• Up to 32-Bit / 384 kHz playback on the front panel

💽 Storage Support:

• M.2 Slots (5x):

  • M.2_1: PCIe 4.0 x4 (CPU) - 22110 / 2280 / 2260

  • M.2_2: PCIe 4.0 x4 (Chipset) - 2280 / 2260

  • M.2_3: PCIe 4.0 x4 / SATA (Chipset) - 2280 / 2260

  • M.2_4: PCIe 5.0 x4 (CPU) - 2280

  • M.2_5: PCIe 4.0 x4 / SATA (Chipset) - 22110 / 2280 / 2260

• SATA Ports (6x): 6Gbps

Important Notes:

• M2_4 slot will be disabled when PCI_E2 slot or M2_4 slot is in use.

• SATA7 will be disabled if an M.2 SATA SSD is installed in the M2_5 slot.

🔧 Multi-GPU & RAID Support:

• AMD Multi-GPU Support

• RAID Support for SATA and M.2 NVMe: RAID 0, 1, 5, 10

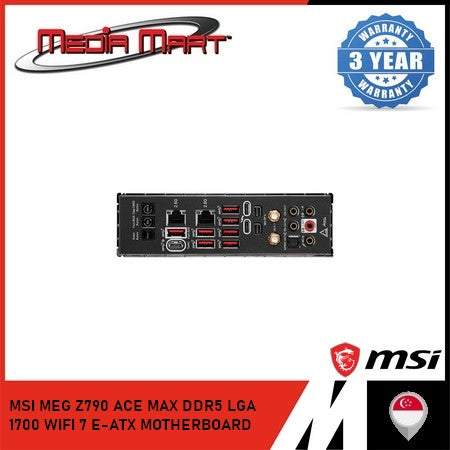

⚡ Thunderbolt & USB Connectivity:

• 2x Thunderbolt™ 4 (Type-C, 40Gbps):

  • Supports up to 8K display (via Mini DisplayPort Input)

  • Daisy-Chain up to 3x Thunderbolt 4 / 5x Thunderbolt 3 devices

• USB Ports:

  • 4x USB 2.0 (Front)

  • 4x USB 5Gbps Type-A (Front)

  • 7x USB 10Gbps Type-A (Rear)

  • 1x USB 10Gbps Type-C (Rear)

  • 2x USB 20Gbps Type-C (Front)

Power Delivery:

• Front Type-C Quick Charge Connector (PD_PWR1) - Supports 60W PD fast charging

🌐 Networking & Wireless:

• LAN: 2x Intel® 2.5Gbps LAN

• Wi-Fi / Bluetooth: Wi-Fi 7, Bluetooth 5.4

🔧 Internal Connectors:

• Power Connectors: 1x ATX, 2x CPU_PWR, 1x PD_PWR1 (60W Quick Charge)

• Cooling: 1x CPU Fan, 2x Pump Fan, 5x System Fan, 1x Water Flow Connector

• Sensors & Control:

  • 2x Thermal Sensor connectors

  • 1x Slow Mode Booting Jumper

  • 1x V-check point

• RGB & Lighting:

  • 3x ARGB V2 headers

  • 1x RGB header

• Debugging:

  • 1x 2-Digit Debug Code LED

  • 1x EZ LED Control switch

  • 4x EZ Debug LED

📦 Package Dimensions & Form Factor:

• Form Factor: E-ATX (277mm x 304.8mm)
