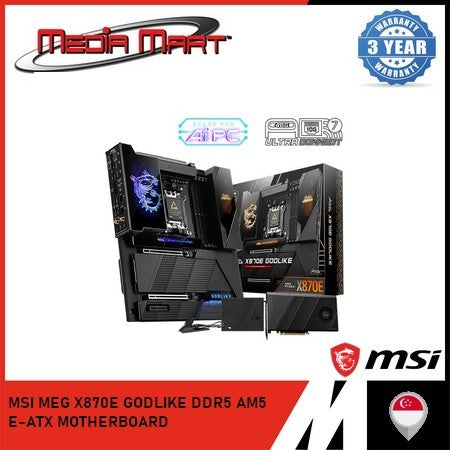

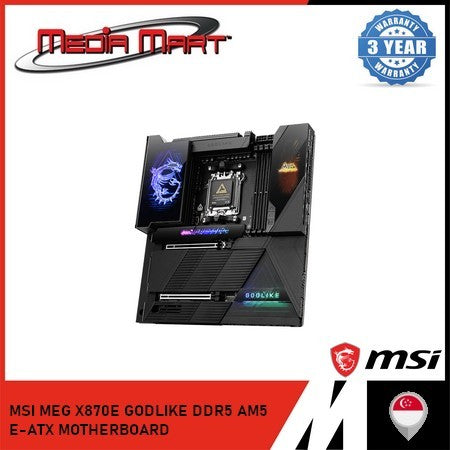

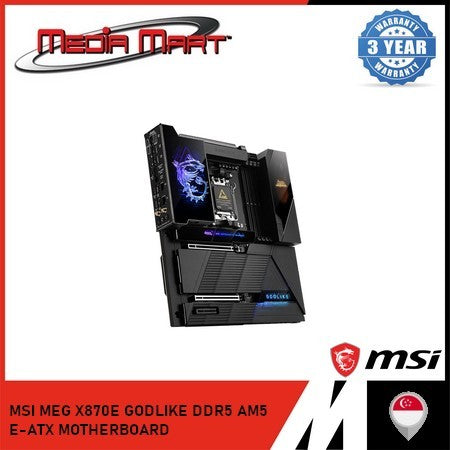

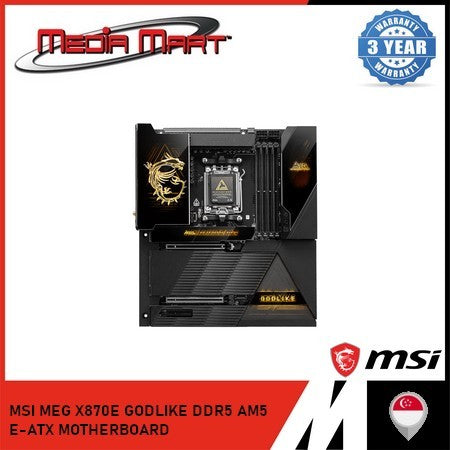

MSI MEG X870E GODLIKE DDR5 AM5 E-ATX MOTHERBOARD

MSI MEG X870E GODLIKE DDR5 AM5 E-ATX MOTHERBOARD

$1,598.00
$1,598.00
Sale Sold out

🛠 Chipset & CPU Support:

  • Chipset: AMD X870E

  • CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

  • Socket: AM5

💾 Memory Specifications:

  • Memory Slots: 4x DDR5 UDIMM, up to 256GB

  • Supported Speeds:

    • Overclocked: 9000 - 5600 MT/s

    • JEDEC: 5600 - 4800 MT/s

  • Overclocking Frequency (Ryzen™ 9000 Series):

    • 1DPC 1R: Up to 8400+ MT/s

    • 1DPC 2R: Up to 6400+ MT/s

    • 2DPC 1R: Up to 6400+ MT/s

    • 2DPC 2R: Up to 4800+ MT/s

Supports AMD EXPO™, Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM (Clock Driver bypass mode).

🎮 Graphics & Display:

  • 2x USB4ÂŽ Type-C (DisplayPort 1.4): 4K @ 60Hz

    • Available only on processors featuring integrated graphics.

🔌 Expansion Slots:

  • PCI_E1 (Gen 5, x16): From CPU – PCIe 5.0 x16

  • PCI_E2 (Gen 5, x8): From CPU – PCIe 5.0 x8

  • PCI_E3 (Gen 4, x4): From Chipset – PCIe 4.0 x4

PCI_E1 & PCI_E2 Slot Configurations:

  • Ryzen™ 9000/7000 Series: PCIe 5.0 x16/x0 or x8/x8

  • Ryzen™ 8700/8600/8400 Series: PCIe 4.0 x8/x0

  • Ryzen™ 8500/8300 Series: PCIe 4.0 x4/x0

🎧 Audio:

  • RealtekÂŽ ALC4082 Codec + ESS9219Q DAC

  • 7.1-Channel USB High-Performance Audio

  • S/PDIF output

  • Up to 32-Bit/384 kHz playback on front panel

💽 Storage Support:

  • M.2 Slots (7x):

    • M.2_1 (CPU): PCIe 5.0 x4 – 2280/2260

    • M.2_2 (CPU): PCIe 5.0 x4 – 2280/2260

    • M.2_3 (Chipset): PCIe 4.0 x4 – 22110/2280

    • M.2_4 (Chipset): PCIe 4.0 x2 – 2280/2260

    • M.2_5 (Chipset): PCIe 4.0 x4 – 2280/2260

    • M.2_1 (via M.2 XPANDER-Z): PCIe 5.0 x4 – 2280

    • M.2_2 (via M.2 XPANDER-Z): PCIe 5.0 x4 – 2280

  • M.2_4 shares bandwidth with PCI_E3 slot. BIOS configuration is required to switch bandwidth allocation.

  • RAID 10 for M.2 NVMe is supported only on Ryzen™ 9000/7000 Series processors.

  • SATA Ports (4x): 6Gbps

RAID Support:

  • SATA: RAID 0, 1, 10

  • NVMe: RAID 0, 1, 5, 10

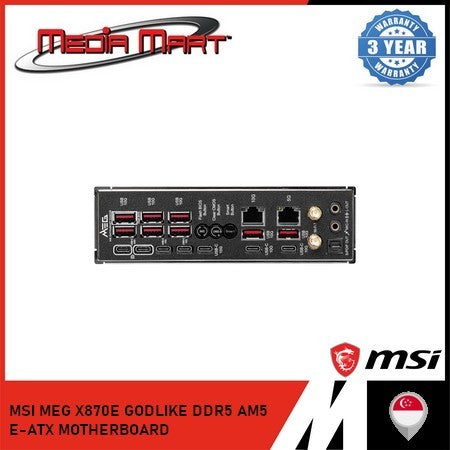

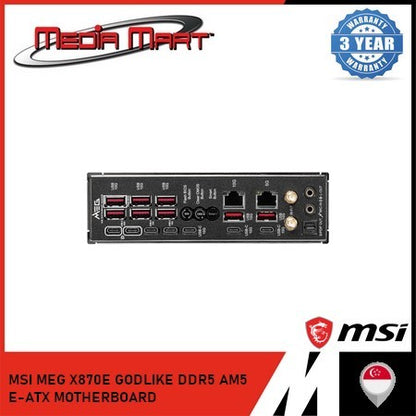

⚡ USB Connectivity:

  • USB Ports:

    • 4x USB 2.0 (Front)

    • 4x USB 5Gbps Type-A (Front)

    • 8x USB 10Gbps Type-A (Rear)

    • 5x USB 10Gbps Type-C (Rear)

    • 1x USB 10Gbps Type-C (Front)

    • 1x USB 20Gbps Type-C (Front)

    • 2x USB 40Gbps Type-C (Rear)

  • USB 40Gbps Type-C and M2_2 slot share PCIe 5.0 x4 bandwidth. Adjustments can be made in BIOS.

🌐 Networking:

  • LAN:

    • 1x MarvellÂŽ AQC113CS 10Gbps LAN

    • 1x RealtekÂŽ 8126 5Gbps LAN

  • Wireless LAN: Wi-Fi 7 Solution

    • 2.4GHz / 5GHz / 6GHz (320MHz), up to 5.8Gbps

    • BluetoothÂŽ 5.4, MLO, 4KQAM

🔧 Internal Connectors:

  • Power Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR (8-pin)

  • Cooling: 1x CPU Fan, 2x Combo Fan (Pump/ System Fan)

  • Miscellaneous:

    • 1x Front Type-C Quick Charge (PD_PWR1)

    • 2x Thermal Sensor connectors

    • 1x Tuning Controller (JDASH)

    • 1x Dynamic Dashboard III

    • 1x EZ LED Control switch

📦 Package Dimensions & Form Factor:

  • Form Factor: E-ATX (304.8mm x 277mm)
