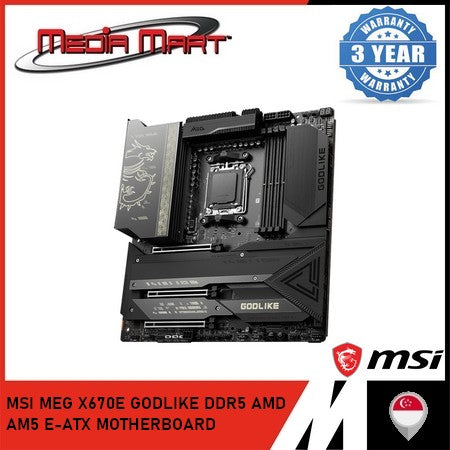

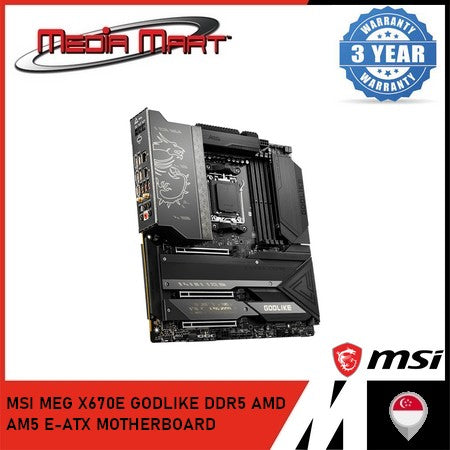

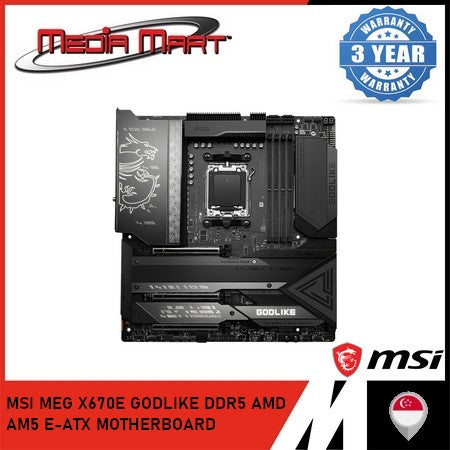

MSI MEG X670E GODLIKE DDR5 AMD AM5 E-ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD X670E

• Memory:

  • 4× DDR5 DIMM slots

  • Supports up to 192GB

  • Memory speeds up to 8000+ MHz (OC)

• Expansion Slots:

  • 3× PCIe x16 slots (PCIe 5.0 support)

• Storage:

  • 5× M.2 slots (PCIe 5.0/4.0 support)

  • 8× SATA 6Gb/s ports

  • Supports RAID 0, 1, and 10

• Networking:

  • 10G LAN (Marvell AQC113CS)

  • 2.5G LAN (Intel I225V)

  • Wi-Fi 6E (802.11ax)

  • Bluetooth 5.3

• Audio: Realtek ALC4082 Codec with ESS SABRE DAC

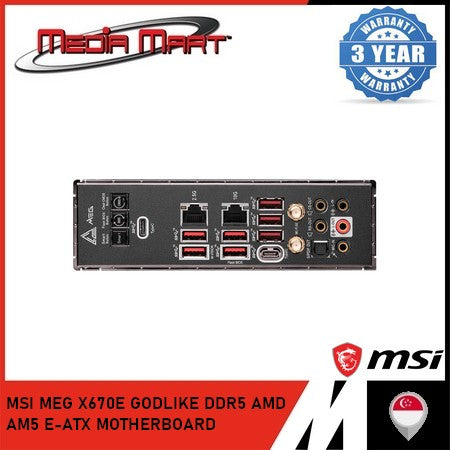

• USB Ports:

  • Rear:

    • 2× USB 3.2 Gen 2x2 Type-C

    • 7× USB 3.2 Gen 2 Type-A

    • 2× USB 3.2 Gen 1 Type-A

    • 2× USB 2.0

  • Front:

    • 1× USB 3.2 Gen 2x2 Type-C header

    • 2× USB 3.2 Gen 1 headers (supporting 4 ports)

    • 2× USB 2.0 headers (supporting 4 ports)

• Display Output: None (requires discrete GPU)

• Power Design: 24+2+1 Duet Rail Power System with 105A Smart Power Stage

• Cooling Features:

  • Wavy Fin Design with 7W/mK Thermal Pads

  • Direct-Touch Cross Heat Pipe

  • Aluminum Cover and Baseplate

• Form Factor: E-ATX
