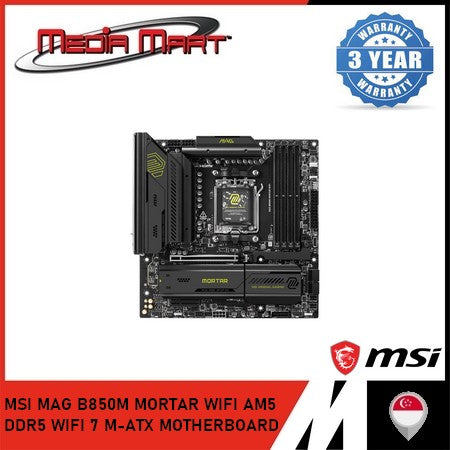

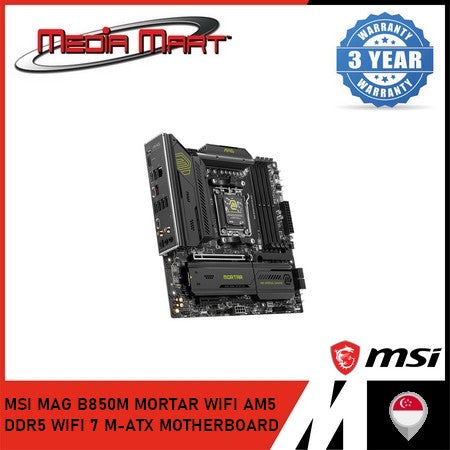

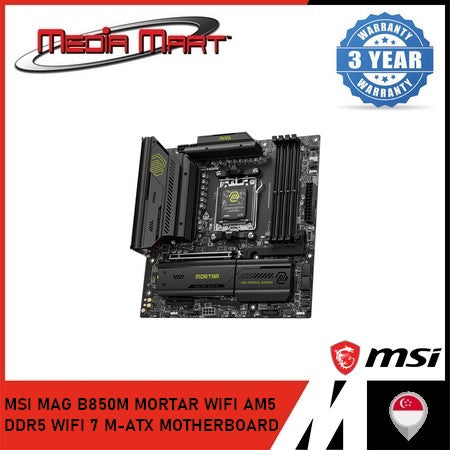

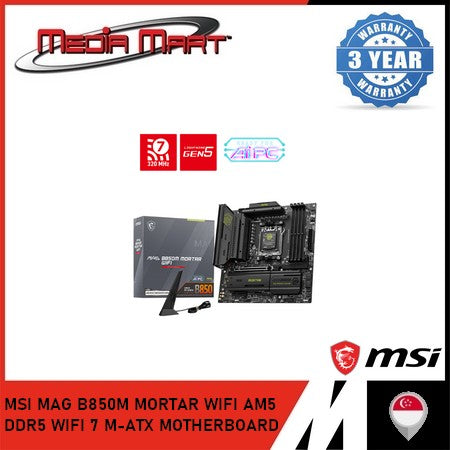

MSI MAG B850M MORTAR WIFI AM5 DDR5 WIFI 7 M-ATX MOTHERBOARD

🛠 Chipset & CPU Support:

• Chipset: AMD B850

• CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

• Socket: AM5

💾 Memory Specifications:

• Memory Slots: 4x DDR5 UDIMM, up to 256GB

• Supported Speeds:

  • Overclocked: 8200 / 6400 / 4800 MT/s

  • JEDEC: 5600 / 4800 MT/s

• Overclocking Frequency for Ryzen 9000 Series:

  • 1DPC 1R: Up to 8200 MT/s

  • 1DPC 2R: Up to 6400 MT/s

  • 2DPC 1R: Up to 6400 MT/s

  • 2DPC 2R: Up to 4800 MT/s

Supports Dual-Channel, Non-ECC, Un-buffered memory, AMD EXPO, and Memory Overclocking.

🎮 Graphics & Display:

• 1x HDMI™ 2.1 FRL: 8K @ 60Hz

  • Available only on processors featuring integrated graphics.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16):

  • PCIe 5.0 x16 (For Ryzen 9000/7000)

  • PCIe 4.0 x8 (For Ryzen 8700/8600/8400)

  • PCIe 4.0 x4 (For Ryzen 8500/8300)

• PCI_E2 (Gen 4, x4): From Chipset

🎧 Audio:

• Realtek® ALC4080 Codec

• 7.1-Channel USB High Performance Audio

• 32-bit / 384 kHz playback on front panel

• S/PDIF output support

💽 Storage Support:

• M.2 Slots (3x):

  • M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000)

  • M.2_2 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 / x2

  • M.2_3 (Chipset): PCIe 4.0 x2

• SATA Ports (4x): 6Gbps

RAID Support:

• SATA: RAID 0, 1, 10

• M.2 NVMe: RAID 0, 1, 5 (RAID 5 for Ryzen 9000 only)

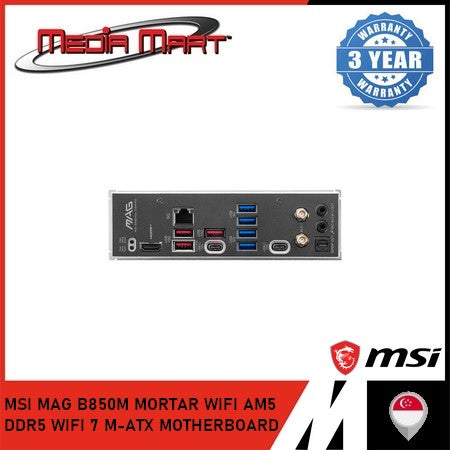

⚡ USB Connectivity:

• USB Ports:

  • 4x USB 2.0 (Front)

  • 4x USB 5Gbps Type-A (Rear)

  • 2x USB 5Gbps Type-A (Front)

  • 3x USB 10Gbps Type-A (Rear)

  • 1x USB 10Gbps Type-C (Rear)

  • 1x USB 10Gbps Type-C (Front)

  • 1x USB 20Gbps Type-C (Rear)

🌐 Networking:

• LAN: Realtek® 8126-VB 5G LAN

• Wireless LAN: Wi-Fi 7 Solution (M.2 Key-E slot)

  • 2.4GHz / 5GHz / 6GHz, up to 5.8Gbps

  • Bluetooth® 5.4

🔧 Internal Connectors:

• Power Connectors: 1x ATX, 2x CPU_PWR, 1x PCIE_PWR (8-pin)

• Cooling: 1x CPU Fan, 1x Combo Fan (Pump/Sys), 4x System Fans

• Lighting:

  • 3x ARGB V2 headers

  • 1x RGB header

📦 Package Dimensions & Form Factor:

• Form Factor: mATX (243.84mm x 243.84mm)
