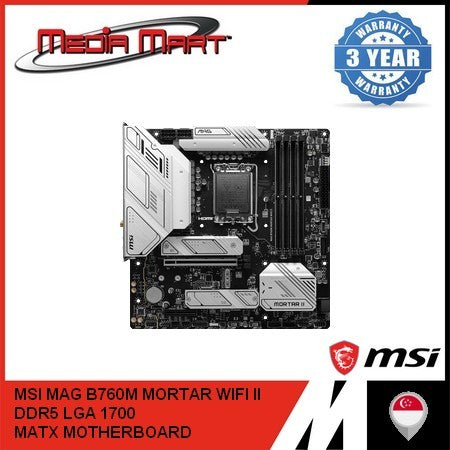

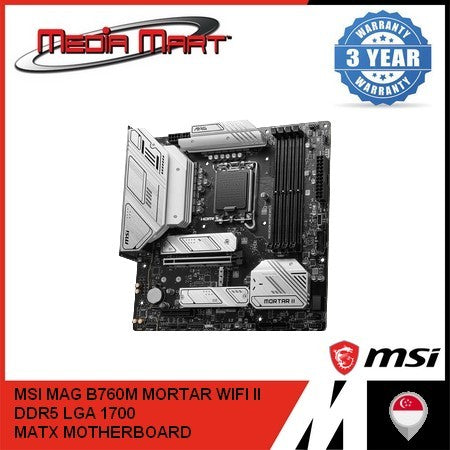

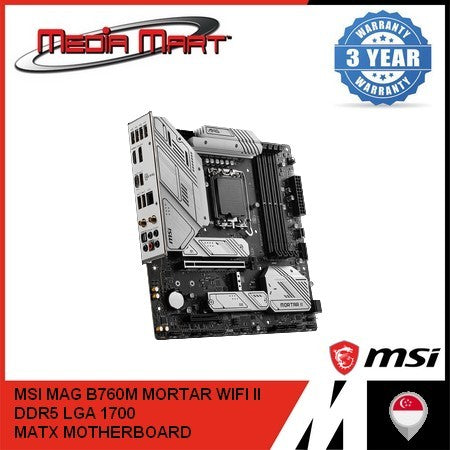

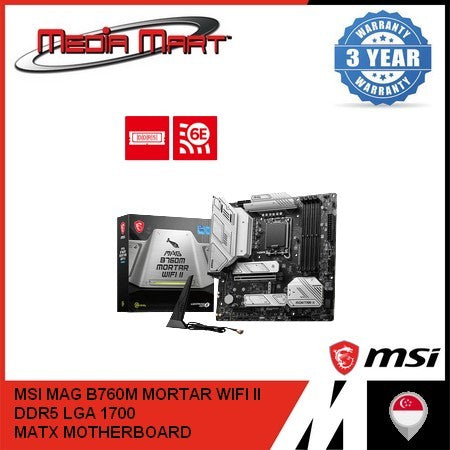

MSI MAG B760M MORTAR WIFI II M-ATX MOTHERBOARD

🛠 Chipset & CPU Support:

• Chipset: Intel B760

• CPU Support: Intel® Core™ 14th / 13th / 12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors

• Socket: LGA 1700

💾 Memory Specifications:

• Memory Slots: 4x DDR5, up to 256GB

• Supported Speeds:

  • Overclocked: 7200+ / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 MHz

  • JEDEC: 5600 / 5400 / 5200 / 5000 / 4800 MHz

• Overclocking Frequency:

  • 1DPC 1R: Up to 7200+ MHz

  • 1DPC 2R: Up to 6600+ MHz

  • 2DPC 1R: Up to 6400+ MHz

  • 2DPC 2R: Up to 5600+ MHz

Supports Dual-Channel, non-ECC, un-buffered memory, and Intel® XMP

🎮 Graphics & Display:

• 1x HDMI™ 2.1: 4K @ 60Hz (HDR)

• 1x DisplayPort 1.4: 4K @ 60Hz

Available only on CPUs with integrated graphics. Graphics output may vary based on CPU model.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16): From CPU

• PCI_E2 (Gen 3, x1): From Chipset

• PCI_E3 (Gen 4, x4): From Chipset

🎧 Audio:

• Realtek® ALC897 Codec

• 7.1-Channel High Performance Audio

• S/PDIF output support

💽 Storage Support:

• M.2 Slots (2x):

  • M.2_1: PCIe 4.0 x4 (CPU) - 2280 / 2260 / 2242

  • M.2_2: PCIe 4.0 x4 / SATA (Chipset) - 2280 / 2260 / 2242

• SATA Ports (4x): 6Gbps

RAID Support:

• SATA: RAID 0, 1, 5, 10

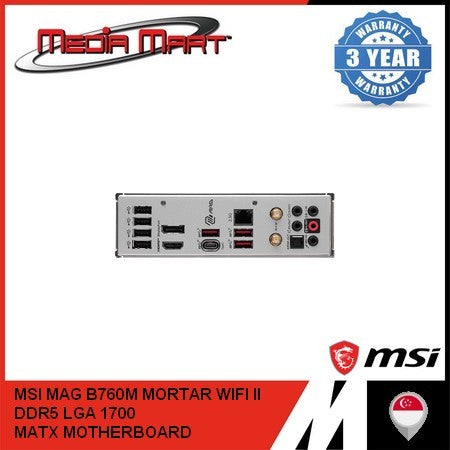

⚡ USB Connectivity:

• USB Ports:

  • 4x USB 2.0 (Rear)

  • 4x USB 2.0 (Front)

  • 2x USB 5Gbps Type-A (Front)

  • 3x USB 10Gbps Type-A (Rear)

  • 1x USB 10Gbps Type-C (Front)

  • 1x USB 20Gbps Type-C (Rear)

🌐 Networking:

• LAN: Realtek® 2.5Gbps LAN

🔧 Internal Connectors:

• Power Connectors: 1x ATX, 2x CPU_PWR

• Cooling: 1x CPU Fan, 1x Pump Fan, 4x System Fan

• Lighting:

  • 2x ARGB V2 headers

  • 1x RGB header

📦 Package Dimensions & Form Factor:

• Form Factor: mATX (243.84mm x 243.84mm)
