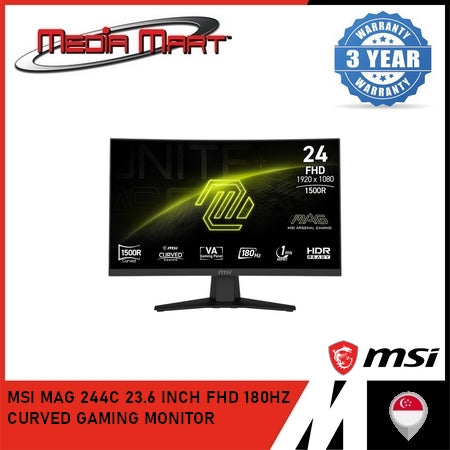

23.6” Curved FHD Gaming Monitor – VA, 180Hz, Adaptive-Sync
🖥 Display Specifications
-
Panel Size: 23.6”
-
Active Display Area: 521.3952 (H) x 293.2848 (V) mm
-
Curvature: 1500R
-
Panel Type: VA
-
Resolution: 1920 x 1080 (FHD)
-
Pixel Pitch: 0.27156 (H) x 0.27156 (V) mm
-
Aspect Ratio: 16:9
-
Brightness: 250 cd/m² (SDR)
-
Contrast Ratio: 3000:1
-
Dynamic Contrast Ratio (DCR): 100,000,000:1
-
Signal Frequency: 55.3 ~ 200 KHz (H) / 48 ~ 180 Hz (V)
-
Activated Range: 48 ~ 180Hz
-
Refresh Rate: 180Hz
-
Response Time: 1ms (MPRT)
-
Dynamic Refresh Rate Technology: Adaptive-Sync
-
HDR Support: HDR Ready
-
Viewing Angle: 178° (H) / 178° (V)
-
Color Gamut (CIE1976): Adobe RGB 87% / DCI-P3 84% / sRGB 105%
-
Surface Treatment: Anti-glare
-
Display Colors: 10-bit (8-bit + FRC)
🔌 Connectivity
-
Video Ports:
-
1x HDMI™ 2.0b (FHD @ 180Hz)
-
1x DisplayPort 1.2a (HBR2)
-
-
Audio Ports:
-
1x Headphone Out
-
⚙️ Ergonomics & Mounting
-
Tilt Adjustment: -5° ~ 20°
-
Kensington Lock: Yes
-
VESA Mounting: 100 x 100 mm
⚖️ Weight & Dimensions
-
Dimensions (with stand):
-
537.44 x 220.01 x 396.55 mm (21.16 x 8.66 x 15.61 inch)
-
-
Dimensions (without stand):
-
537.44 x 86.07 x 319.74 mm (21.16 x 3.39 x 15.59 inch)
-
-
Weight (Net / Gross):
-
2.9 kg (6.39 lbs) / 4.6 kg (10.14 lbs)
-
-
Carton Dimensions:
-
600 x 142 x 396 mm (23.6 x 5.6 x 15.6 inch)
-
🔌 Power
-
Power Type: External Adaptor, 12V / 2.5A
-
Power Input: 100 ~ 240V, 50/60Hz
📦 Accessories
-
Included:
-
1x HDMI™ Cable (2.0)
-
1x Power Cord (C13)
-
1x Quick Guide
-
📝 Notes
-
HDMI™: 1920 x 1080 @ 180Hz
-
DisplayPort: 1920 x 1080 @ 180Hz
-
Support: HDMI™ CEC
-
Non-Support: KVM, PIP/PBP
