MSI GEFORCE RTX 5060 TI 8G VENTUS 3X OC GDDR7 8GB GRAPHICS CARD
MSI GEFORCE RTX 5060 TI 8G VENTUS 3X OC GDDR7 8GB GRAPHICS CARD
Couldn't load pickup availability
Graphics Card Specifications
-
Marketing Name: GeForce RTX™ 5060 Ti 8G VENTUS 3X OC
-
Model Name: G506T-8V3C
-
GPU: NVIDIA® GeForce RTX™ 5060 Ti
-
Interface: PCI Express® Gen 5 x16 (operates at x8)
Clock Speeds
-
Extreme Performance (MSI Center): 2617 MHz
-
Boost Clock: 2602 MHz
Cores & Memory
-
CUDA® Cores: 4608
-
Memory Speed: 28 Gbps
-
Memory: 8GB GDDR7
-
Memory Bus: 128-bit

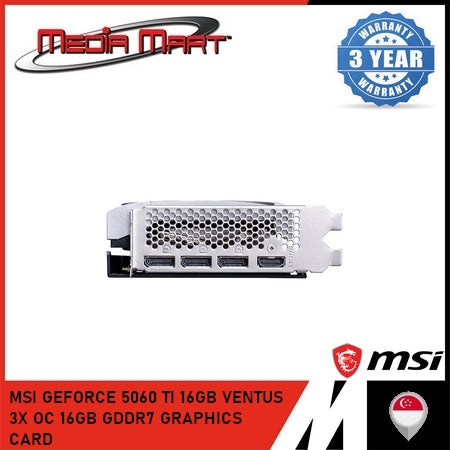

Display Outputs
-
DisplayPort: 3 × DisplayPort 2.1b
-
HDMI: 1 × HDMI 2.1b (Up to 4K @ 480Hz or 8K @ 120Hz with DSC, VRR, HDR)
Other Features
-
HDCP Support: Yes
-
G-SYNC® Support: Yes
-
DirectX Version: 12 Ultimate
-
OpenGL Version: 4.6
-
Maximum Displays: 4
-
Digital Max Resolution: 7680 × 4320
Power Requirements
-
Power Consumption: 180W
-
Power Connectors: 1 × 8-pin
-
Recommended PSU: 600W
Physical Specs
-
Card Dimensions: 304 × 121 × 44 mm
-
Weight (Card / Package): 793 g / 1162 g
