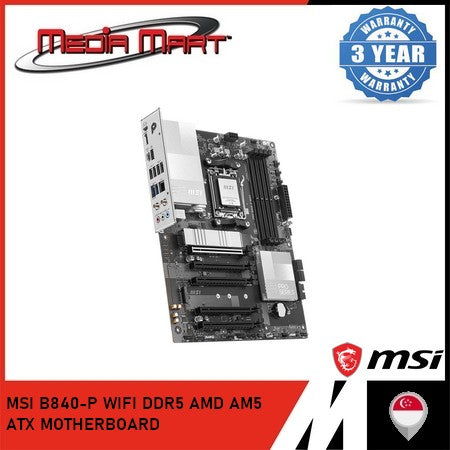

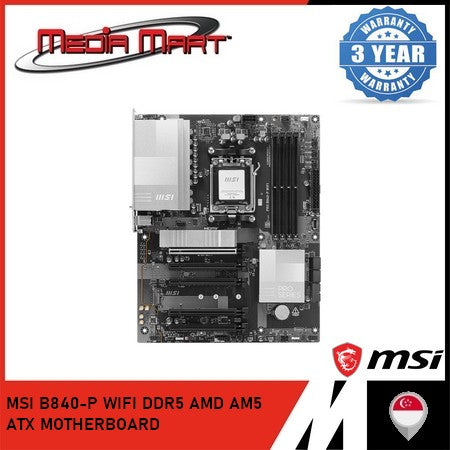

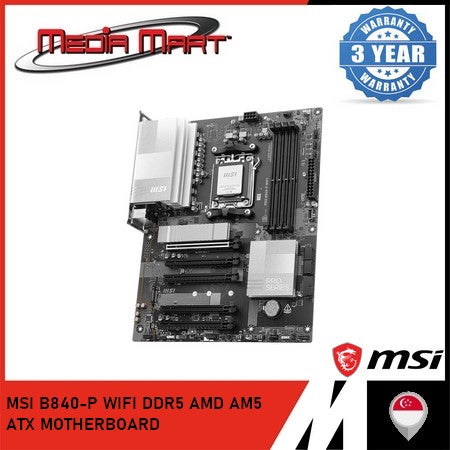

MSI B840-P WIFI DDR5 AMD AM5 ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD B840

• Memory:

  • 4× DDR5 DIMM slots

  • Supports up to 256GB

  • Memory speeds up to 8000+ MHz (OC)

• Expansion Slots:

  • 1× PCIe 4.0 x16

  • 1× PCIe 3.0 x4

  • 3× PCIe 3.0 x1

• Storage:

  • 2× M.2 slots (PCIe 4.0 x4)

  • 4× SATA 6Gb/s ports

  • Supports RAID 0, 1, and 10

• Networking:

  • 2.5G LAN (Realtek 8125D)

  • Wi-Fi 7 (802.11be)

  • Bluetooth 5.4

• Audio: Realtek ALC897 7.1-Channel High Definition Audio

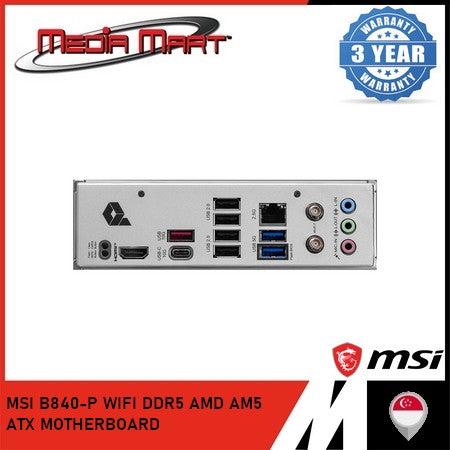

• USB Ports:

  • Rear:

    • 4× USB 2.0

    • 2× USB 3.2 Gen 1 Type-A

    • 1× USB 3.2 Gen 2 Type-A

    • 1× USB 3.2 Gen 2 Type-C

  • Front:

    • 2× USB 2.0 headers (supporting 4 ports)

    • 1× USB 3.2 Gen 1 Type-A header (supporting 2 ports)

    • 1× USB 3.2 Gen 1 Type-C header

• Display Output: 1× HDMI 2.1 (requires CPU with integrated graphics)

• Power Design: 7+2+1 Duet Rail Power System

• Cooling Features:

  • Extended Heatsink Design

  • MOSFET thermal pads rated for 7W/mK

  • M.2 Shield Frozr for M.2 SSDs

• Form Factor: ATX
