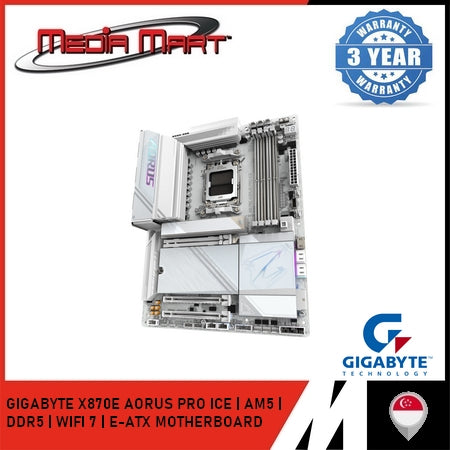

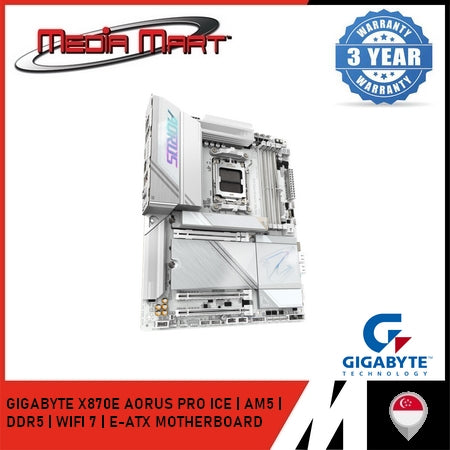

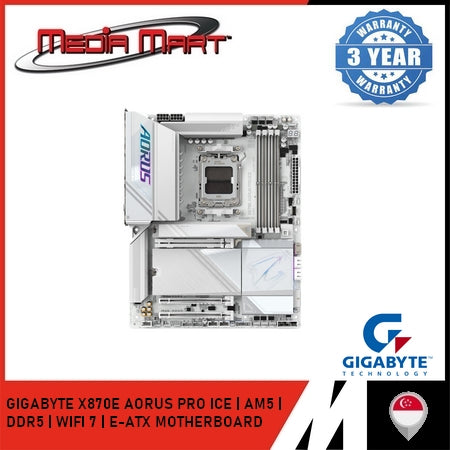

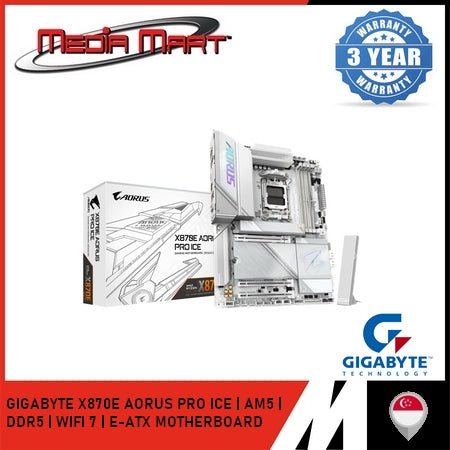

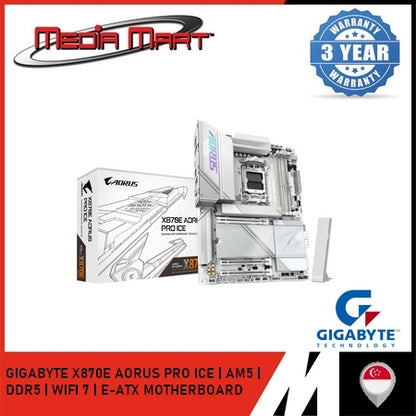

GIGABYTE X870E AORUS PRO ICE DDR5 AMD AM5 ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD X870E

• Form Factor: ATX

• Memory: 4× DDR5 DIMM slots, supporting up to 192GB, with speeds up to DDR5-8600 (OC), compatible with AMD EXPO™ profiles

• Expansion Slots:

  • 1× PCIe 5.0 x16 slot (reinforced with PCIe UD Slot X)

  • 1× PCIe 4.0 x16 slot (x4)

  • 1× PCIe 3.0 x16 slot (x4)

• Storage:

  • 4× M.2 slots:

    • 3× PCIe 5.0 x4

    • 1× PCIe 4.0 x4

  • 4× SATA 6Gb/s ports

• Networking:

  • 1× 2.5GbE LAN (Realtek RT8126)

  • Wi-Fi 7 (Qualcomm QCNCM865)

  • Bluetooth 5.3

• Audio: Realtek® ALC1220 8-Channel High Definition Audio with audiophile-grade capacitors

• USB Ports:

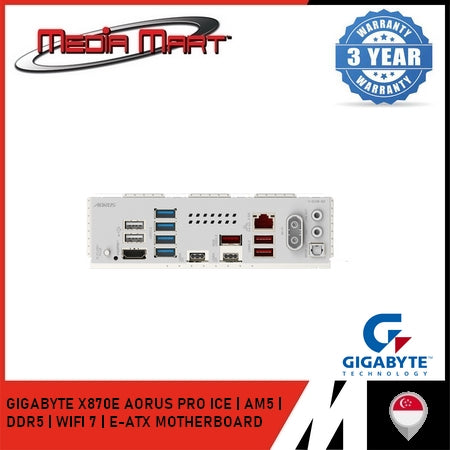

  • Rear I/O:

    • 2× USB4 Type-C (40 Gbps) with DisplayPort Alternate Mode

    • 4× USB 3.2 Gen 2 Type-A (10 Gbps)

    • 4× USB 3.2 Gen 1 Type-A (5 Gbps)

    • 2× USB 2.0 Type-A

    • 1× HDMI port

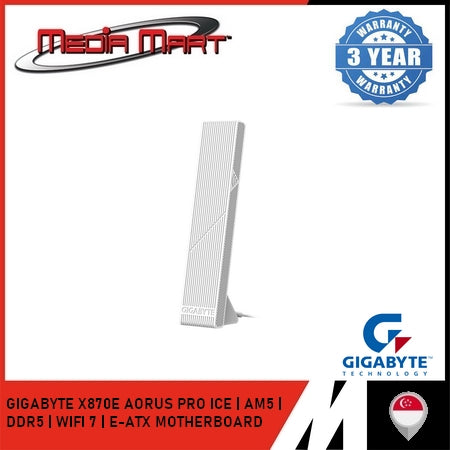

    • 2× Wi-Fi antenna connectors

    • 1× RJ-45 port

    • 2× audio jacks

    • 1× Optical S/PDIF Out port

    • 1× Q-Flash Plus button

    • 1× Clear CMOS button

  • Internal Headers:

    • 1× USB 3.2 Gen 2x2 Type-C header

    • 2× USB 3.2 Gen 1 headers (support 4 ports)

    • 2× USB 2.0 headers (support 4 ports)

• Power Connectors:

  • 1× 24-pin ATX main power connector

  • 2× 8-pin ATX 12V power connectors
