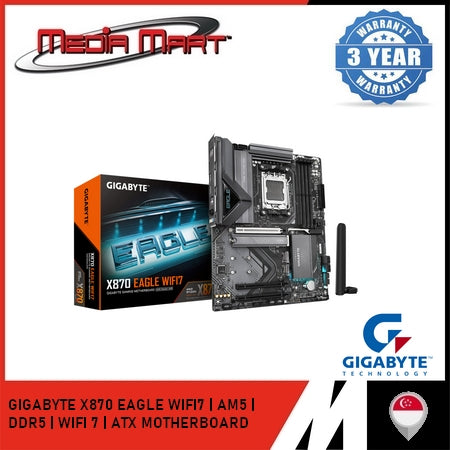

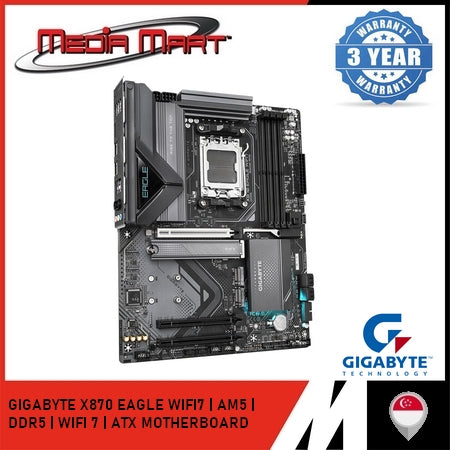

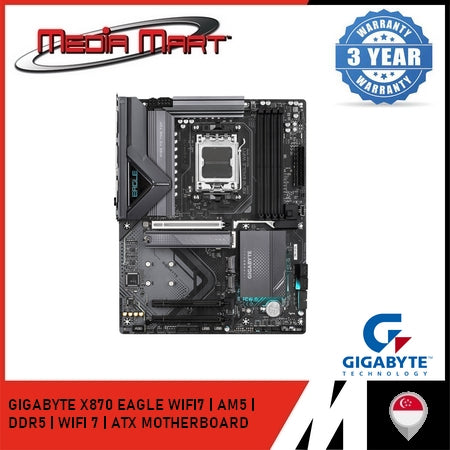

GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD X870

• Form Factor: ATX

• Memory: 4× DDR5 DIMM slots, supporting up to 256GB, with speeds up to DDR5-8000 MT/s (OC), compatible with AMD EXPO™ profiles

• Expansion Slots:

  • 1× PCIe 5.0 x16 slot (reinforced with PCIe UD Slot)

  • 2× PCIe 3.0 x16 slots (operating at x1 mode)

• Storage:

  • 3× M.2 slots:

    • 1× PCIe 5.0 x4 (with heatsink)

    • 2× PCIe 4.0 x4 (without heatsinks)

  • 4× SATA 6Gb/s ports

• Networking:

  • 1× 2.5GbE LAN (Realtek RTL8125D)

  • Wi-Fi 7 module (MediaTek MT7925B22M or Realtek RTL8922AE, depending on revision)

  • Bluetooth 5.4

• Audio: Realtek ALC897 7.1-Channel High Definition Audio

• USB Ports:

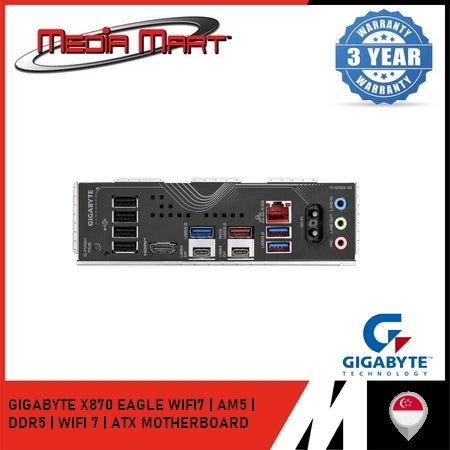

  • Rear I/O:

    • 2× USB4 Type-C (40 Gbps) with DisplayPort Alternate Mode

    • 4× USB 3.2 Gen 1 Type-A (5 Gbps)

    • 1× USB 3.2 Gen 2 Type-A (10 Gbps)

    • 4× USB 2.0 Type-A

    • 1× HDMI port

    • 2× Wi-Fi antenna connectors

    • 1× RJ-45 port

    • 3× audio jacks

  • Internal Headers:

    • 1× USB 3.2 Gen 2x2 Type-C header

    • 1× USB 3.2 Gen 1 header (supports 2 ports)

    • 2× USB 2.0 headers (support 4 ports)

• Power Connectors:

  • 1× 24-pin ATX main power connector

  • 1× 8-pin ATX 12V power connector

  • 1× 4-pin ATX 12V power connector
