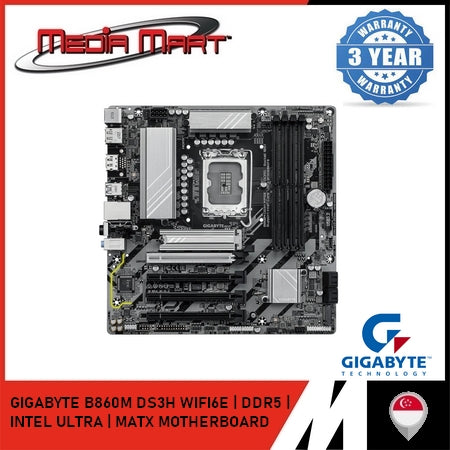

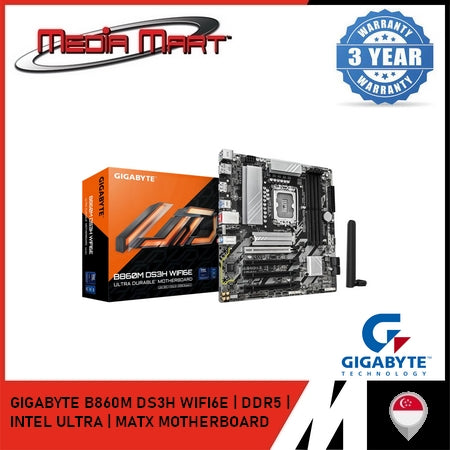

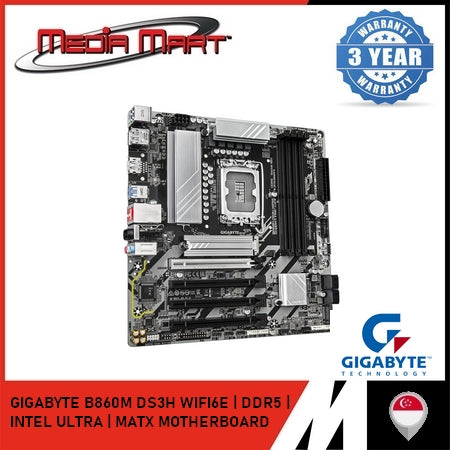

GIGABYTE B860M DS3H WIFI6E LGA 1851 DDR5 M-ATX MOTHERBOARD

🛠 CHIPSET & CPU SUPPORT

• Chipset: Intel B860

• Socket: LGA 1851

• CPU Support:

  • Intel® Core™ 15th Gen Processors

  • Intel® Core™ 14th Gen Processors

💾 MEMORY SPECIFICATIONS

• Memory Slots: 4x DDR5 DIMM, up to 192GB

• Supported Speeds:

  • JEDEC: 5600 / 4800 MT/s

  • Overclocked: Up to 6800 MT/s (OC)

• Memory Features: Dual-Channel, Non-ECC, Un-buffered, Intel XMP 3.0

🎮 GRAPHICS & DISPLAY

• Integrated Graphics Support (CPU Dependent):

  • 1x HDMI™ 2.1 FRL: Up to 8K @ 60Hz

  • 1x DisplayPort 1.4: Up to 4K @ 144Hz

🔌 EXPANSION SLOTS

• PCI_E1 (Gen 4, x16): PCIe 4.0 x16 (for GPU)

• PCI_E2 (Gen 4, x1): PCIe 4.0 x1 (for Expansion Cards)

🎧 AUDIO

• Audio Codec: Realtek® ALC897

• High Definition Audio: 7.1-Channel

• S/PDIF Output Support: Yes

💽 STORAGE SUPPORT

• M.2 Slots (2x):

  • M.2_1 (CPU): PCIe 4.0 x4 (NVMe SSD)

  • M.2_2 (Chipset): PCIe 4.0 x2 / SATA Mode

• SATA Ports: 4x 6Gbps

• RAID Support:

  • SATA: RAID 0, 1, 10

  • NVMe: RAID 0, 1

⚡ USB CONNECTIVITY

• Front Panel:

  • 1x USB 3.2 Gen 1 Type-C

  • 2x USB 3.2 Gen 1 Type-A

  • 4x USB 2.0

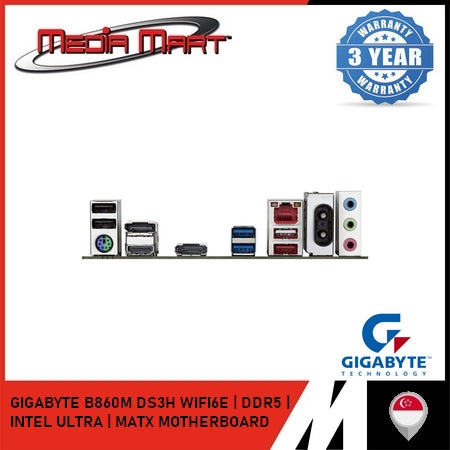

• Rear Panel:

  • 1x USB 3.2 Gen 2x2 Type-C

  • 2x USB 3.2 Gen 2 Type-A

  • 4x USB 3.2 Gen 1 Type-A

  • 2x USB 2.0

🌐 NETWORKING

• LAN: Realtek® 2.5GbE LAN

• Wireless LAN: Intel® Wi-Fi 6E AX211 (2.4GHz / 5GHz / 6GHz)

• Bluetooth: 5.3

🔧 INTERNAL CONNECTORS

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers:

  • 1x CPU Fan

  • 1x Pump Fan

  • 2x System Fans

• RGB Headers:

  • 1x 5V ARGB (3-pin)

  • 1x 12V RGB (4-pin)

📦 PACKAGE DIMENSIONS & FORM FACTOR

• Form Factor: Micro-ATX (244mm x 244mm)

• Weight (Net / Gross): 1.0kg / 1.5kg
