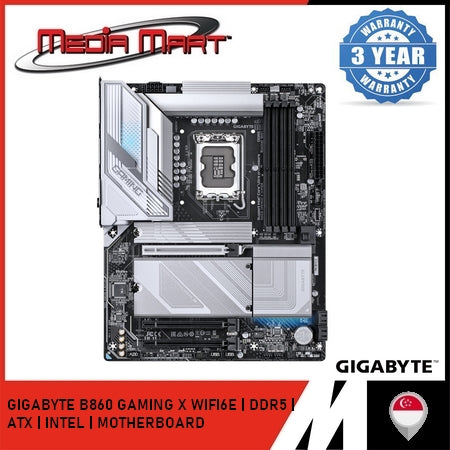

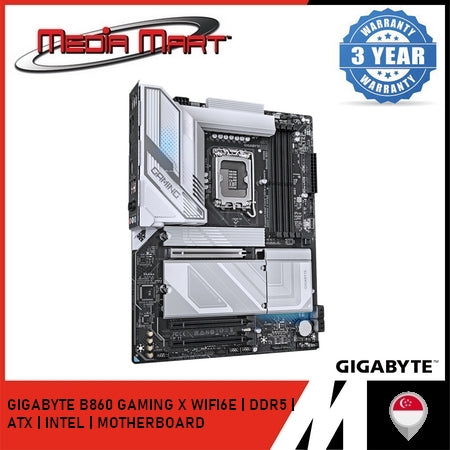

GIGABYTE B860 GAMING X WIFI6E ATX | DDR5 | MOTHERBOARD

🔧 Core Specifications

• Socket: LGA 1851

• Chipset: Intel B860

• Form Factor: ATX

• CPU Support: Intel® Core™ Ultra Series (Series 2)

• Power Delivery: 12+1+2+1 Twin Hybrid VRM with 50A PPAK phases

• Memory Support:

  • 4 x DDR5 DIMM slots (Dual Channel)

  • Supports up to 256 GB

  • Memory speeds up to 9066 MHz (OC)

  • Supports both ECC and non-ECC unbuffered memory

⚙️ Expansion & Storage

• PCIe Slots:

  • 1 x PCIe 5.0 x16 (with PCIe UD Slot & EZ-Latch Plus)

  • 2 x PCIe 4.0 x1 slots

• M.2 Slots:

  • 1 x PCIe 5.0 M.2 slot (up to 25110) with EZ-Latch Plus

  • 2 x PCIe 4.0 M.2 slots

• SATA Ports: 4 x SATA 6Gb/s connectors

🌐 Connectivity

• Networking:

  • 2.5 GbE LAN

  • Wi-Fi 6E (802.11ax) with Realtek 2x2 module and WIFI EZ-Plug

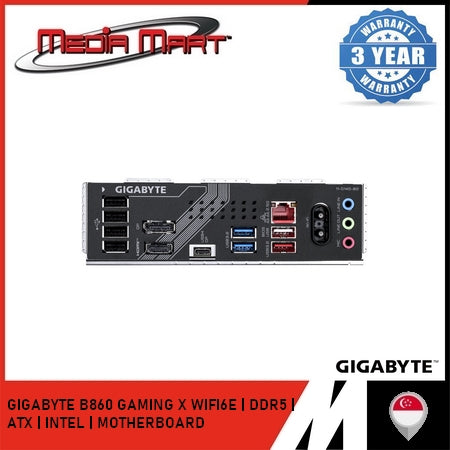

• USB Ports:

  • 1 x USB4 Type-C® with DisplayPort Alternate Mode

  • 1 x USB 3.2 Gen 2 Type-C

  • 2 x USB 3.2 Gen 1

  • 5 x USB 2.0

  • Front USB-C 10Gb/s support

• Display Outputs:

  • 1 x HDMI 2.1

  • 1 x DisplayPort

❄️ Cooling & Build Features

• Thermal Solutions:

  • VRM Thermal Armor Advanced with integrated I/O shield

  • M.2 Thermal Guard Ext. and M.2 Thermal Guard

  • Advanced MOSFET heatsinks

• Build Enhancements:

  • EZ-Latch Plus for tool-free installation of PCIe and M.2 devices

  • Q-Flash Plus button for BIOS updates without CPU/RAM/GPU

  • EZ-Debug Zone with diagnostic LEDs

  • RGB FUSION with 1 x RGB LED header and 3 x ARGB LED headers

🔊 Audio

• Audio Codec: 8-channel HD Audio

• Components: High-end audio capacitors for superior sound quality

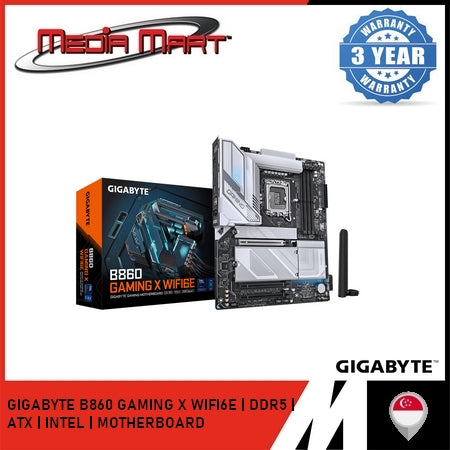

📦 Package Contents

• Motherboard

• User's Manual

• Quick Installation Guide

• Wi-Fi Antenna

• 2 x SATA cables

• M.2 rubber pads
