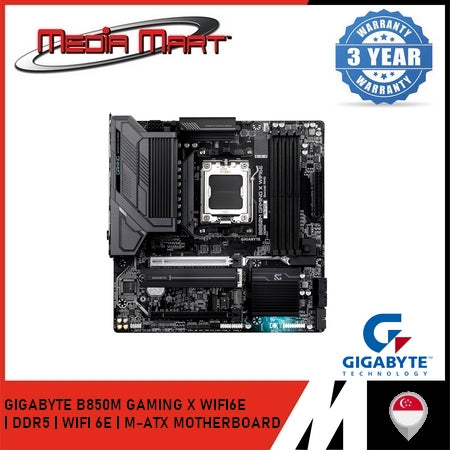

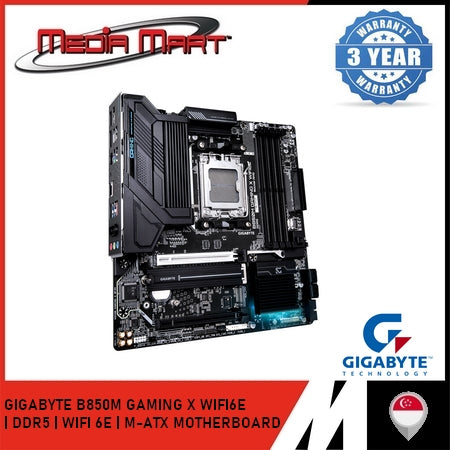

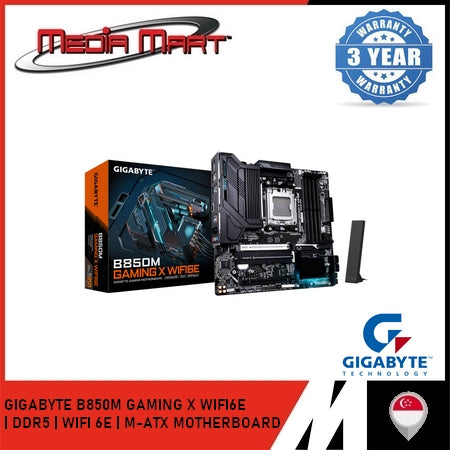

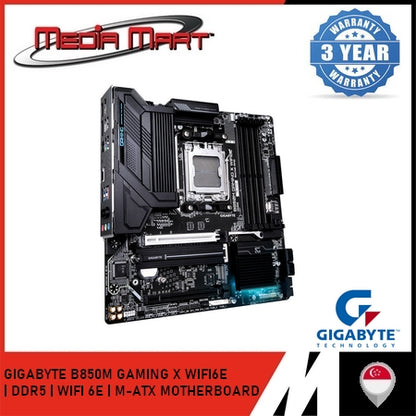

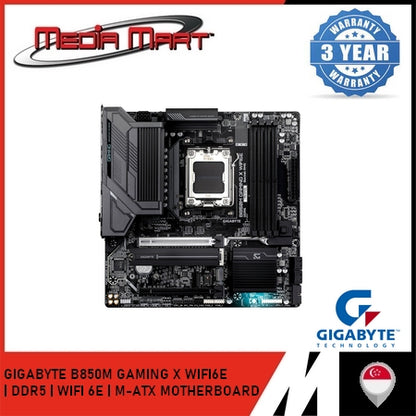

GIGABYTE B850M GAMING X WIFI6E AM5 DDR5 M-ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD B850

• Memory: 4× DDR5 DIMM slots, up to 256GB, supporting speeds up to DDR5-8200 (OC), with AMD EXPO™ and Intel® XMP support

• Graphics Outputs: 1× HDMI 2.1 (up to 4096x2160@60Hz), 2× DisplayPort 1.4 (up to 3840x2160@144Hz)

• Expansion Slots:

  • 1× PCIe 5.0 x16 slot (reinforced with PCIe UD Slot design)

  • 1× PCIe 3.0 x4 slot

• Storage:

  • 2× M.2 slots:

    • 1× PCIe 5.0 x4

    • 1× PCIe 4.0 x4

  • 4× SATA 6Gb/s ports

• Networking:

  • Realtek® 2.5GbE LAN

  • Realtek® Wi-Fi 6E (802.11ax) with directional ultra-high gain antenna

  • Bluetooth 5.3

• Audio: Realtek® 7.1-Channel High Definition Audio with high-end audio capacitors

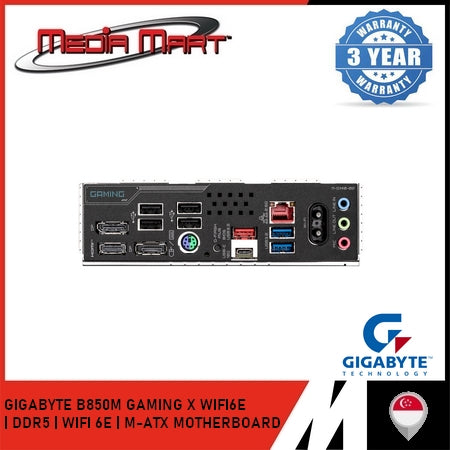

• USB Ports:

  • Rear I/O:

    • 1× USB 3.2 Gen 2 Type-A

    • 1× USB 3.2 Gen 2 Type-C

    • 2× USB 3.2 Gen 1 Type-A

    • 4× USB 2.0 Type-A

    • 1× PS/2 keyboard/mouse combo port

  • Internal Headers:

    • 1× USB 3.2 Gen 2 Type-C header

    • 1× USB 3.2 Gen 1 header (supports 2 ports)

    • 2× USB 2.0 headers (support 4 ports)

• Form Factor: Micro-ATX (24.4cm x 24.4cm)
