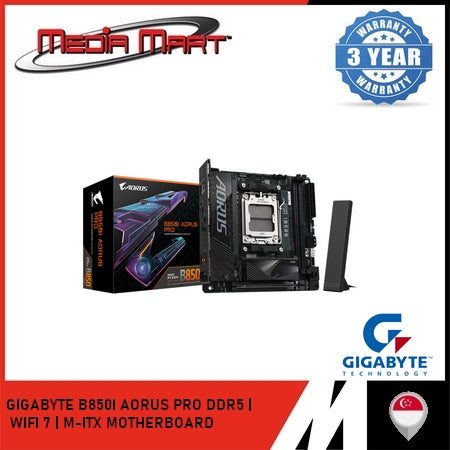

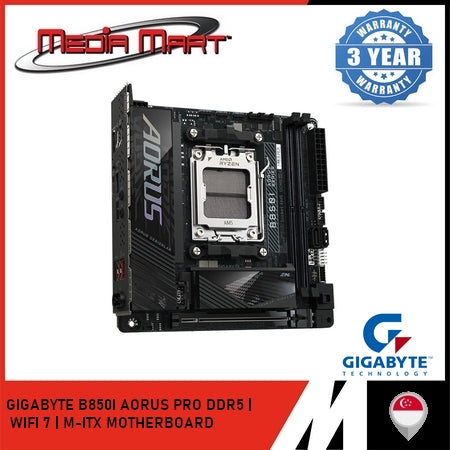

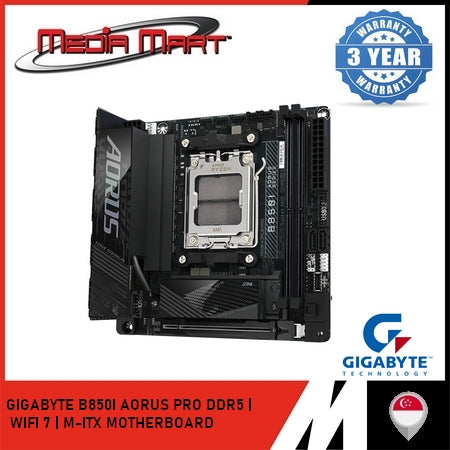

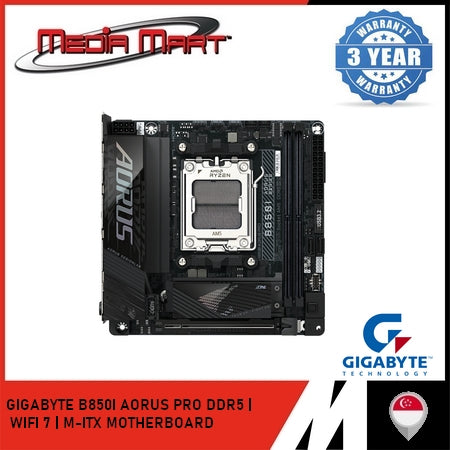

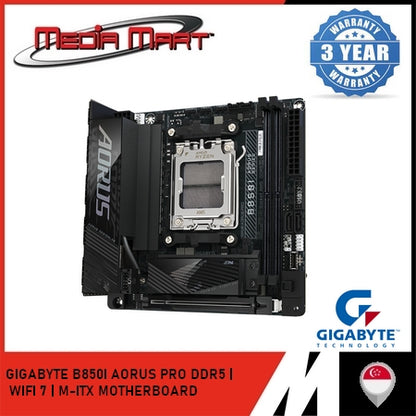

GIGABYTE B850I AORUS PRO AM5 DDR5 MINI-ITX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD B850

• Form Factor: Mini-ITX (17cm x 17cm)

• Memory: 2× DDR5 DIMM slots, up to 128GB, supporting speeds up to DDR5-8400 (OC), with AMD EXPO™ and Intel® XMP support

• Graphics Output: 1× HDMI port

• Expansion Slots:

  • 1× PCIe 5.0 x16 slot with PCIe UD Slot design

• Storage:

  • 2× M.2 slots:

    • 1× PCIe 5.0 x4 (front)

    • 1× PCIe 4.0 x4 (back)

  • 2× SATA 6Gb/s ports

• Networking:

  • Realtek® 2.5GbE LAN

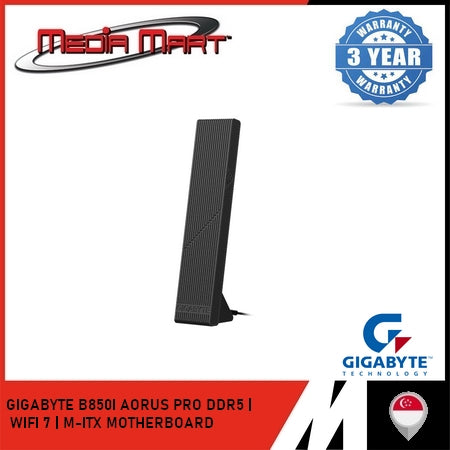

  • Wi-Fi 7 (802.11be) with directional ultra-high gain antenna

  • Bluetooth 5.3

• Audio: Realtek® ALC4080 7.1-Channel High Definition Audio

• USB Ports:

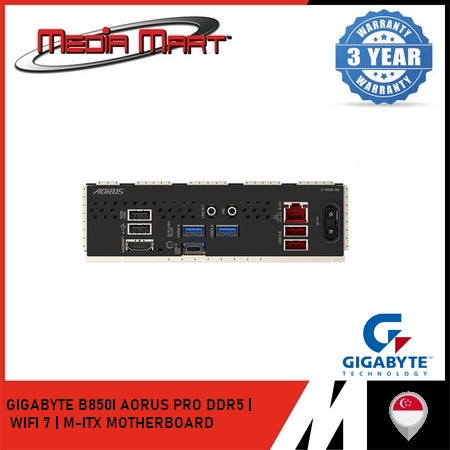

  • Rear I/O:

    • 1× USB 3.2 Gen 2 Type-C

    • 2× USB 3.2 Gen 2 Type-A

    • 2× USB 3.2 Gen 1 Type-A

    • 2× USB 2.0 Type-A

    • 1× HDMI port

    • 2× Wi-Fi antenna connectors

    • 1× RJ-45 port

    • 2× audio jacks

    • 1× Q-Flash Plus button

  • Internal Headers:

    • 1× USB 3.2 Gen 2 Type-C header

    • 1× USB 3.2 Gen 1 header (supports 2 ports)

    • 1× USB 2.0 header (supports 2 ports)

• Power Connectors:

  • 1× 24-pin ATX main power connector

  • 1× 8-pin ATX 12V power connector
