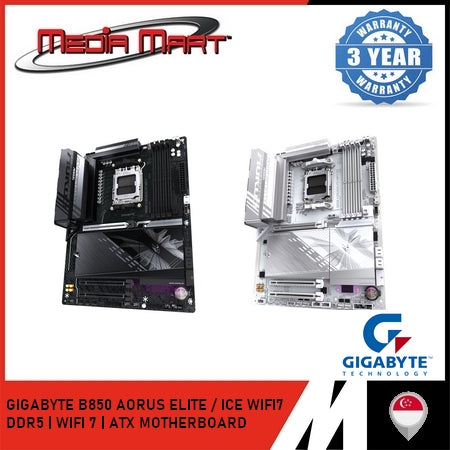

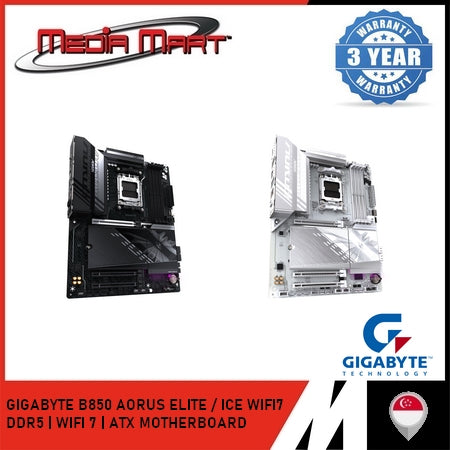

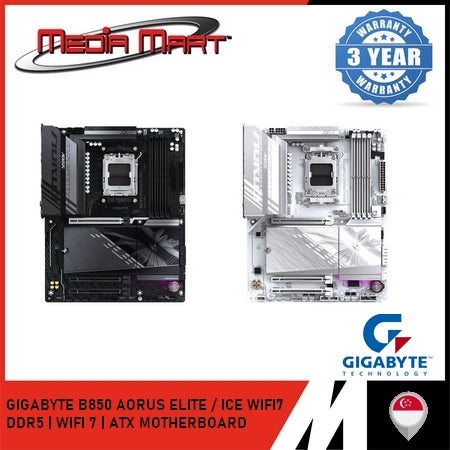

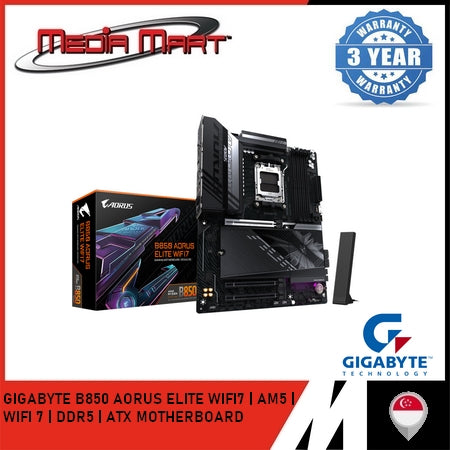

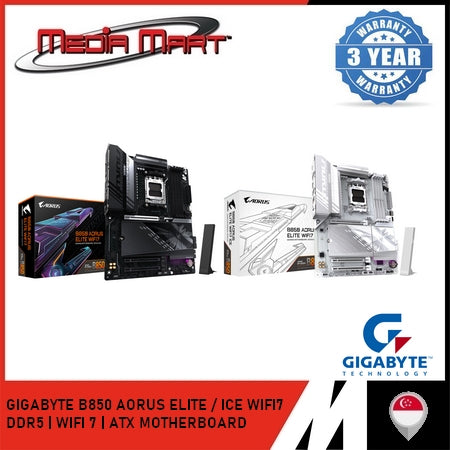

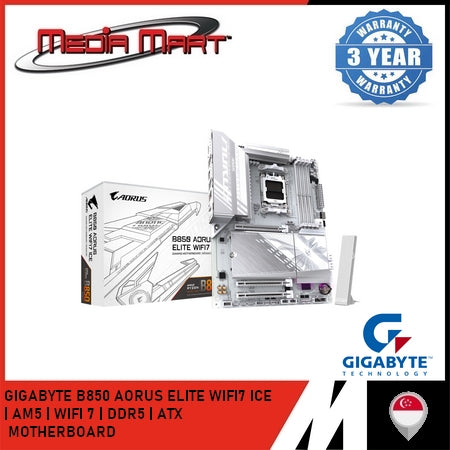

GIGABYTE B850 AORUS ELITE / ICE WIFI 7 AM5 DDR5 ATX MOTHERBOARD

Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD B850

• Form Factor: ATX

• Memory: 4× DDR5 DIMM slots, supporting up to 256GB, with speeds up to DDR5-8200 (OC), compatible with AMD EXPO™ and Intel® XMP profiles

• Expansion Slots:

  • 1× PCIe 5.0 x16 slot with PCIe UD Slot design

  • 2× PCIe 3.0 x1 slots

• Storage:

  • 3× M.2 slots:

    • 1× PCIe 5.0 x4

    • 2× PCIe 4.0 x4

  • 4× SATA 6Gb/s ports

• Networking:

  • 2.5GbE LAN

  • Wi-Fi 7 (802.11be) with directional ultra-high gain antenna

  • Bluetooth 5.3

• Audio: Realtek® ALC897 8-Channel High Definition Audio with high-end audio capacitors

• USB Ports:

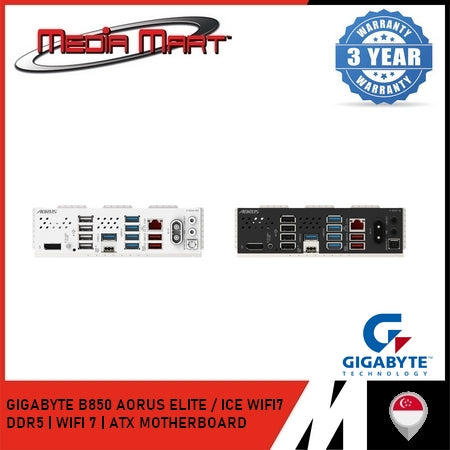

  • Rear I/O:

    • 1× USB 3.2 Gen 2x2 Type-C (20 Gbps)

    • 2× USB 3.2 Gen 2 Type-A (10 Gbps)

    • 5× USB 3.2 Gen 1 Type-A (5 Gbps)

    • 4× USB 2.0 Type-A

    • 1× DisplayPort

    • 2× Wi-Fi antenna connectors

    • 1× RJ-45 port

    • 2× audio jacks

    • 1× Q-Flash Plus button

  • Internal Headers:

    • 1× USB 3.2 Gen 2 Type-C header

    • 1× USB 3.2 Gen 1 header (supports 2 ports)

    • 2× USB 2.0 headers (support 4 ports)

• Power Connectors:

  • 1× 24-pin ATX main power connector

  • 1× 8-pin ATX 12V power connector

  • 1× 4-pin ATX 12V power connector
