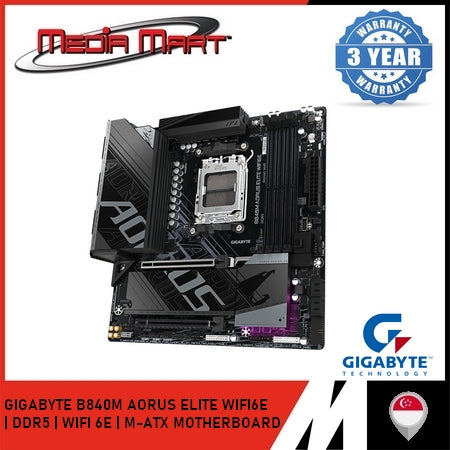

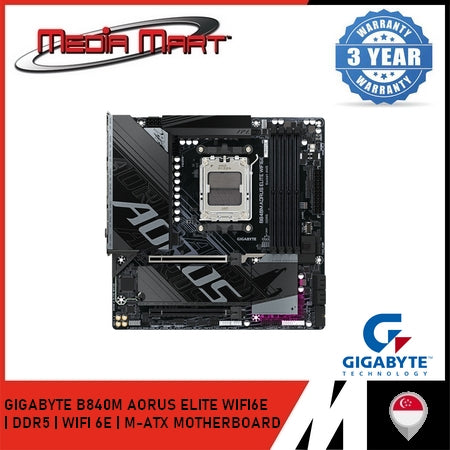

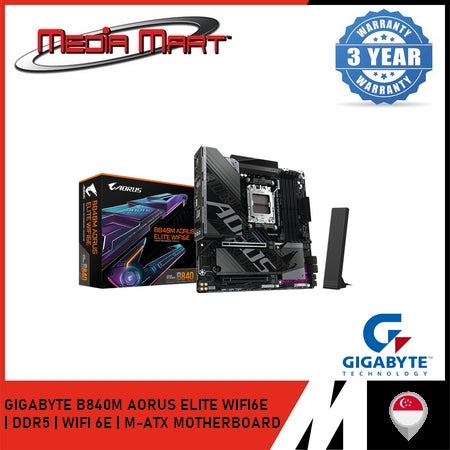

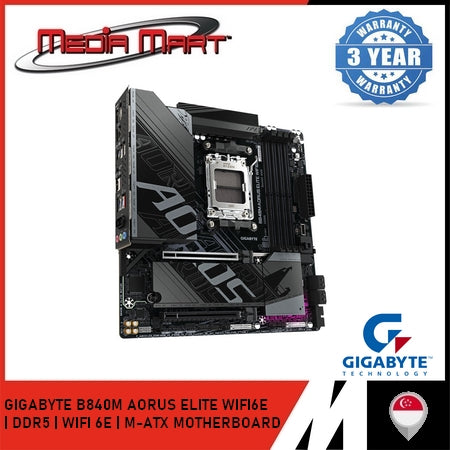

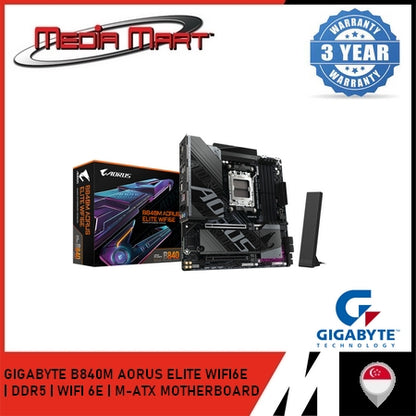

GIGABYTE B840M AORUS ELITE WIFI6E AM5 DDR5 M-ATX MOTHERBOARD

🔧 Key Specifications

• CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)

• Chipset: AMD B840

• Memory: 4× DDR5 DIMM slots, up to 256GB, supporting speeds up to DDR5-8200 (OC), with AMD EXPO™ and Intel® XMP support

• Graphics Outputs: 1× HDMI 2.1 (up to 4096x2160@60Hz), 1× DisplayPort 1.4 (up to 3840x2160@144Hz)

• Expansion Slots:

  • 1× PCIe 4.0 x16 slot (reinforced with PCIe UD Slot design)

  • 1× PCIe 3.0 x16 slot (operates at x4 mode)

• Storage:

  • 2× M.2 slots (PCIe 4.0 x4, NVMe only)

  • 4× SATA III 6Gb/s ports

• Networking:

  • Realtek® 2.5GbE LAN

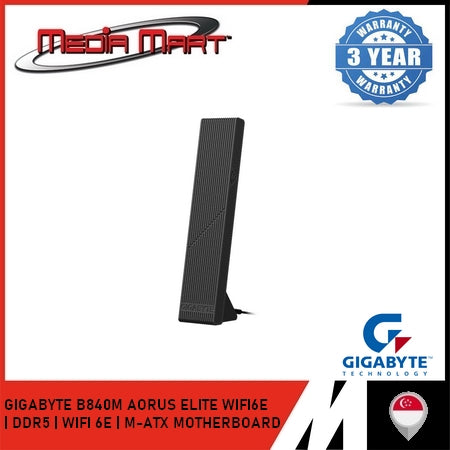

  • Realtek® Wi-Fi 6E (802.11ax) with directional ultra-high gain antenna

  • Bluetooth 5.3

• Audio: Realtek® ALC897 7.1-Channel High Definition Audio

• USB Ports:

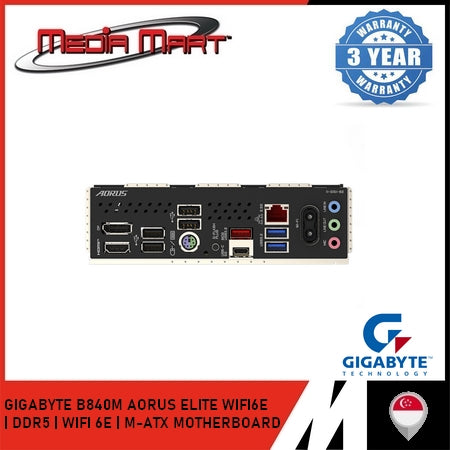

  • Rear I/O:

    • 1× USB 3.2 Gen 2 Type-A

    • 1× USB 3.2 Gen 1 Type-C

    • 2× USB 3.2 Gen 1 Type-A

    • 4× USB 2.0 Type-A

    • 1× PS/2 keyboard/mouse combo port

  • Internal Headers:

    • 1× USB 3.2 Gen 1 Type-C header

    • 1× USB 3.2 Gen 1 header (supports 2 ports)

    • 2× USB 2.0 headers (support 4 ports)

• Form Factor: Micro-ATX
