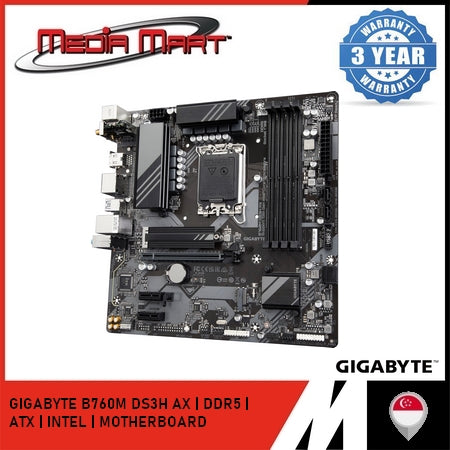

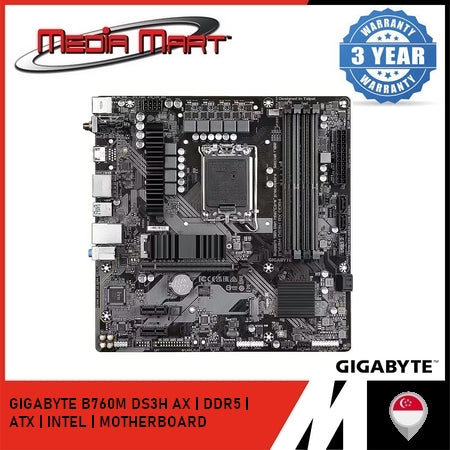

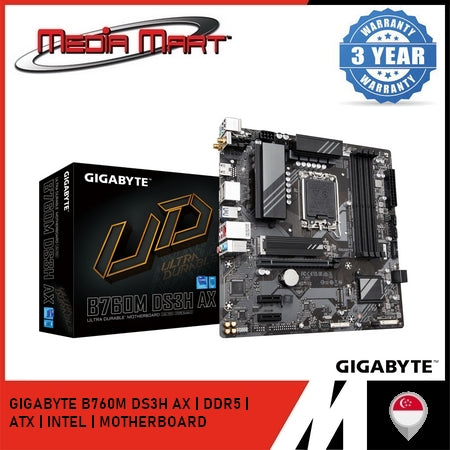

GIGABYTE B760M DS3H AX | M-ATX | INTEL | DDR5 | MOTHERBOARD

🧠 CPU & Chipset

• Socket: LGA 1700

• Chipset: Intel B760

• CPU Support: Intel® Core™ 14th, 13th, and 12th Gen processors

💾 Memory

• DDR5 Version:

  • Memory Type: DDR5

  • Slots: 4 x DIMM

  • Capacity: Up to 192 GB

  • Supported Speeds: Up to 7600 MHz (OC)

• DDR4 Version:

  • Memory Type: DDR4

  • Slots: 4 x DIMM

  • Capacity: Up to 128 GB

  • Supported Speeds: Up to 5333 MHz (OC)

⚙️ Power Design

• VRM: 6+2+1 Hybrid Digital VRM with Low RDS(on) MOSFETs

• Power Connectors: 24-pin ATX main power and 8-pin ATX 12V

🧩 Expansion Slots

• 1 x PCIe 4.0 x16 (with EZ-Latch)

• 2 x PCIe 3.0 x1

💽 Storage

• M.2 Slots: 2 x PCIe 4.0 x4 M.2 connectors with Thermal Guard

• SATA Ports: 4 x SATA 6Gb/s connectors

🌐 Networking & Connectivity

• LAN: Realtek 2.5GbE LAN

• Wi-Fi: Wi-Fi 6E (802.11ax) with Bluetooth support

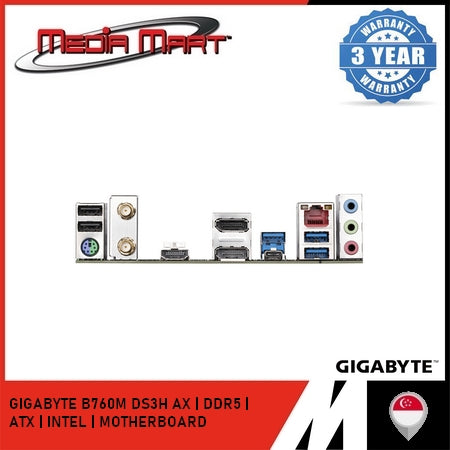

• Rear I/O Ports:

  • 1 x HDMI

  • 2 x DisplayPort

  • 1 x USB 3.2 Gen 2 Type-C®

  • 3 x USB 3.2 Gen 1 Type-A

  • 2 x USB 2.0

  • 1 x RJ-45 LAN port

  • 3 x audio jacks

🎧 Audio

• Codec: 8-channel HD Audio with Audio Noise Guard and high-end audio capacitors

🌈 Additional Features

• RGB Support: RGB FUSION with 1 x Addressable LED Header and 1 x RGB LED Header

• BIOS: Q-Flash Plus for BIOS updates without installing CPU, memory, or graphics card

• Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP

📐 Form Factor

• Size: Micro-ATX (24.4cm x 24.4cm)
