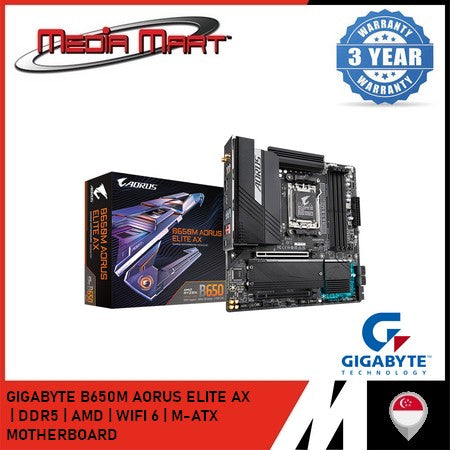

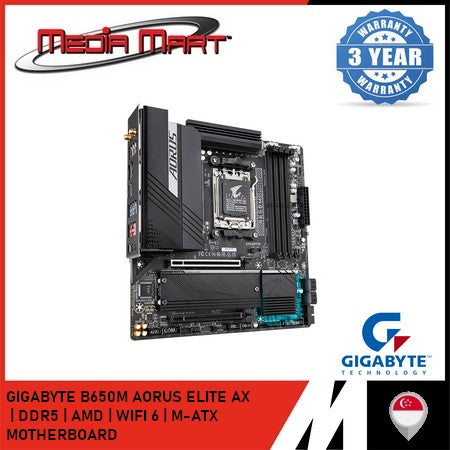

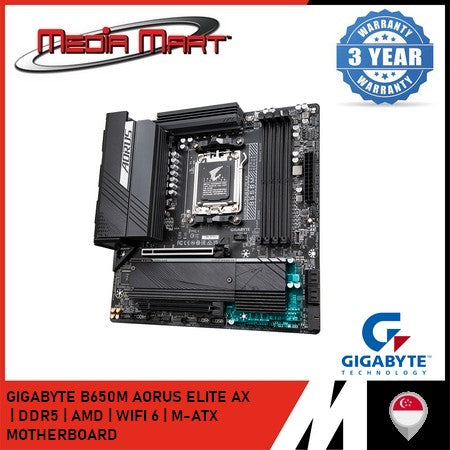

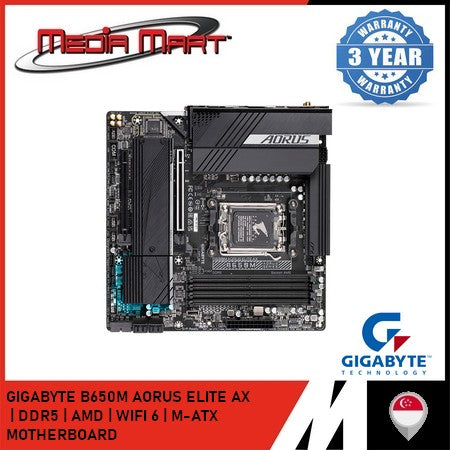

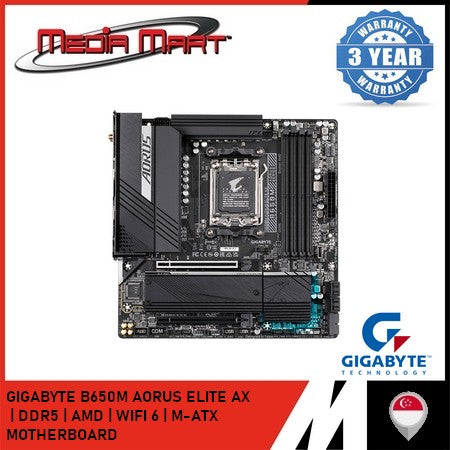

GIGABYTE B650M AORUS ELITE AX AM5 DDR5 M-ATX MOTHERBOARD

🔧 Chipset & CPU Support

• Chipset: AMD B650

• Socket: AM5

• CPU Support: AMD Ryzen™ 7000, 8000, and 9000 Series Processors AORUS+1PC Gamer+1

💾 Memory

• Slots: 4x DDR5 DIMM (Dual Channel)

• Capacity: Up to 128GB

• Speeds: DDR5-6600 (OC) and beyond

• Type: Non-ECC, Unbuffered

• XMP/EXPO Support: Yes (AMD EXPO™ & Intel® XMP) Amazon

🎮 Graphics & Display

• Integrated Graphics Support (CPU Dependent): Yes

• Video Outputs:

  • 1x HDMI 2.0

  • 1x DisplayPort

🔌 Expansion Slots

• PCIe x16 Slot: 1x PCIe 4.0 x16 with Ultra Durable™ Armor

• PCIe x4 Slot: 1x PCIe 4.0 x4 GIGABYTE+2GIGABYTE+2Newegg.com+2

💽 Storage

• M.2 Slots:

  • 1x M.2 PCIe 5.0 x4 (up to 25110)

  • 1x M.2 PCIe 4.0 x4 (up to 22110)

• SATA Ports: 4x 6Gbps

• RAID Support: RAID 0, 1, and 10 for SATA and NVMe SSDs

🌐 Networking

• LAN: Intel® 2.5GbE LAN

• Wi-Fi: AMD Wi-Fi 6E RZ616 (802.11ax)

• Bluetooth: 5.3 GIGABYTE+3Newegg.com+3Amazon+3Newegg.com+1PC Gamer+1

🎧 Audio

• Codec: Realtek® Audio CODEC

• Channels: 7.1-Channel High Definition Audio

• Features: High-End Audio Capacitors, Audio Noise Guard Newegg.comPC Gamer

⚡ USB Connectivity

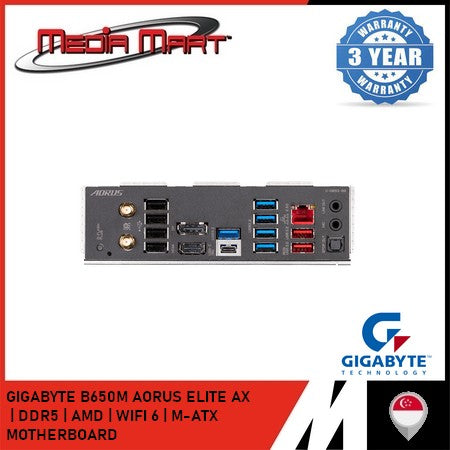

• Rear I/O:

  • 1x USB 3.2 Gen 2x2 Type-C

  • 2x USB 3.2 Gen 2 Type-A

  • 5x USB 3.2 Gen 1 Type-A

  • 4x USB 2.0

• Internal Headers:

  • 1x USB 3.2 Gen 2x2 Type-C

  • 1x USB 3.2 Gen 1 header

  • 2x USB 2.0 headers

🔧 Internal Connectors

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers: 6x PWM/DC Fan Headers

• RGB Headers: 2x Addressable LED Header, 3x RGB LED Header GIGABYTE+1Newegg.com+1

📦 Form Factor & Dimensions

• Form Factor: Micro-ATX (244mm x 244mm)

• Weight: Approximately 1.0kg
