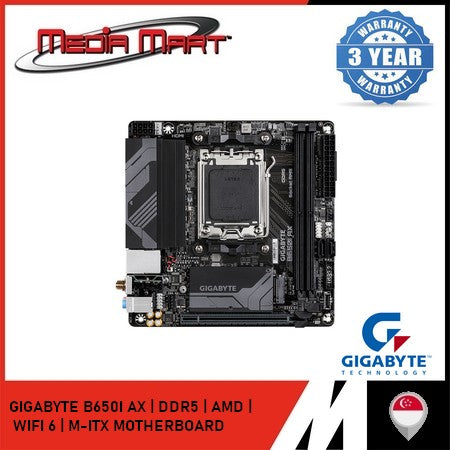

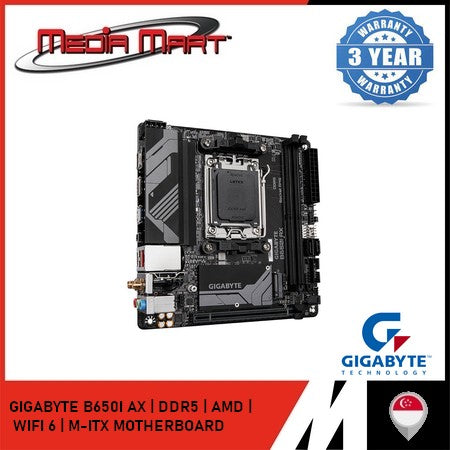

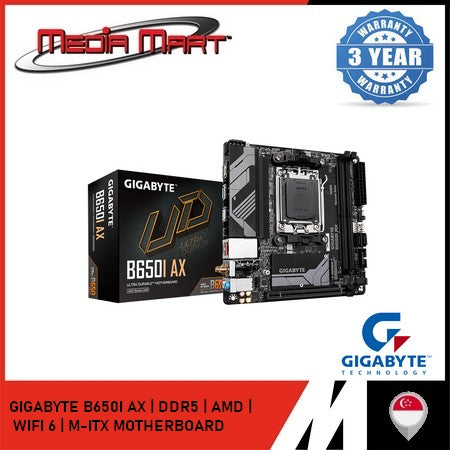

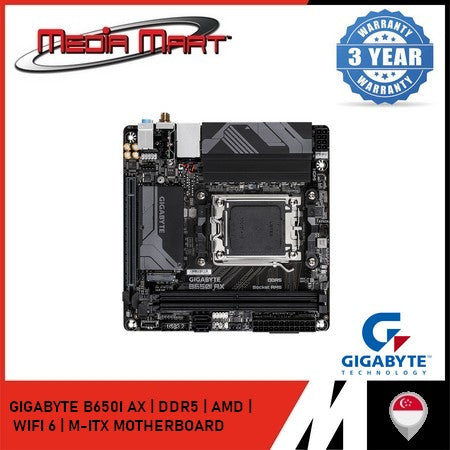

GIGABYTE B650I AX AM5 DDR5 WIFI 6 MINI-ITX MOTHERBOARD

🔧 Chipset & CPU Support

• Chipset: AMD B650

• Socket: AM5

• CPU Support: AMD Ryzen™ 7000, 8000, and 9000 Series Processors GIGABYTE+2GIGABYTE+2GIGABYTE+2

💾 Memory

• Slots: 2x DDR5 DIMM (Dual Channel)

• Capacity: Up to 128GB (2x64GB)

• Speeds: DDR5-6400 (OC) and beyond

• Type: Non-ECC, Unbuffered

• XMP/EXPO Support: Yes (AMD EXPO™ & Intel® XMP) AmazonALKtech+3GIGABYTE+3GIGABYTE Download Center+3GIGABYTE+2GIGABYTE+2GIGABYTE+2

🎮 Graphics & Display

• Integrated Graphics Support (CPU Dependent): Yes

• Video Outputs:

  • 1x HDMI 2.1 (up to 4096x2160@60Hz)

  • 1x DisplayPort 1.4 (up to 3840x2160@144Hz) ALKtech

🔌 Expansion Slots

• PCIe x16 Slot: 1x PCIe 4.0 x16 with EZ-LatchGIGABYTE+3ALKtech+3GIGABYTE+3

💽 Storage

• M.2 Slots:

  • 1x M.2 PCIe 4.0 x4 (NVMe only, up to 2280)

• SATA Ports: 2x SATA III 6Gbps

• RAID Support: RAID 0 and 1 for SATA and NVMe SSDs

🌐 Networking

• LAN: Realtek® RTL8125BG 2.5GbE LAN

• Wi-Fi: Realtek® Wi-Fi 6E (802.11ax)

• Bluetooth: 5.3 ALKtech

🎧 Audio

• Codec: Realtek® ALC897

• Channels: 7.1-Channel High Definition Audio

• Features: Audio Noise Guard, High-End Audio Capacitors GIGABYTE Download Center+5Amazon+5Newegg.com+5

⚡ USB Connectivity

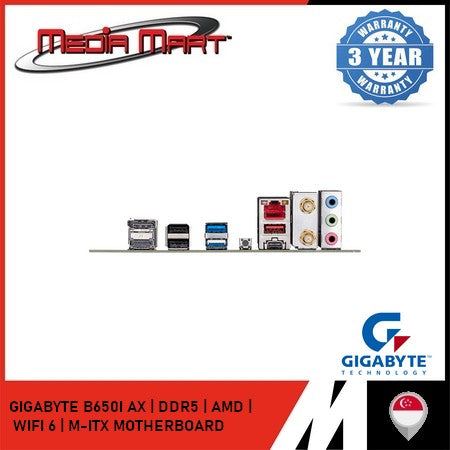

• Rear I/O:

  • 1x USB 3.2 Gen 2 Type-A (10 Gbps)

  • 1x USB 3.2 Gen 1 Type-C (5 Gbps)

  • 2x USB 3.2 Gen 1 Type-A (5 Gbps)

  • 2x USB 2.0 Type-A

  • Q-Flash Plus Button

• Internal Headers:

  • 1x USB 3.2 Gen 1 header (supports 2 ports)

  • 1x USB 3.2 Gen 1 Type-C header

  • 1x USB 2.0 header (supports 2 ports) GIGABYTE+3ALKtech+3GIGABYTE+3

🔧 Internal Connectors

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers: 1x CPU Fan, 2x System Fan

• RGB Headers: 1x 5V ARGB, 1x 12V RGB

📦 Form Factor & Dimensions

• Form Factor: Mini-ITX (170mm x 170mm)

• Weight: Approximately 0.5kg
