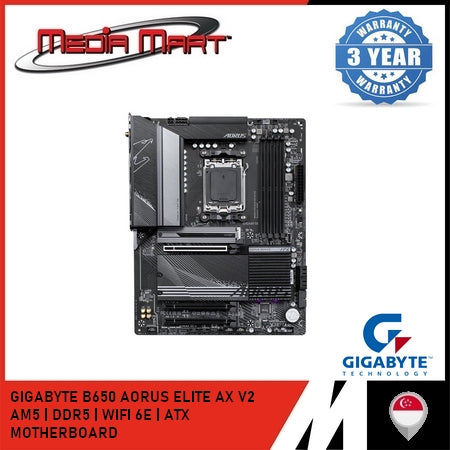

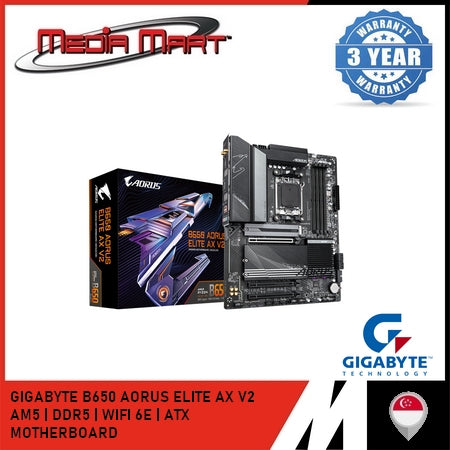

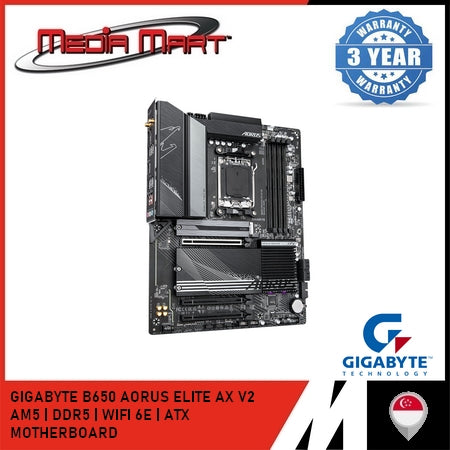

GIGABYTE B650 AORUS ELITE AX V2 AM5 DDR5 ATX MOTHERBOARD

🔧 CPU & Chipset

• Socket: AM5

• Chipset: AMD B650

• Processor Support: AMD Ryzen™ 7000, 8000, and 9000 Series GIGABYTE Download Center+3B&H Photo Video+3GIGABYTE+3AORUS

💾 Memory

• Slots: 4× DDR5 DIMM (Dual Channel)

• Capacity: Up to 192GB

• Speeds: Supports up to DDR5-8000 (OC)

• Profiles: AMD EXPO™ & Intel® XMP 3.0 B&H Photo Video

🎮 Graphics & Display

• Integrated Graphics Support: Yes (CPU-dependent)

• Video Outputs:

  • 1× HDMI

  • 1× DisplayPort GIGABYTE+3B&H Photo Video+3Newegg.com+3

🔌 Expansion Slots

• PCIe x16: 1× PCIe 4.0 x16 with Ultra Durable™ Armor

• PCIe x1: 2× PCIe 3.0 x1 GIGABYTE+1GIGABYTE+1

💽 Storage

• M.2 Slots:

  • 1× PCIe 5.0 x4 (up to 25110)

  • 2× PCIe 4.0 x4 (up to 22110)

• SATA Ports: 4× SATA III 6Gb/s

• RAID Support: RAID 0, 1, and 10 for SATA and NVMe SSDs

🌐 Networking

• LAN: Realtek® 2.5GbE LAN

• Wi-Fi: Wi-Fi 6E (802.11ax)

• Bluetooth: 5.3 Amazon+4B&H Photo Video+4Newegg.com+4

🎧 Audio

• Codec: Realtek® ALC897

• Channels: 7.1-Channel High Definition Audio

• Features: High-End Audio Capacitors, Audio Noise Guard

⚡ USB Connectivity

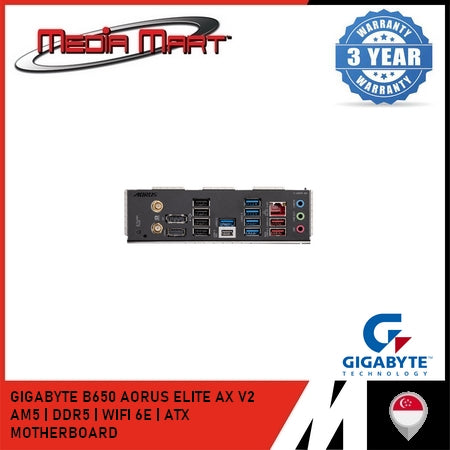

• Rear I/O:

  • 1× USB 3.2 Gen 2x2 Type-C

  • 2× USB 3.2 Gen 2 Type-A

  • 5× USB 3.2 Gen 1 Type-A

  • 4× USB 2.0

• Internal Headers:

  • 1× USB 3.2 Gen 2x2 Type-C

  • 1× USB 3.2 Gen 1 header

  • 2× USB 2.0 headers

🧊 Thermal & Build Features

• VRM Design: 12+2+2 Twin Digital VRM Design

• Cooling: VRM Thermal Armor Advanced with 6mm Heatpipe, 7 W/mk Thermal Pad, Integrated I/O Shield

• EZ-Latch: Quick-release mechanisms for PCIe and M.2 slots

• Multi-Key: RGB Switch, Direct to BIOS, Safe Mode

• Smart Fan 6: Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP GIGABYTE+2AORUS+2Reddit+2GIGABYTEGIGABYTE

📦 Form Factor & Aesthetics

• Form Factor: ATX

• Design: Standard AORUS aesthetic
