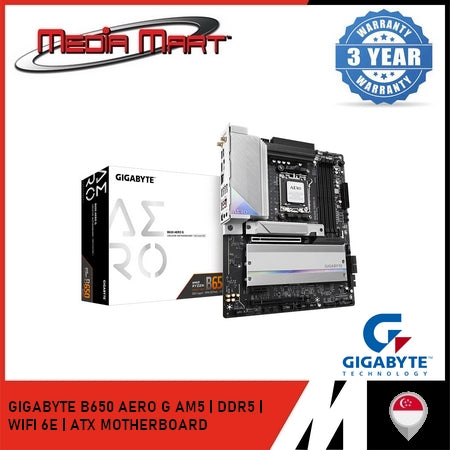

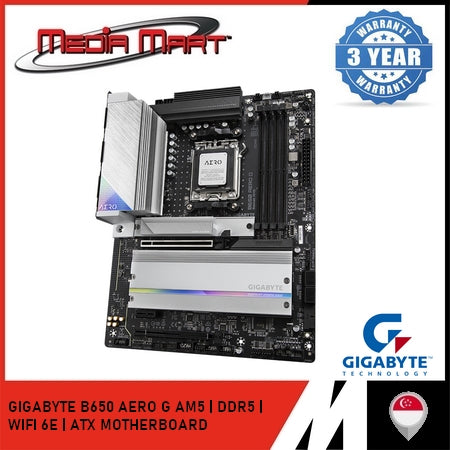

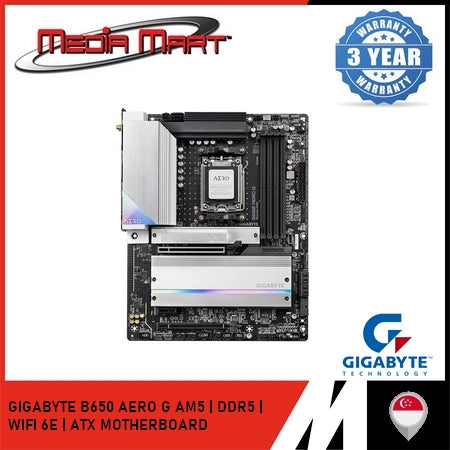

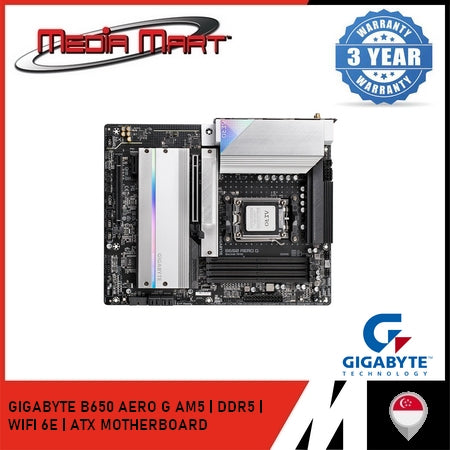

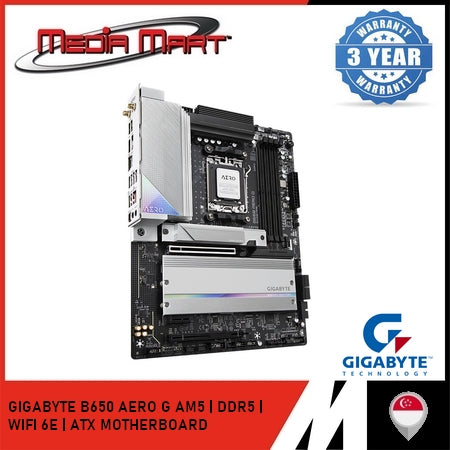

GIGABYTE B650 AERO G AM5 DDR5 ATX MOTHERBOARD

🔧 CPU & Chipset

• Socket: AM5

• Chipset: AMD B650

• Processor Support: AMD Ryzen™ 7000, 8000, and 9000 Series

💾 Memory

• Slots: 4× DDR5 DIMM (Dual Channel)

• Capacity: Up to 192GB

• Speeds: Supports up to DDR5-8000 (OC)

• Profiles: AMD EXPO™ & Intel® XMP 3.0

🎮 Graphics & Display

• Integrated Graphics Support: Yes (CPU-dependent)

• Video Outputs:

  • 1× HDMI 2.1 (max 4K@60Hz)

  • 1× DisplayPort In (for VisionLINK) GIGABYTE+3B&H Photo Video+3Micro Center+3PC Case Gear+3ALKtech+3GIGABYTE+3

🔌 Expansion Slots

• PCIe x16:

  • 1× PCIe 4.0 x16 (reinforced, EZ-Latch)

  • 1× PCIe 4.0 x16 (operates at x4)

• PCIe x1: 1× PCIe 3.0 x1 ALKtech

💽 Storage

• M.2 Slots:

  • 1× PCIe 5.0 x4 (up to 25110)

  • 2× PCIe 4.0 x4 (up to 22110)

• SATA Ports: 4× SATA III 6Gb/s

• RAID Support: RAID 0, 1, and 10 for SATA and NVMe SSDs

🌐 Networking

• LAN: Intel® 2.5GbE LAN

• Wi-Fi: Wi-Fi 6E (802.11ax)

• Bluetooth: 5.2 Micro Center+1GIGABYTE+1

🎧 Audio

• Codec: Realtek® ALC1220-VB

• Channels: 7.1-Channel High Definition Audio

• Features: High-End Audio Capacitors, Audio Noise Guard GIGABYTE

⚡ USB Connectivity

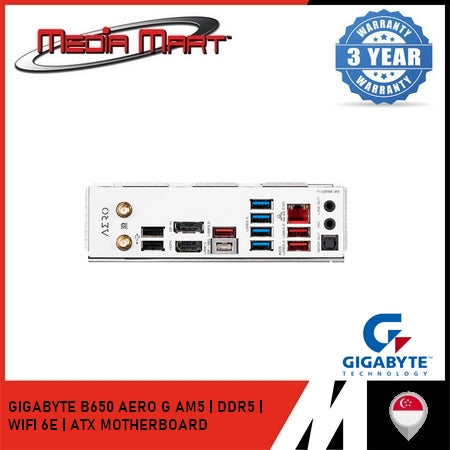

• Rear I/O:

  • 1× USB 3.2 Gen 2x2 Type-C (VisionLINK)

  • 3× USB 3.2 Gen 2 Type-A

  • 4× USB 3.2 Gen 1 Type-A

  • 2× USB 2.0

• Internal Headers:

  • 1× USB 3.2 Gen 2x2 Type-C

  • 1× USB 3.2 Gen 1 header

  • 2× USB 2.0 headers ALKtech+3GIGABYTE+3B&H Photo Video+3

🧊 Thermal & Build Features

• VRM Design: Advanced Thermal Design with M.2 Thermal Guard III

• Cooling: Enlarged VRM and M.2 heatsinks, Smart Fan 6 with multiple temperature sensors and hybrid fan headers

• EZ-Latch: Quick-release mechanisms for PCIe and M.2 slots

• Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card GIGABYTE+3GIGABYTE+3PC Case Gear+3B&H Photo Video

📦 Form Factor & Aesthetics

• Form Factor: ATX

• Design: Black PCB with subtle grey accents and large silver heatsinks; integrated I/O shield; no built-in RGB lighting
