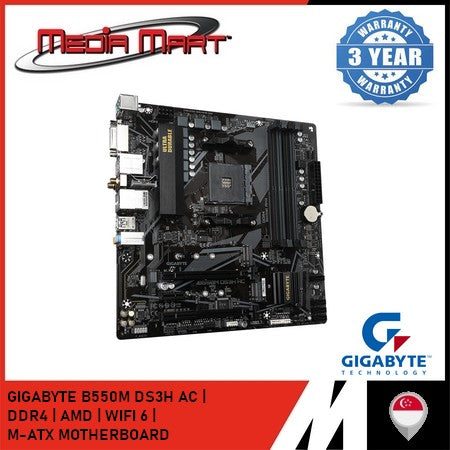

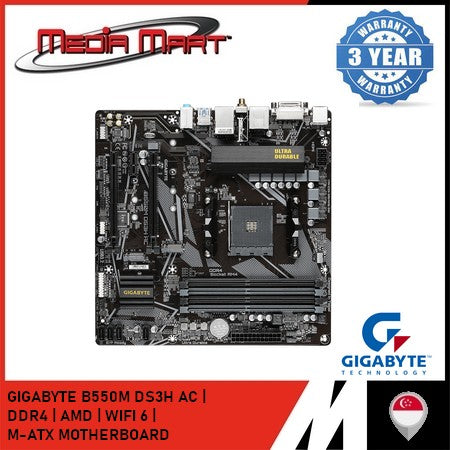

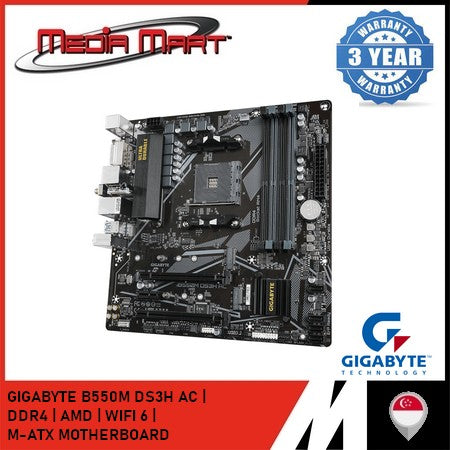

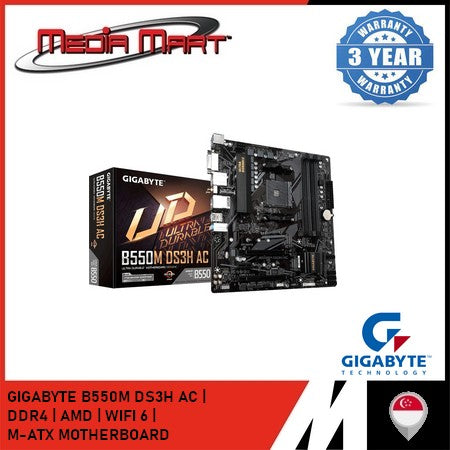

GIGABYTE B550M DS3H AC AM4 DDR4 M-ATX MOTHERBOARD

🛠 GIGABYTE B550M DS3H AC SPECIFICATIONS

🔧 Chipset & CPU Support

• Chipset: AMD B550

• Socket: AM4

• CPU Support: AMD Ryzen™ 5000, 4000 G-Series, 3000, and 3000 G-Series processors GIGABYTE+1GIGABYTE+1

💾 Memory

• Slots: 4x DDR4 DIMM (Dual Channel)

• Capacity: Up to 64GB

• Speeds: 3200MHz (OC up to 4733MHz)

• Type: Non-ECC, Unbuffered

• XMP Support: YesGIGABYTEAmazon+1GIGABYTE+1

🎮 Graphics & Display

• Integrated Graphics Support (CPU Dependent): Yes

• Video Outputs:

  • 1x HDMI 2.1

  • 1x DVI-D

  • 1x DisplayPortGIGABYTE

🔌 Expansion Slots

• PCIe x16 Slot: 1x PCIe 4.0 x16

• PCIe x1 Slots: 2x PCIe 3.0 x1

💽 Storage

• M.2 Slots:

  • 1x M.2 PCIe 4.0 x4 (up to 22110)

  • 1x M.2 PCIe 3.0 x2 / SATA (up to 2280)

• SATA Ports: 4x 6Gbps

• RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1 for NVMeGIGABYTE+2GIGABYTE+2GIGABYTE+2GIGABYTE+2GIGABYTE+2GIGABYTE+2

🌐 Networking

• LAN: Realtek® GbE LAN

• Wi-Fi: Intel® Dual Band 802.11ac Wi-Fi

• Bluetooth: 4.2GIGABYTE+2GIGABYTE+2GIGABYTE+2GIGABYTE+1GIGABYTE+1

🎧 Audio

• Codec: Realtek® ALC887

• Channels: 7.1-Channel High Definition Audio

• Features: Audio Noise Guard, High-End Audio CapacitorsGIGABYTE+2GIGABYTE+2GIGABYTE+2

⚡ USB Connectivity

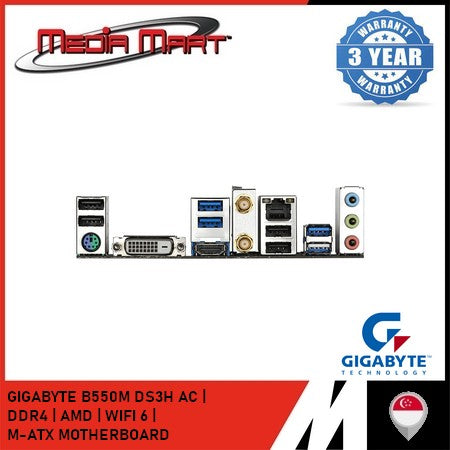

• Rear I/O:

  • 2x USB 3.2 Gen 1 Type-A

  • 4x USB 2.0/1.1

  • 1x USB 3.2 Gen 1 Type-C

• Internal Headers:

  • 2x USB 3.2 Gen 1 headers

  • 2x USB 2.0/1.1 headersPC Themes

🔧 Internal Connectors

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers: 1x CPU Fan, 3x System Fan

• RGB Headers: 1x 5V ARGB, 1x 12V RGB

📦 Form Factor & Dimensions

• Form Factor: Micro-ATX (244mm x 244mm)

• Weight: Approximately 1.0kg
