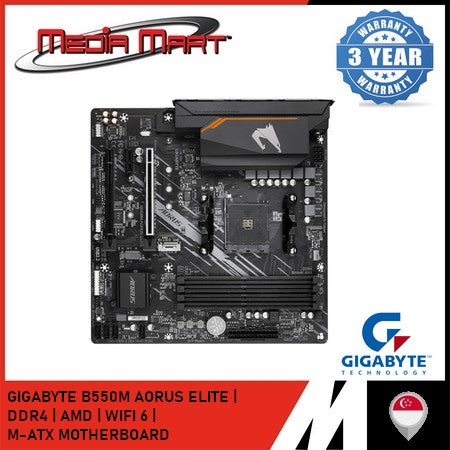

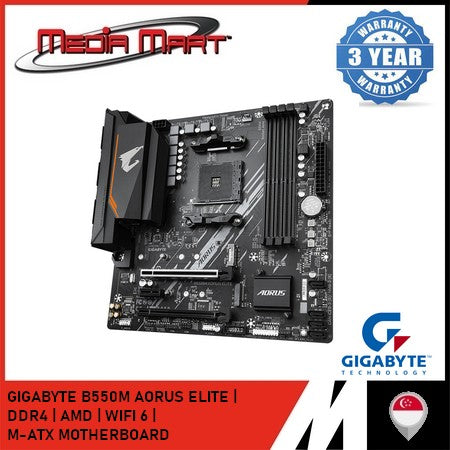

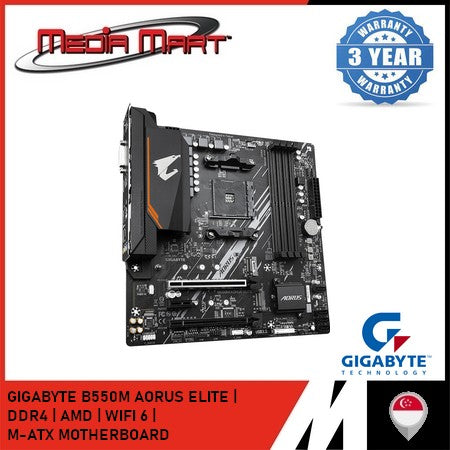

GIGABYTE B550M AORUS ELITE AM4 DDR4 M-ATX MOTHERBOARD

🛠 CHIPSET & CPU SUPPORT

• Chipset: AMD B550

• Socket: AM4

• CPU Support:

  • AMD Ryzen™ 5000 Series

  • AMD Ryzen™ 4000 G-Series

  • AMD Ryzen™ 3000 Series

  • AMD Ryzen™ 3000 G-Series

• BIOS Flashback: Yes (Q-Flash Plus)

💾 MEMORY SPECIFICATIONS

• Memory Slots: 4x DDR4 DIMM, up to 128GB

• Supported Speeds:

  • JEDEC: 2133 / 2400 / 2666 / 2933 / 3200 MT/s

  • Overclocked: Up to 4733 MT/s (OC)

• Memory Features: Dual-Channel, Non-ECC, Un-buffered, Intel XMP 2.0

🎮 GRAPHICS & DISPLAY

• Integrated Graphics Support (CPU Dependent):

  • 1x HDMI™ 2.1: Up to 5120x2880 @ 60Hz

  • 1x DVI-D: Up to 1920x1200 @ 60Hz

• Support for: HDCP 2.3, HDRGIGABYTE Download Center

🔌 EXPANSION SLOTS

• PCI_E1 (Gen 4, x16): PCIe 4.0 x16 (for GPU)

• PCI_E2 (Gen 3, x16): PCIe 3.0 x4 (from Chipset)

• PCI_E3 (Gen 3, x16): PCIe 3.0 x1 (from Chipset)

🎧 AUDIO

• Audio Codec: Realtek® ALC1200

• High Definition Audio: 7.1-Channel

• Capacitors: WIMA Capacitors

• S/PDIF Output Support: Yes

💽 STORAGE SUPPORT

• M.2 Slots (2x):

  • M.2_1 (CPU): PCIe 4.0 x4 (NVMe SSD)

  • M.2_2 (Chipset): PCIe 3.0 x4 / SATA Mode

• SATA Ports: 4x 6Gbps

• RAID Support:

  • SATA: RAID 0, 1, 5, 10

  • NVMe: RAID 0, 1

⚡ USB CONNECTIVITY

• Front Panel:

  • 1x USB 3.2 Gen 1 Type-C

  • 2x USB 3.2 Gen 1 Type-A

  • 4x USB 2.0

• Rear Panel:

  • 1x USB 3.2 Gen 2x2 Type-C

  • 2x USB 3.2 Gen 2 Type-A

  • 2x USB 3.2 Gen 1 Type-A

  • 2x USB 2.0

🌐 NETWORKING

• LAN: Realtek® GbE LAN

• Wireless LAN: Optional (depends on specific model variant)

• Bluetooth: Optional (depends on specific model variant)B&H Photo Video+4GIGABYTE+4Newegg.com+4

🔧 INTERNAL CONNECTORS

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers:

  • 1x CPU Fan

  • 1x Pump Fan

  • 3x System Fans

• RGB Headers:

  • 1x 5V ARGB (3-pin)

  • 1x 12V RGB (4-pin)

📦 PACKAGE DIMENSIONS & FORM FACTOR

• Form Factor: Micro-ATX (244mm x 244mm)

• Weight (Net / Gross): 1.0kg / 1.5kg
