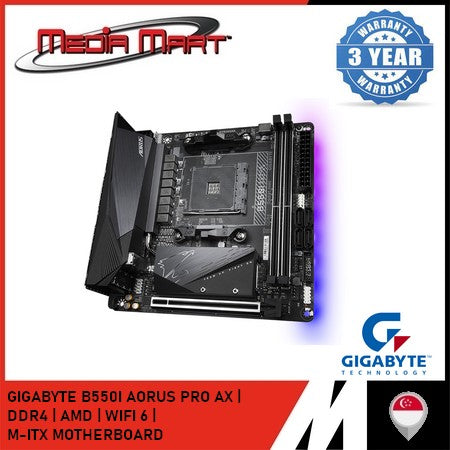

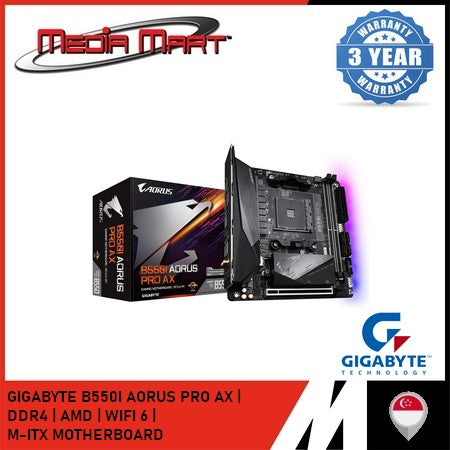

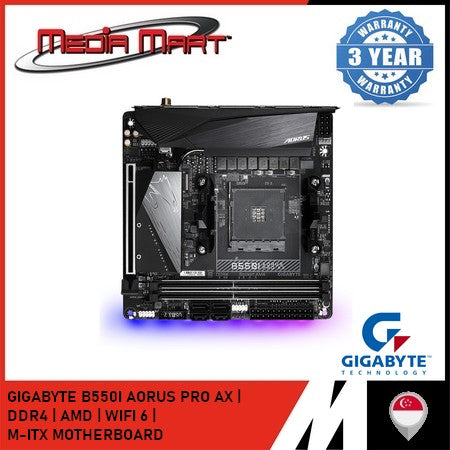

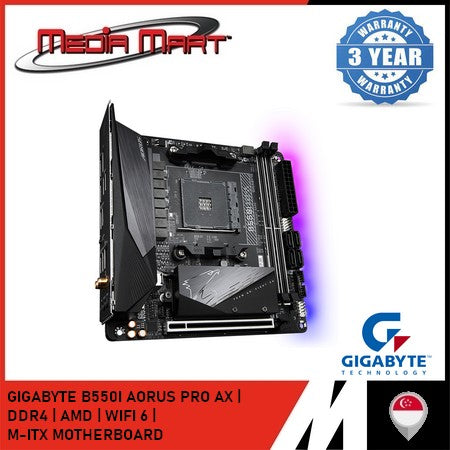

GIGABYTE B550I AORUS PRO AX AM4 DDR4 MINI-ITX MOTHERBOARD

🔧 Chipset & CPU Support

• Chipset: AMD B550

• Socket: AM4

• CPU Support: AMD Ryzen™ 5000, 4000 G-Series, 3000, and 3000 G-Series processors

💾 Memory

• Slots: 2x DDR4 DIMM (Dual Channel)

• Capacity: Up to 64GB

• Speeds: DDR4-5300 (OC)

• Type: Non-ECC, Unbuffered

• XMP Support: YesB&H Photo VideoAmazon+3B&H Photo Video+3TechPowerUp+3

🎮 Graphics & Display

• Integrated Graphics Support (CPU Dependent): Yes

• Video Outputs:

  • 1x HDMI 2.1

  • 1x DisplayPort 1.4

🔌 Expansion Slots

• PCIe x16 Slot: 1x PCIe 4.0 x16

💽 Storage

• M.2 Slots:

  • 1x M.2 PCIe 4.0 x4 (up to 2280)

  • 1x M.2 PCIe 3.0 x4 / SATA (up to 2280)

• SATA Ports: 4x 6Gbps

• RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1 for NVMe

🌐 Networking

• LAN: Realtek® RTL8125 2.5GbE LAN

• Wi-Fi: Intel® Wi-Fi 6 AX200 (802.11ax)

• Bluetooth: 5.0TechPowerUp+5TechPowerUp+5AORUS+5GIGABYTE Download Center+1B&H Photo Video+1

🎧 Audio

• Codec: Realtek® ALC1220-VB

• Channels: 7.1-Channel High Definition Audio

• Features: Nichicon Audio Capacitors, Rear 120dB SNR Amazon+1AnandTech+1

⚡ USB Connectivity

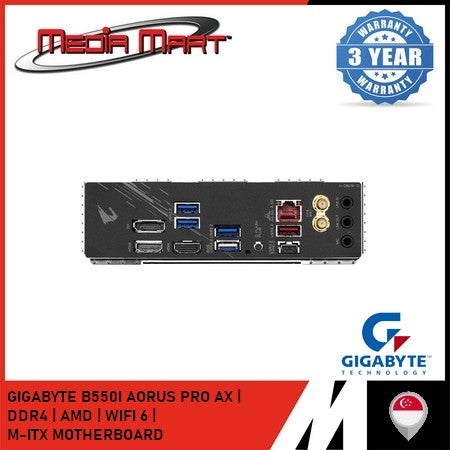

• Rear I/O:

  • 2x USB 3.2 Gen 2 Type-A

  • 2x USB 3.2 Gen 1 Type-A

  • 2x USB 2.0/1.1

• Internal Headers:

  • 1x USB 3.2 Gen 2 Type-C

  • 1x USB 3.2 Gen 1 header

  • 2x USB 2.0/1.1 headers

🔧 Internal Connectors

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers: 1x CPU Fan, 2x System Fan

• RGB Headers: 1x 5V ARGB, 1x 12V RGB

📦 Form Factor & Dimensions

• Form Factor: Mini-ITX (170mm x 170mm)

• Weight: Approximately 0.5kg
