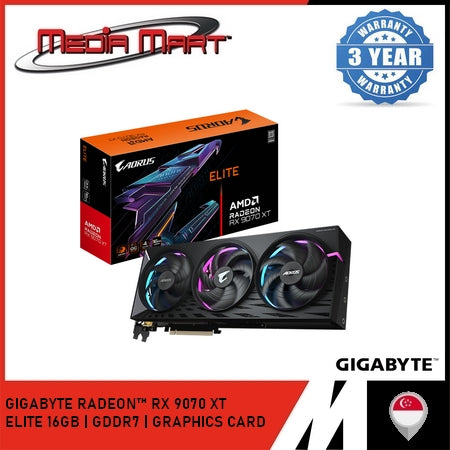

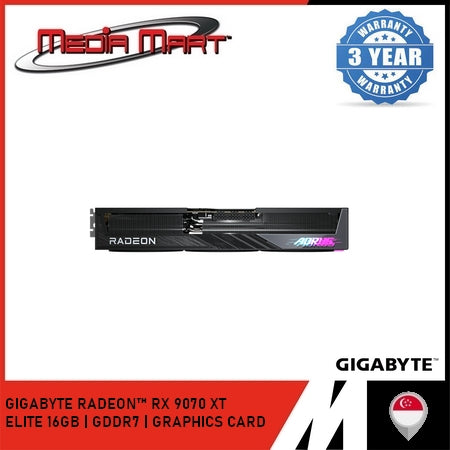

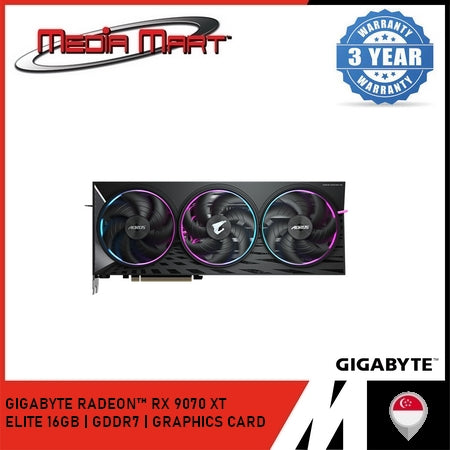

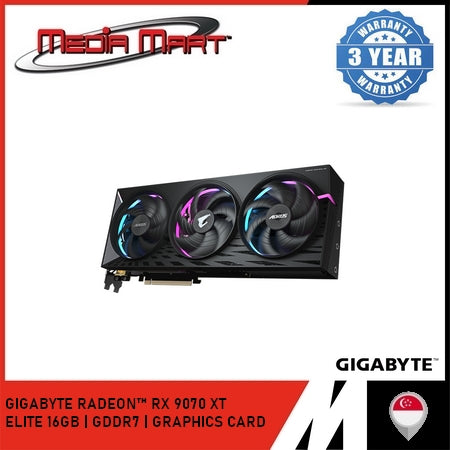

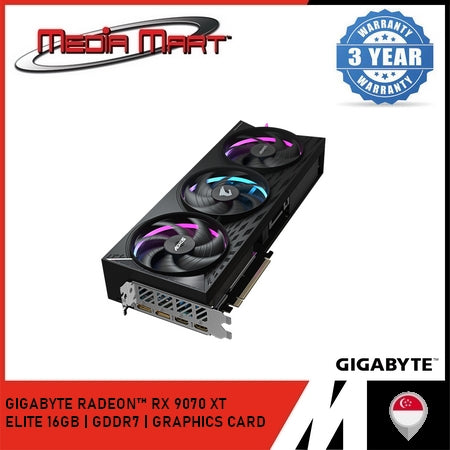

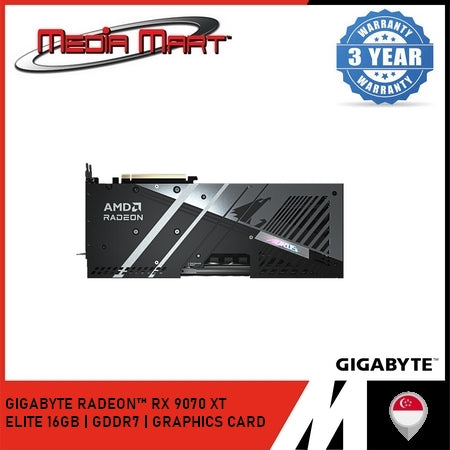

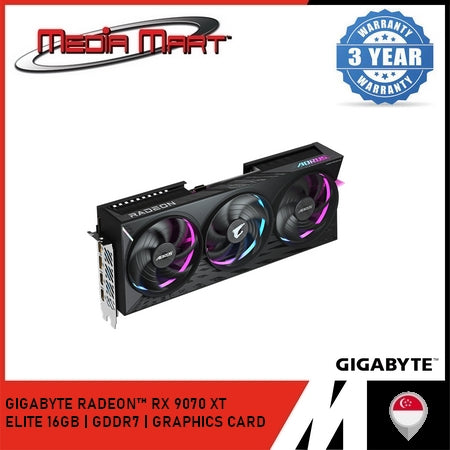

GIGABYTE AORUS RADEON™ RX 9070 XT ELITE 16G GRAPHICS CARD

🔧 Specifications

• GPU: AMD Radeon RX 9070 XT (Navi 48 XTX)

• Architecture: RDNA 4, built on TSMC's 4nm N4P process

• Stream Processors: 4,096

• AI Accelerators: 128

• Ray Accelerators: 64

• Base Clock: 1,870 MHz

• Game Clock: 2,570 MHz

• Boost Clock: Up to 3,100 MHz

• Memory: 16 GB GDDR6

• Memory Interface: 256-bit

• Memory Speed: 20 Gbps effective

• Memory Bandwidth: 644.6 GB/s

• Bus Interface: PCIe 5.0 x16

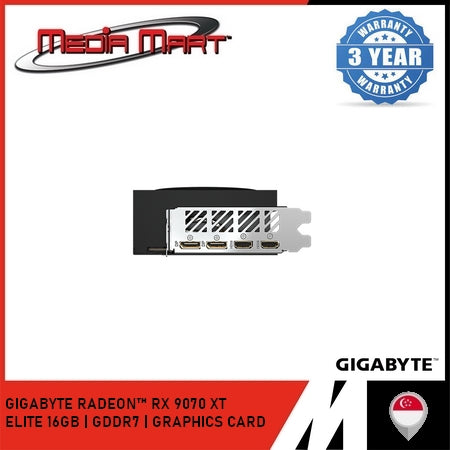

• Display Outputs: 2 x DisplayPort 2.1a, 2 x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connectors: 3 x 8-pin PCIe

• Recommended PSU: 850W

❄️ Cooling & Design

• Cooling System: WINDFORCE with Hawk fan and server-grade thermal conductive gel

• RGB Lighting: RGB Halo for customizable lighting effects

• Dual BIOS: Switch between Performance and Silent modes

• Reinforced Structure: Enhanced durability and anti-sag design

• Versatile VGA Holder: Supports the card's weight in various chassis

• Warranty: 4 years (online registration required)

📐 Dimensions & Weight

• Length: 339 mm (13.3 inches)

• Width: 136 mm (5.4 inches)

• Height: 59 mm (2.3 inches)

• Slot Width: Triple-slot

• Weight: Approximately 1.59 kg (3.5 lbs)

🧠 Performance & Features

• Ray Tracing & AI: Enhanced ray tracing capabilities and AI-driven features with AMD's latest technologies

• AMD HYPR-RX6: Instantly enables supported performance-boosting and latency-reducing technologies across numerous games

• FSR 4: Advanced upscaling technology for improved frame rates and image quality

• DirectX 12 Ultimate Support: Ensures compatibility with the latest gaming features
