GIGABYTE AORUS GEFORCE RTX™ 5090 XTREME WATERFORCE 32G GRAPHICS CARD

🔧 Specifications

• GPU: NVIDIA GeForce RTX 5090 (Blackwell architecture)

• CUDA Cores: 21,760

• Tensor Cores: 680 (5th Gen)

• Ray Tracing Cores: 170 (4th Gen)

• Base Clock: 2,017 MHz

• Boost Clock: 2,655 MHz

• Memory: 32 GB GDDR7

• Memory Interface: 512-bit

• Memory Speed: 28 Gbps effective

• Memory Bandwidth: 1.79 TB/s

• Bus Interface: PCIe 5.0 x16

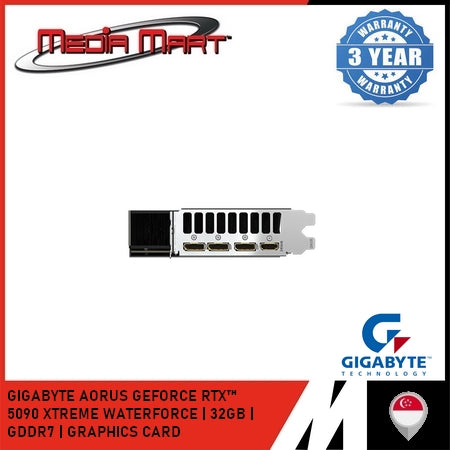

• Display Outputs: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connectors: 1 x 16-pin (12V-2x6)

• Recommended PSU: 1000W

❄️ Cooling & Design

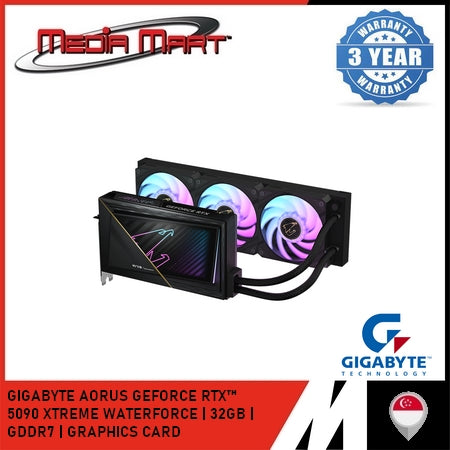

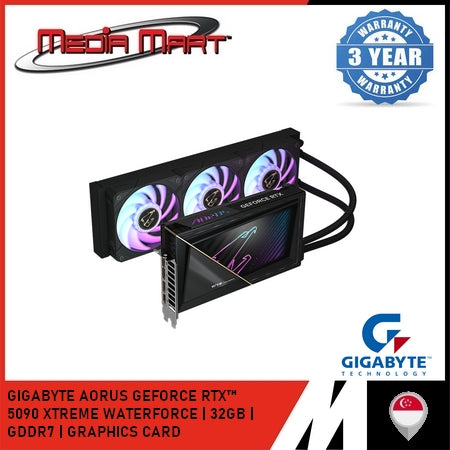

• Cooling System: WATERFORCE all-in-one liquid cooling system featuring:

  • Liquid metal thermal grease for GPU

  • Server-grade thermal conductive gel

  • 360mm radiator with three 120mm ARGB fans

• RGB Lighting: Customizable RGB lighting effects

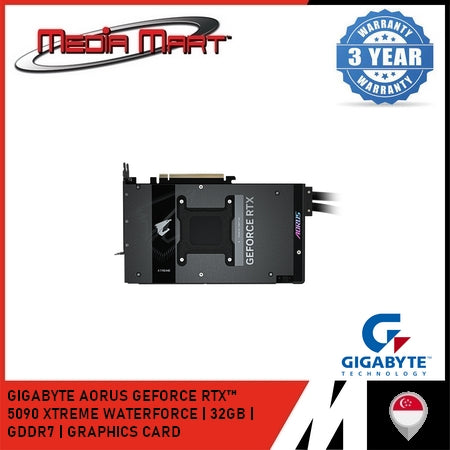

• Protective Features: Metal backplate for enhanced durability

• Warranty: 4 years (online registration required)

📐 Dimensions & Weight

• Length: 245 mm

• Width: 146 mm

• Height: 34 mm

• Weight: Approximately 1 kg (2.2 lbs)

🧠 Performance & Features

• AI & Rendering Technologies:

  • DLSS 4 with Multi Frame Generation

  • NVIDIA Reflex 2 with Frame Warp

  • Full ray tracing with neural rendering

  • NVIDIA ACE for digital humans and AI assistants

• Creative Tools: NVIDIA Studio creator tools and technology

• Video Enhancement: NVIDIA Broadcast and 9th-gen NVIDIA Encoder

• Display Technologies: NVIDIA G-SYNC support
