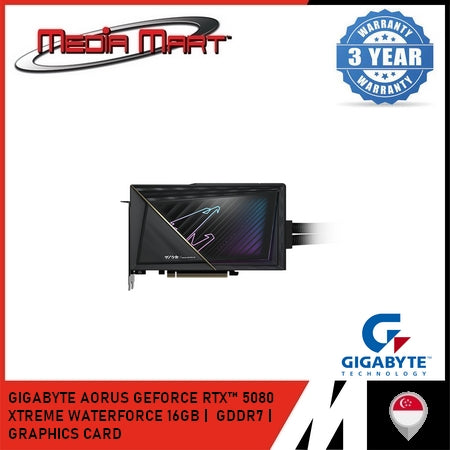

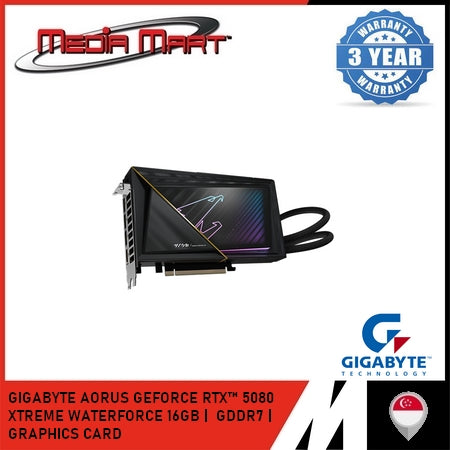

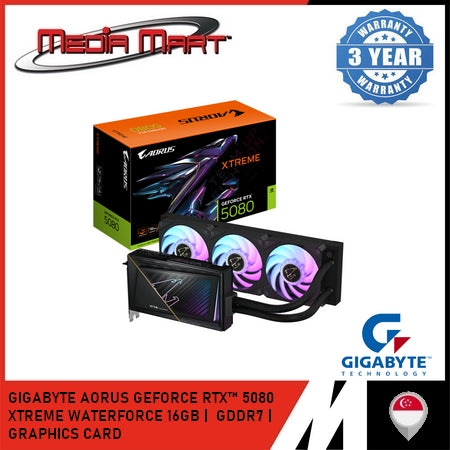

GIGABYTE AORUS GEFORCE RTX™ 5080 XTREME WATERFORCE 16G GRAPHICS CARD

🔧 Core Specifications

• GPU Architecture: NVIDIA Blackwell (GB203)

• CUDA Cores: 10,752

• Tensor Cores: 336 (5th Gen)

• Ray Tracing Cores: 84 (4th Gen)

• Memory: 16GB GDDR7, 256-bit interface

• Memory Bandwidth: 960 GB/s

• Base Clock: 2,295 MHz

• Boost Clock: 2,805 MHz (factory overclocked)

• Memory Speed: 30 Gbps effective

• Interface: PCIe 5.0 x16

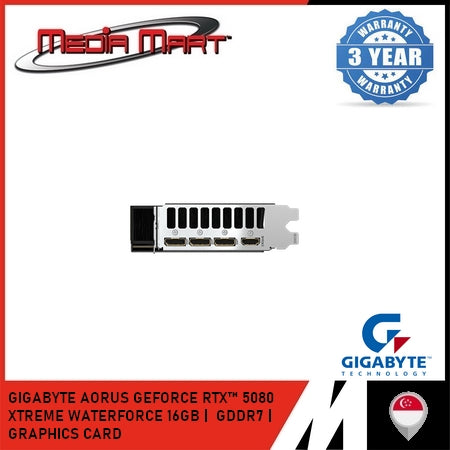

• Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connector: 1x 16-pin

• Recommended PSU: 850W

❄️ Cooling & Design

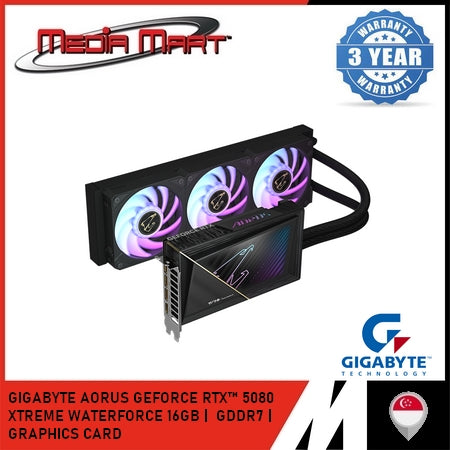

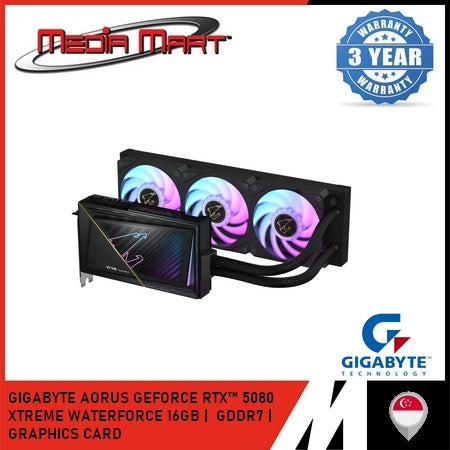

• WATERFORCE All-in-One Cooling System:

  • 360mm radiator with three 120mm ARGB fans

  • Liquid metal thermal grease for GPU

  • Efficient cooling for GPU, VRAM, and MOSFETs

• RGB Lighting: Customizable lighting effects

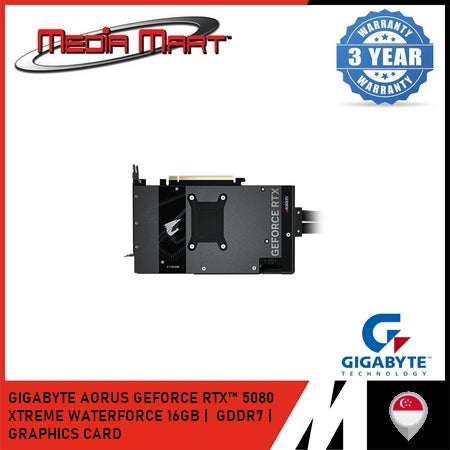

• Protective Metal Back Plate: Enhances durability and prevents PCB bending

• Warranty: 4 years (online registration required)

📐 Dimensions & Weight

• Card Length: Approximately 220 mm (8.66 inches)

• Card Width: Approximately 130 mm (5.12 inches)

• Slot Width: Dual-slot

• Weight: Approximately 2.7 kg (5.95 lbs)

🧠 AI & Rendering Technologies

• DLSS 4 with Multi Frame Generation: Utilizes AI to boost frame rates and image quality

• NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming

• Full Ray Tracing: Delivers realistic lighting and shadows

• NVIDIA ACE: Supports AI-driven digital humans and assistants

• NVIDIA Studio: Optimized for creative applications and workflows
