GIGABYTE A620M GAMING X AX

🔧 Chipset & CPU Support

• Chipset: AMD A620

• Socket: AM5

• CPU Support: AMD Ryzen™ 7000 and 8000 Series ProcessorsNewegg.com+1Amazon+1

💾 Memory

• Slots: 4x DDR5 DIMM (Dual Channel)

• Capacity: Up to 96GB

• Speeds: DDR5-6400 (OC), 6200, 6000, 5600, 5200, 4800, 4400 MT/s

• Type: Non-ECC, Unbuffered

• XMP/EXPO Support: YesTweakTown+2GIGABYTE+2Newegg.com+2Newegg.com

🎮 Graphics & Display

• Integrated Graphics Support (CPU Dependent): Yes

• Video Outputs:

  • 1x HDMI

  • 1x DisplayPortAmazon+1TweakTown+1

🔌 Expansion Slots

• PCIe x16 Slot: 1x PCIe 4.0 x16

• PCIe x1 Slot: 1x PCIe 3.0 x1Amazon

💽 Storage

• M.2 Slots:

  • 1x M.2 PCIe 4.0 x4 (up to 2280)

• SATA Ports: 4x 6Gbps

• RAID Support: RAID 0 and RAID 1 for SATA and NVMe SSDsNewegg.com

🌐 Networking

• LAN: Realtek® GbE LAN

• Wi-Fi: Realtek® Wi-Fi 6E (802.11ax)

• Bluetooth: 5.2Newegg.com

🎧 Audio

• Codec: Realtek® ALC897

• Channels: 7.1-Channel High Definition Audio

• Features: Audio Noise Guard, High-End Audio CapacitorsGIGABYTE

⚡ USB Connectivity

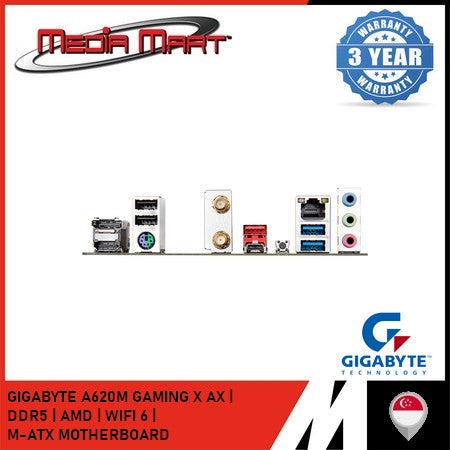

• Rear I/O:

  • 1x USB 3.2 Gen 2x2 Type-C

  • 1x USB 3.2 Gen 2 Type-A

  • 2x USB 3.2 Gen 1 Type-A

  • 2x USB 2.0/1.1

• Internal Headers:

  • 1x USB 3.2 Gen 1 header

  • 2x USB 2.0/1.1 headers

🔧 Internal Connectors

• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU_PWR

• Cooling Headers: 1x CPU Fan, 3x System Fan

• RGB Headers: 1x 5V ARGB, 1x 12V RGB

📦 Form Factor & Dimensions

• Form Factor: Micro-ATX (244mm x 244mm)

• Weight: Approximately 1.0kg
