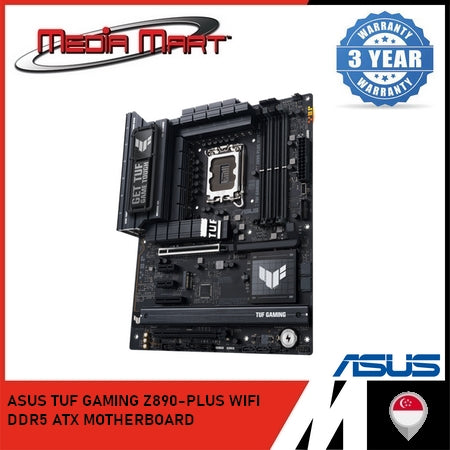

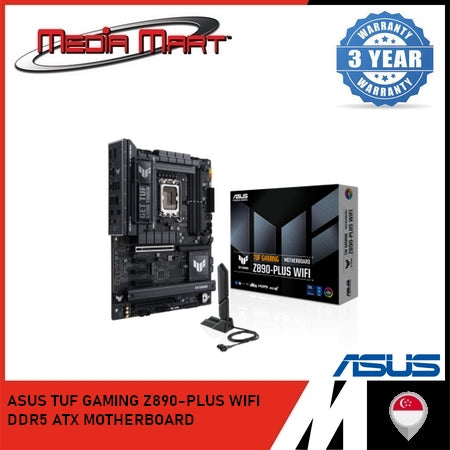

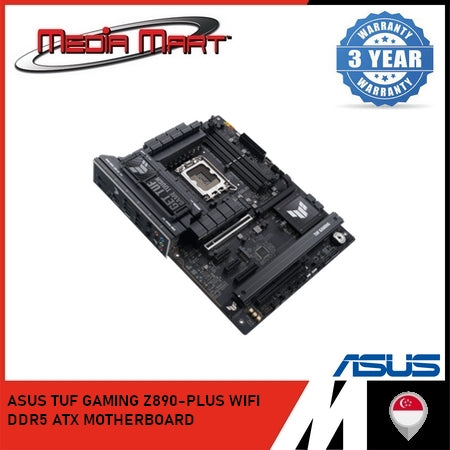

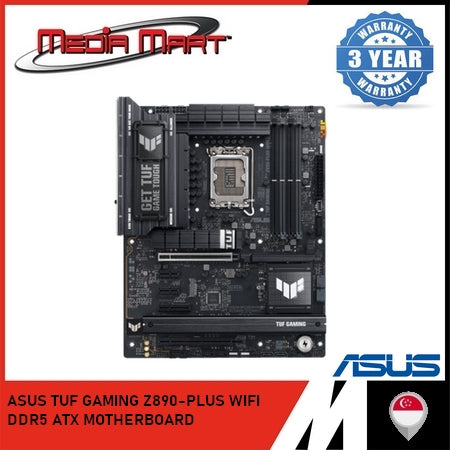

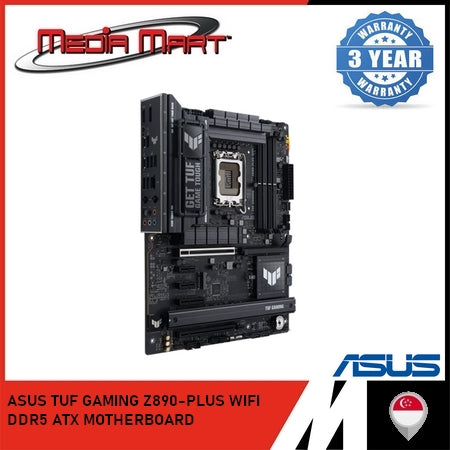

ASUS TUF GAMING Z890-PLUS WIFI

🛠 Chipset & CPU Support:
Model: TUF GAMING Z890-PRO WIFI
Chipset: Intel® Z890 Chipset
CPU Support: Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Overclocked: Up to 9066+ MT/s (OC)
Supports Dual-Channel, Non-ECC, Un-buffered memory, XMP, ASUS AEMP III, CUDIMM
🎮 Graphics & Display:
1x DisplayPort 1.4: Up to 4K @ 60Hz
1x HDMI™ 2.1: Up to 4K @ 60Hz
2x Thunderbolt™ 4 (USB Type-C®): Supports DisplayPort and Thunderbolt™ video output (up to 8K@60Hz or dual 4K@60Hz)
🔌 Expansion Slots:
From CPU:
1x PCIe 5.0 x16 slot (x16 mode)
From Chipset:
1x PCIe 4.0 x16 slot (x4 mode)
1x PCIe 4.0 x4 slot
2x PCIe 4.0 x1 slots
💽 Storage Support:
M.2 Slots:
M.2_1 (CPU): PCIe 5.0 x4, 2242/2260/2280
M.2_2 (CPU): PCIe 4.0 x4, 2280
M.2_3 (Chipset): PCIe 4.0 x4, 2280/22110
M.2_4 (Chipset): PCIe 4.0 x4 & SATA, 2242/2260/2280
SATA Ports:
4x SATA 6Gb/s
RAID Support:
Intel® Rapid Storage Technology supports RAID 0/1/5/10 for both PCIe and SATA
🎧 Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance sensing (front/rear)
Internal Amplifier, Jack-detection, Multi-streaming
120dB SNR stereo output / 113dB SNR input
Supports 32-Bit/192 kHz playback (stereo)
Audio Shielding, Premium Capacitors, Optical S/PDIF Out
⚡ USB Connectivity:

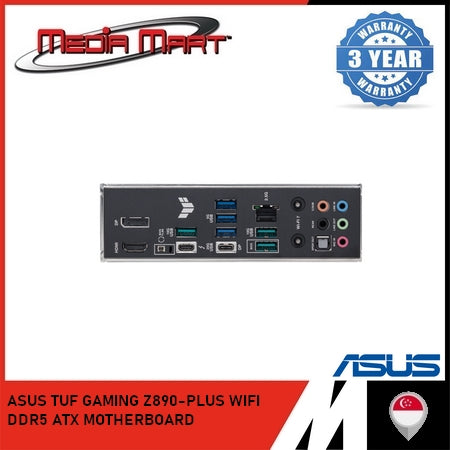

Rear:
2x Thunderbolt™ 4 (USB Type-C®)
6x USB 10Gbps (Type-A)
Front:
1x USB 20Gbps (USB Type-C® with 30W PD/PPS)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN: Intel® 2.5Gb Ethernet with TUF LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 2.9Gbps
Bluetooth: v5.4
🔧 Internal Connectors:
Power:
1x 24-pin ATX_PWR
2x 8-pin CPU_PWR
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
4x Chassis Fan
Storage:
4x M.2 Slots
4x SATA 6Gb/s
USB:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable RGB Gen2 headers
1x Clear CMOS header
1x Chassis Intrusion header
1x COM Port header
1x Front Panel Audio header
1x 10-1 pin Front Panel header
1x Thermal Sensor header
1x Thunderbolt™ (USB4®) header
🔆 LED & Special Features:
ASUS TUF Protection:
DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O
ASUS Q-Design:
M.2 Q-Latch, Q-Release, Q-Slide, Q-Antenna, Q-DIMM, Q-Slot, Q-LED (CPU, DRAM, VGA, Boot)
Thermal:
M.2 heatsinks & backplate, VRM heatsink
DIY Features:
BIOS FlashBack™ button & LED, Pre-mounted I/O shield, SafeDIMM, CPU Socket Lever Protector
Aura Sync:
Addressable Gen2 headers
Front USB-C PD Fast Charge:
Supports up to 30W output (5V/9V/12V/15V)
USB Wattage Watcher, Compatible with PD3.0
📦 Included Accessories:
ASUS WiFi Q-Antenna
2x SATA 6Gb/s cables
M.2 Q-Slide & rubber packages, SSD screw kit
TUF GAMING sticker & removable nameplate
Quick start guide
🖥 Operating System:
Support for Windows® 11 (22H2 & later)
📦 Package Dimensions & Form Factor:
Form Factor: ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
