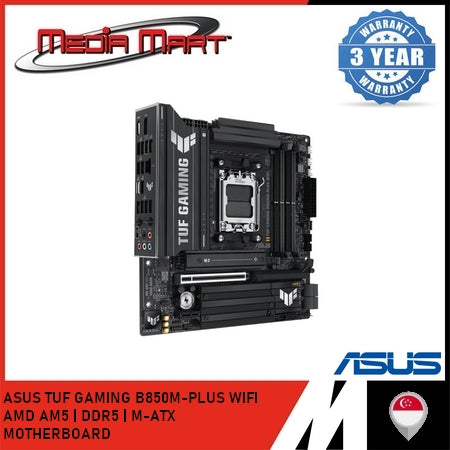

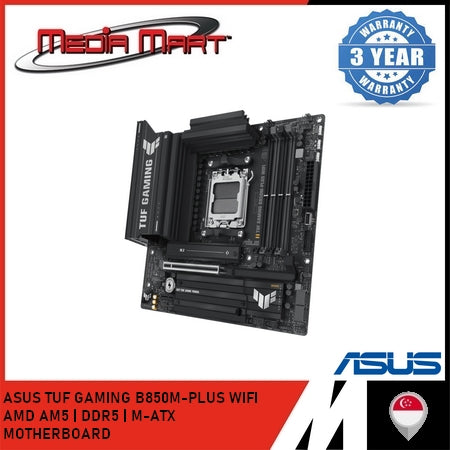

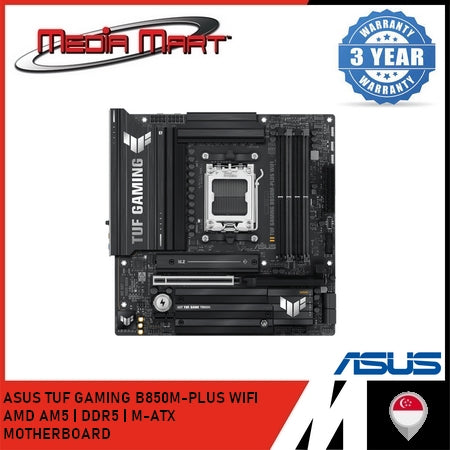

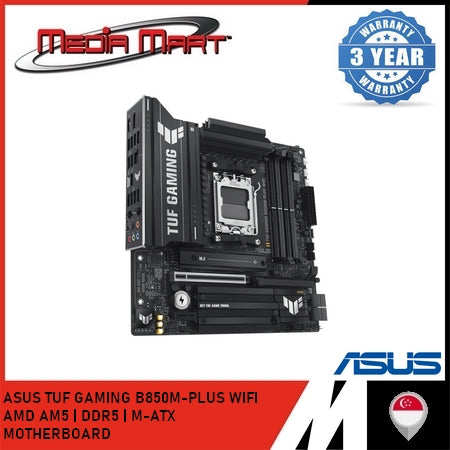

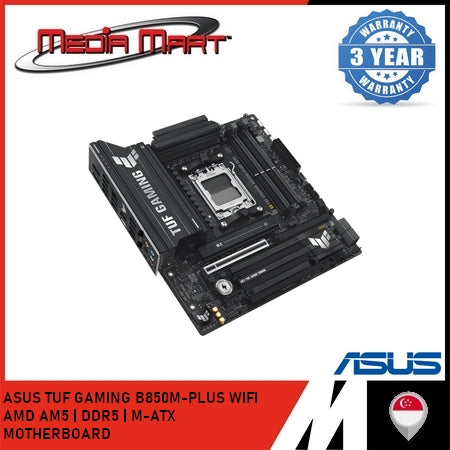

ASUS TUF GAMING B850M-PLUS WIFI AMD AM5 | DDR5 | M-ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: TUF GAMING B850M-PLUS WIFI
Chipset: AMD B850
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
*Non-ECC Un-buffered DDR5 supports On-Die ECC
🎮 Graphics & Display:
1x DisplayPort 1.4 (up to 8K @ 30Hz)*
1x HDMI™ 2.1 port (up to 4K @ 60Hz)*
*Graphics specifications may vary between CPU types.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000:
1x PCIe 5.0 x16
With Ryzen™ 8000:
1x PCIe 4.0 x16 (x8/x4 mode)
Chipset:
1x PCIe 4.0 x1 slot
💽 Storage Support:
3x M.2 slots:
Ryzen™ 9000/7000:
M.2_1: PCIe 5.0 x4 (2280)
M.2_2: PCIe 4.0 x4 (2242/2260/2280)
Ryzen™ 8000:
M.2_1: PCIe 4.0 x4
M.2_2: PCIe 4.0 x4/x2
Chipset:
M.2_3: PCIe 4.0 x4 (2280)
4x SATA 6Gb/s ports
RAID Support:
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10
🎧 Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance sensing, multi-streaming, front panel jack-retasking
120 dB SNR playback, 113 dB SNR recording
Up to 32-Bit/192 kHz playback (stereo)*
Audio Features:
Audio shielding, premium capacitors, dedicated PCB layers, audio cover, de-pop circuit
*32-Bit/192 kHz not supported for 7.1 surround due to HDA bandwidth.
⚡ USB Connectivity:

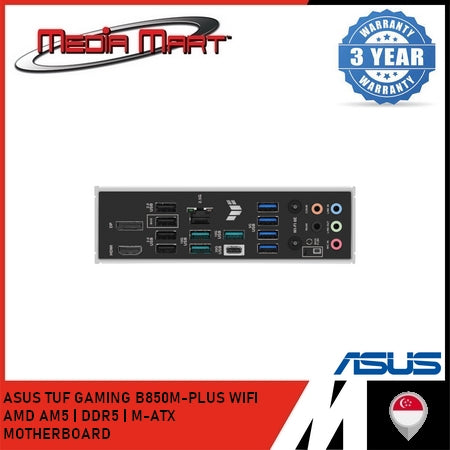

Rear:
1x USB 20Gbps (Type-C®)
3x USB 10Gbps (Type-A)
4x USB 5Gbps (Type-A)
4x USB 2.0 (Type-A)
Front:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (3 ports)
*USB-C front panel: max 5V/3A output
🌐 Networking:
LAN:
1x Realtek 2.5Gb Ethernet with TUF LANGuard
Wi-Fi:
Wi-Fi 6E (2x2, 802.11ax), 2.4/5/6GHz bands
Bluetooth: v5.3
*Wi-Fi 6E support varies by country; requires Windows 11 or later.
🔧 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin +12V CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
3x Chassis Fan headers
Storage:
3x M.2 Slots
4x SATA
USB:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (3 ports)
Misc:
3x Addressable Gen2 headers
1x Clear CMOS header
1x Chassis Intrusion header
1x COM Port header
1x Front Panel Audio header
1x 10-1 pin System Panel header
🔆 LED & Special Features:
ASUS TUF PROTECTION:
DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O
ASUS Q-Design:
M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-DIMM, Q-LED, Q-Dashboard
Thermal Solutions:
M.2 heatsink, VRM heatsinks
DIY Tools:
BIOS FlashBack™, BIOS LED, Pre-mounted I/O shield, ProCool, SafeDIMM
Aura Sync:
Addressable Gen2 RGB headers
🧰 Software Features:
ASUS Exclusive:
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4, ASUS DriverHub, GlideX, TurboV Core, TUF GAMING CPU-Z, Power Saving
Bundled Software:
DTS Audio Processing, Norton 360 for Gamers (60-day trial), WinRAR (40-day trial), Adobe Creative Cloud (Free Trial)
UEFI BIOS:
EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey
BIOS:
256Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
📦 Included Accessories:
WiFi Q-Antenna
2x SATA 6Gb/s cables
TUF GAMING sticker
2x M.2 rubber packages
1x M.2 screw package
Quick Start Guide
🖥 Operating System:
Support for Windows® 11, Windows® 10 64-bit
📐 Package Dimensions & Form Factor:
Form Factor: micro-ATX (9.6 x 9.6 in / 24.4 x 24.4 cm)
