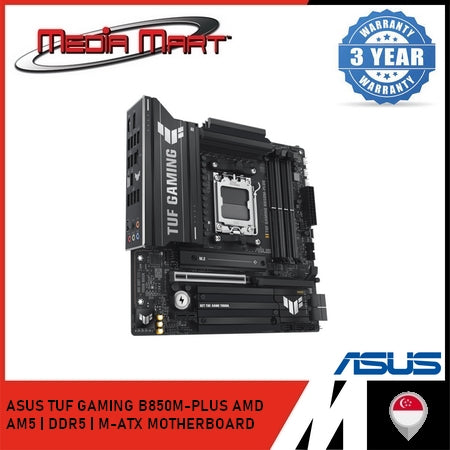

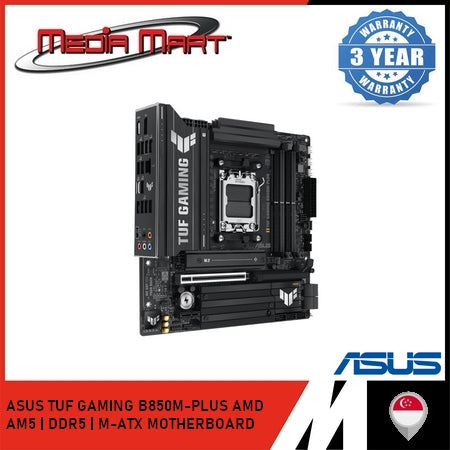

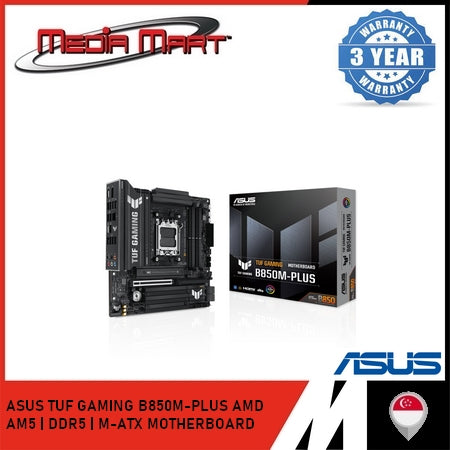

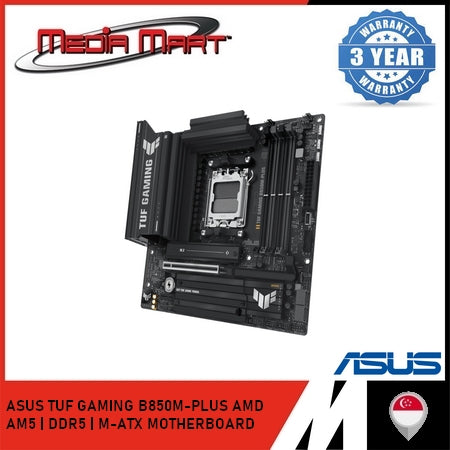

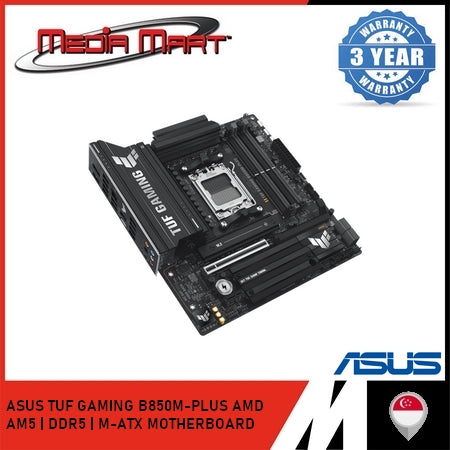

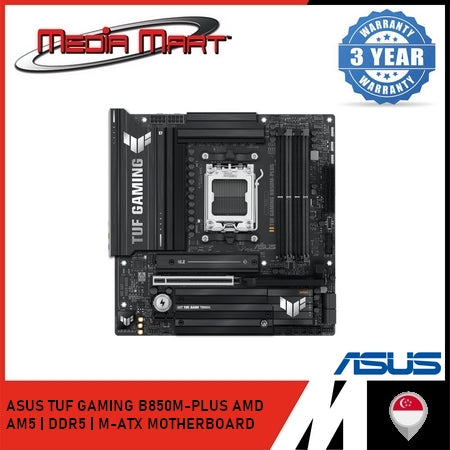

ASUS TUF GAMING B850M-PLUS AMD AM5 | DDR5 | M-ATX MOTHERBOARD

🛠 Chipset & CPU Support: Model: TUF GAMING B850M-PLUS Chipset: AMD B850 CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors *Refer to ASUS support site for full CPU compatibility. 💾 Memory Specifications: Memory Slots: 4x DDR5 DIMM, up to 256GB Supported Speeds: Up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP *Non-ECC Un-buffered DDR5 supports On-Die ECC 🎮 Graphics & Display: 1x DisplayPort 1.4 (up to 8K @ 30Hz)* 1x HDMI™ 2.1 port (up to 4K @ 60Hz)* *Graphics specifications may vary between CPU types. 🔌 Expansion Slots: With Ryzen™ 9000 & 7000: 1x PCIe 5.0 x16 With Ryzen™ 8000: 1x PCIe 4.0 x16 (x8/x4 mode) Chipset: 1x PCIe 4.0 x1 slot 💽 Storage Support: 3x M.2 slots: Ryzen™ 9000/7000: M.2_1: PCIe 5.0 x4 (2280) M.2_2: PCIe 4.0 x4 (2242/2260/2280) Ryzen™ 8000: M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4/x2 Chipset: M.2_3: PCIe 4.0 x4 (2280) 4x SATA 6Gb/s ports RAID Support: Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 🎧 Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sensing, multi-streaming, front panel jack-retasking 120 dB SNR playback, 113 dB SNR recording Up to 32-Bit/192 kHz playback (stereo)* Audio Features: Audio shielding, premium capacitors, dedicated PCB layers, audio cover, de-pop circuit *32-Bit/192 kHz not supported for 7.1 surround due to HDA bandwidth. ⚡ USB Connectivity: Rear: 1x USB 20Gbps (Type-C®) 3x USB 10Gbps (Type-A) 4x USB 5Gbps (Type-A) 4x USB 2.0 (Type-A) Front: 1x USB 10Gbps (Type-C®) 1x USB 5Gbps header (2 ports) 2x USB 2.0 headers (4 ports) *USB-C front panel: max 5V/3A output 🌐 Networking: LAN: 1x Realtek 2.5Gb Ethernet with TUF LANGuard Wi-Fi: Not included on this model 🔧 Internal Connectors: Power: 1x 24-pin ATX 2x 8-pin +12V CPU Cooling: 1x CPU Fan 1x CPU OPT Fan 1x AIO Pump 3x Chassis Fan headers Storage: 3x M.2 Slots 4x SATA USB: 1x USB 10Gbps (Type-C®) 1x USB 5Gbps header (2 ports) 2x USB 2.0 headers (4 ports) Misc: 3x Addressable Gen2 headers 1x Clear CMOS header 1x Chassis Intrusion header 1x COM Port header 1x Front Panel Audio header 1x 10-1 pin System Panel header 🔆 LED & Special Features: ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LED, Q-Dashboard Thermal Solutions: M.2 heatsink, VRM heatsinks DIY Tools: BIOS FlashBack™, BIOS LED, Pre-mounted I/O shield, ProCool, SafeDIMM Aura Sync: Addressable Gen2 RGB headers 🧰 Software Features: ASUS Exclusive: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4, ASUS DriverHub, TurboV Core, TUF GAMING CPU-Z, Power Saving Bundled Software: DTS Audio Processing, Norton 360 for Gamers (60-day trial), WinRAR (40-day trial), Adobe Creative Cloud (Free Trial) UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey BIOS: 256Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE 📦 Included Accessories: 2x SATA 6Gb/s cables TUF GAMING sticker 2x M.2 rubber packages 1x M.2 screw package Quick Start Guide 🖥 Operating System: Support for Windows® 11, Windows® 10 64-bit 📐 Package Dimensions & Form Factor: Form Factor: micro-ATX (9.6 x 9.6 in / 24.4 x 24.4 cm)
