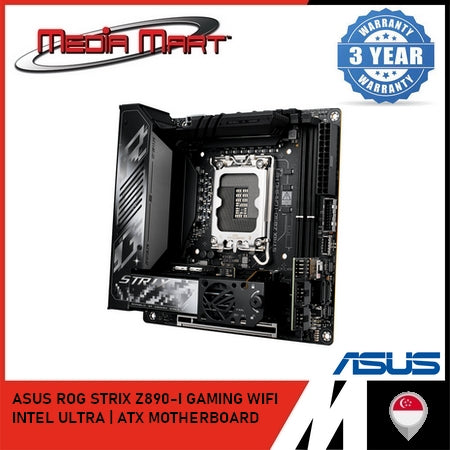

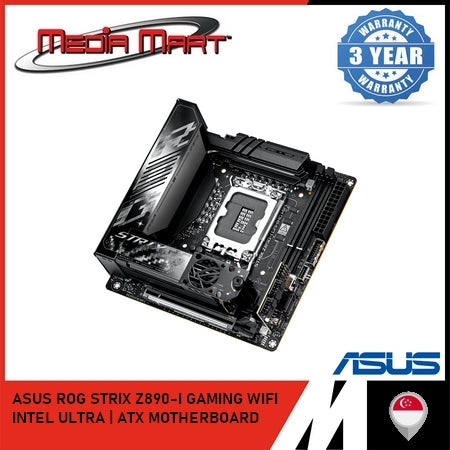

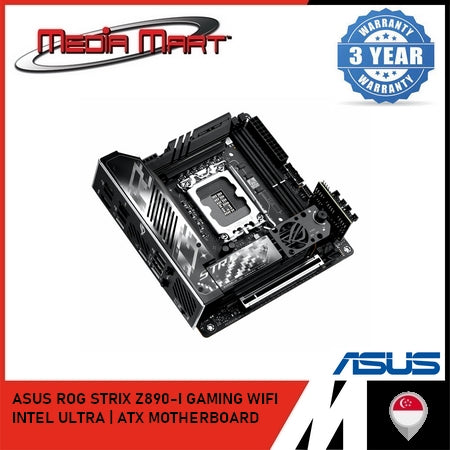

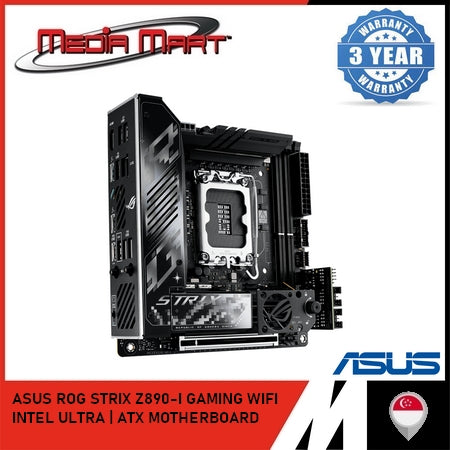

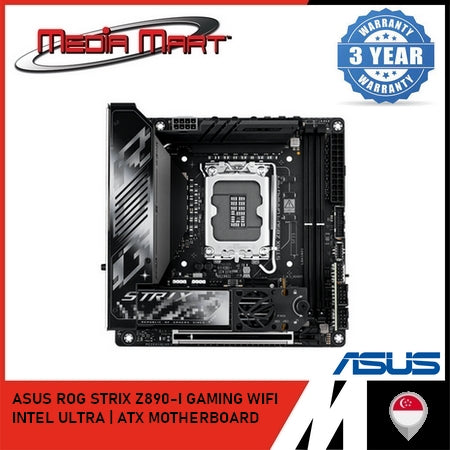

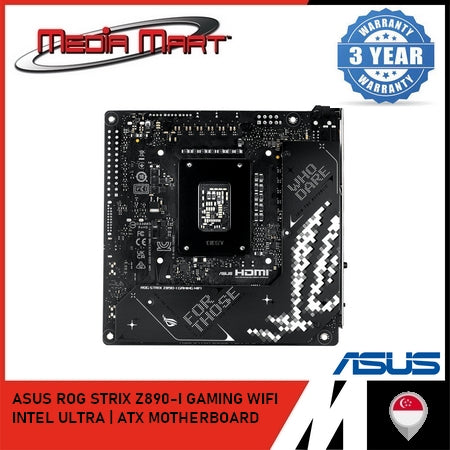

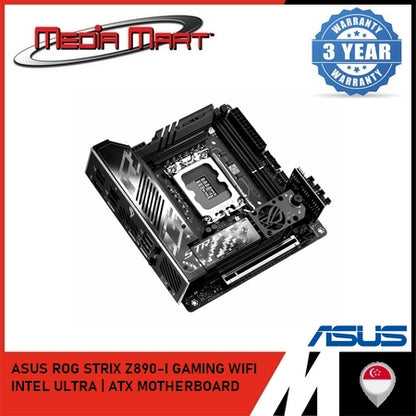

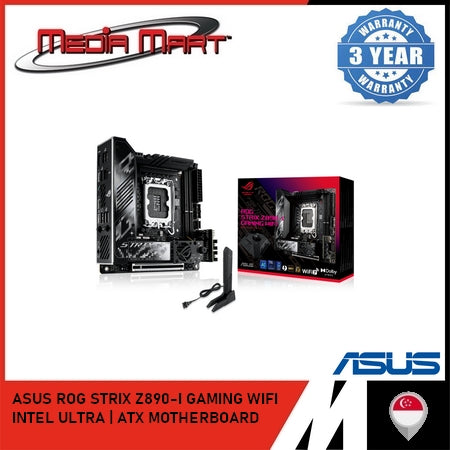

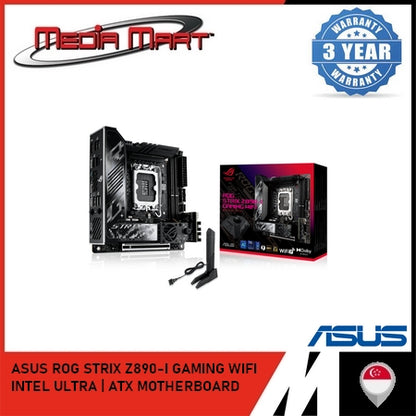

ASUS ROG STRIX Z890-I GAMING WIFI INTEL ULTRA ITX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX Z890-I GAMING WIFI
Chipset: Intel® Z890 Chipset
CPU Support: Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
💾 Memory Specifications:
Memory Slots: 2x DDR5 DIMM, up to 128GB
Supported Speeds:
Overclocked: Up to 9200+ MT/s (OC)
Supports Dual-Channel, Non-ECC, Un-buffered memory, XMP, DIMM Flex, ASUS AEMP III, CUDIMM
🎮 Graphics & Display:
1x HDMI™ 2.1: Up to 4K @ 60Hz
2x Thunderbolt™ 4 (USB Type-C®): Supports DisplayPort and Thunderbolt™ video output
🔌 Expansion Slots:
From CPU:
1x PCIe 5.0 x16 slot (x16 mode)
Note: M.2_2 shares bandwidth with PCIEX16. When occupied, PCIEX16 operates at x8.
🎧 Audio:
ROG STRIX HIVE II Audio Features:
ESS® SABRE9260Q DAC
ROG Hyper-Grounding Technology
Silver-plated audio jacks
Dedicated audio PCB layers
All audio functions are provided through the ROG STRIX HIVE II
💽 Storage Support:
M.2 Slots:
2x M.2 (Key M)
M.2_1: PCIe 5.0 x4
M.2_2: PCIe 5.0 x4 (shares bandwidth with PCIEX16)
SATA Ports:
2x SATA 6Gb/s (via ROG FPS Card)
RAID Support:
Intel® Rapid Storage Technology supports PCIe RAID 0/1, SATA RAID 0/1
⚡ USB Connectivity:
Rear:
2x Thunderbolt™ 4 (USB Type-C®)
1x USB 20Gbps (USB Type-C®)
3x USB 10Gbps (Type-A)
1x USB 5Gbps (Type-A)
2x USB 2.0 (Type-A)
Front:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
ROG STRIX HIVE II:
2x USB 10Gbps (1x Type-C®, 1x Type-A)
ROG FPS Card:
2x USB 2.0 headers (supporting 3 USB 2.0 ports)
🌐 Networking:
LAN: Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 5.8Gbps
Bluetooth: v5.4
🔧 Internal Connectors:
Power:
1x 24-pin ATX_PWR
1x 8-pin CPU_PWR
Cooling:
1x CPU Fan
1x AIO Pump
1x Chassis Fan
1x Extra Flow Fan
Storage:
2x M.2 Slots
2x SATA 6Gb/s (via ROG FPS Card)
USB:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (supporting 3 ports)
Misc:
2x Addressable Gen2 headers
1x 2-pin Power Button header
1x Thermal Sensor header
2x USB Type-C® connectors (for FPS Card)
1x CPU Over Voltage jumper
1x Clear CMOS header
1x Front Panel header
1x Alteration PCIe Mode switch
🔆 LED & Special Features:
ASUS Q-Design:
M.2 Q-Release Duo
PCIe Slot Q-Release Slim (SafeSlot)
Q-Antenna, Q-Dashboard, Q-LED (CPU, DRAM, VGA, Boot)
Q-DIMM, Q-Slot
Thermal:
M.2 Heatsinks, Backplate, VRM Heatsink, Fan Bracket
DIY Features:
BIOS FlashBack™, LED Indicator, CPU Socket Lever Protector
Pre-mounted I/O, SafeDIMM, Backplate
Aura Sync: Addressable Gen2 headers

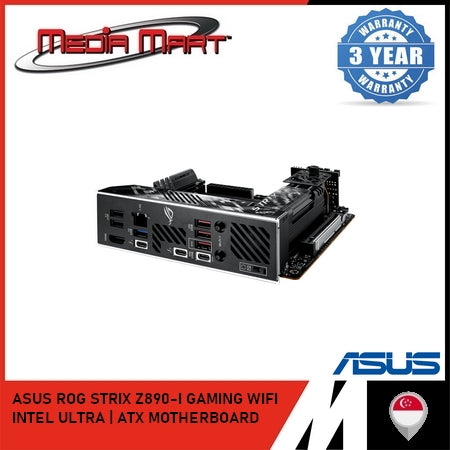

🔌 Back Panel Ports:
2x Thunderbolt™ 4 (USB Type-C®)
1x USB 20Gbps (USB Type-C®)
3x USB 10Gbps (Type-A)
1x USB 5Gbps (Type-A)
2x USB 2.0 (Type-A)
1x HDMI
1x Wi-Fi Module
1x Intel® 2.5Gb LAN
1x BIOS FlashBack™ Button
📦 Included Accessories:
ROG STRIX HIVE II (with audio, USB, power, and control functions)
ROG FPS Card (SATA, USB 2.0)
ASUS WiFi Q-Antenna
ROG USB2.0 splitter cable
2x SATA 6Gb/s cables
Cable ties, key chain, stickers
Quick start guide
🖥 Operating System:
Support for Windows® 11 (22H2 & later)
📦 Package Dimensions & Form Factor:
Form Factor: Mini-ITX (6.7 inch x 6.7 inch / 17 cm x 17 cm)
