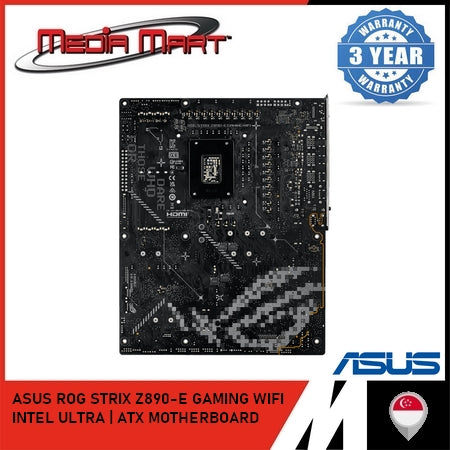

ASUS ROG STRIX Z890-E GAMING WIFI INTEL ULTRA ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX Z890-E GAMING WIFI
Chipset: Intel® Z890 Chipset
CPU Support: Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Overclocked: Up to 9200+ MT/s (OC)
Supports Dual-Channel, Non-ECC, Un-buffered memory, XMP, DIMM Flex, NitroPath DRAM Technology, DIMM Fit, ASUS AEMP III
🎮 Graphics & Display:
1x DisplayPort 1.4: Up to 8K @ 60Hz
1x HDMI® 2.1: Up to 8K @ 60Hz
2x Thunderbolt™ 4 (USB Type-C®): Supports DisplayPort and Thunderbolt™ video output
🔌 Expansion Slots:
1x PCIe 5.0 x16 slot (x16 or x8/x4/x4 modes, from CPU)
1x PCIe 4.0 x16 slot (x4 mode, from chipset)
🎧 Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
120 dB SNR stereo playback / 110 dB SNR recording
Supports up to 32-Bit/384 kHz playback
Optical S/PDIF Out
Savitech SV3H712 AMP, Audio Shielding, Premium capacitors
💽 Storage Support:
M.2 Slots:
7x M.2 (various configurations from CPU and Chipset)
M.2_1 to M.2_7 support PCIe 5.0 / 4.0 / SATA modes
SATA Ports (4x): 6Gbps
RAID Support:
Intel® Rapid Storage Technology supports PCIe and SATA RAID 0, 1, 5, 10
⚡ USB Connectivity:
USB Ports:
Rear:
2x Thunderbolt™ 4 (USB Type-C®)
9x USB 10Gbps (7x Type-A, 1x USB-C, 1x USB-C with 30W PD Fast-charge)
3x USB 5Gbps (3x Type-A)
Front:
1x USB 20Gbps (USB Type-C®)
2x USB 5Gbps headers (4 ports)
3x USB 2.0 headers (6 ports)
🌐 Networking:
LAN: Realtek 5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 5.8Gbps
Bluetooth: v5.4
🔧 Internal Connectors:
Power Connectors:
1x 24-pin ATX_PWR
2x 8-pin CPU_PWR
Cooling:
1x CPU Fan, 1x CPU OPT Fan, 1x AIO Pump, 5x Chassis Fan
Storage:
7x M.2 Slots
4x SATA 6Gb/s
USB:
1x USB 20Gbps (USB Type-C®)
2x USB 5Gbps headers (4 ports)
3x USB 2.0 headers (6 ports)
Misc:
3x Addressable Gen2 headers
1x Chassis Intrusion
1x CPU Over Voltage jumper
1x FlexKey button
1x Front Audio Header
1x Start button
1x System Panel Header
1x PCIe Mode Switch
1x Thermal Sensor Header
1x Thunderbolt™ Header
🔆 LED & Special Features:
Q-Code, Q-Dashboard, Q-LED (CPU, DRAM, VGA, Boot), SafeDIMM, SafeSlot, BIOS FlashBack™, Clear CMOS
Aura Sync: Addressable Gen2 headers
🔌 Back Panel Ports:
2x Thunderbolt™ 4 (USB Type-C®)
9x USB 10Gbps (7x Type-A, 1x USB-C, 1x USB-C w/ 30W PD)
3x USB 5Gbps (3x Type-A)
1x DisplayPort
1x HDMI
1x Wi-Fi Module
1x Realtek 5Gb LAN
2x Audio Jacks (Gold-plated)
1x Optical S/PDIF
1x BIOS FlashBack™ Button
1x Clear CMOS Button
🖥 Operating System:
Support for Windows® 11 (22H2 & later)
📦 Package Dimensions & Form Factor:
Form Factor: ATX (305mm x 244mm)
