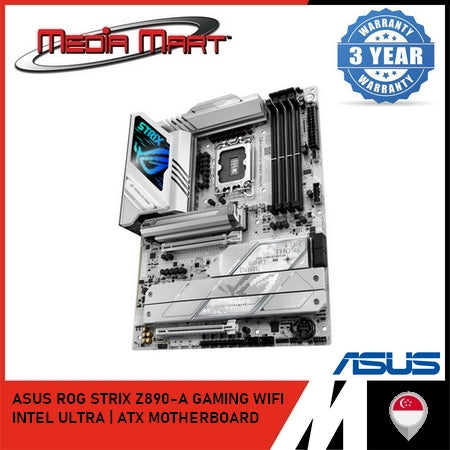

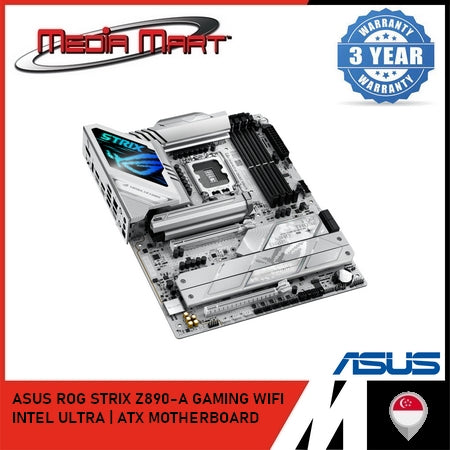

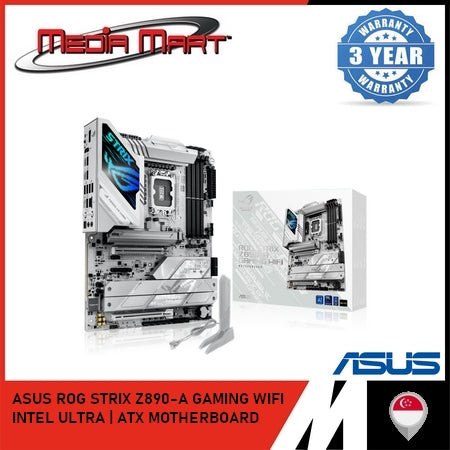

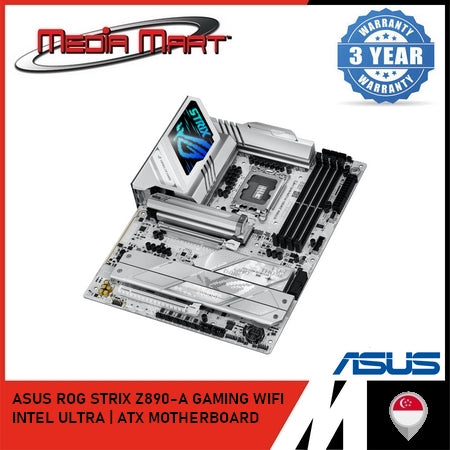

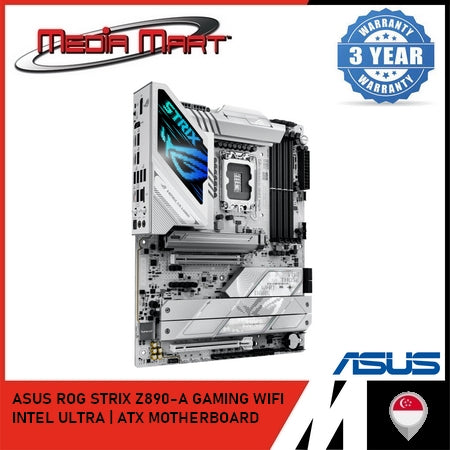

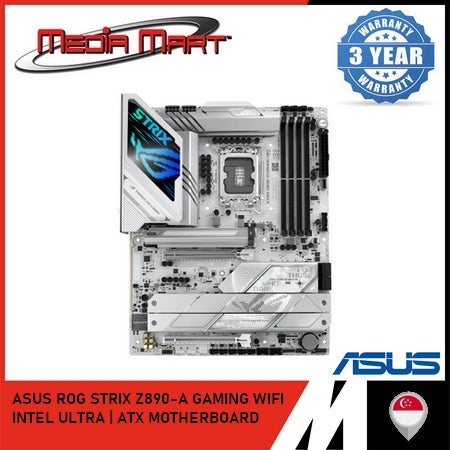

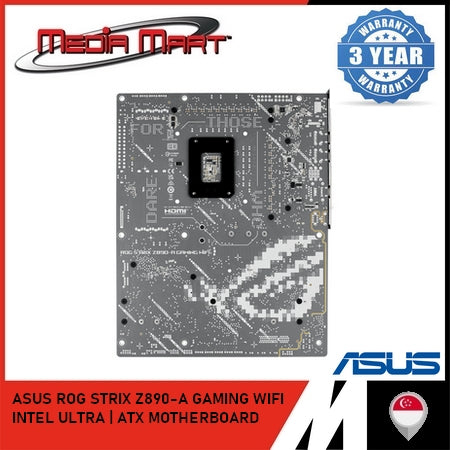

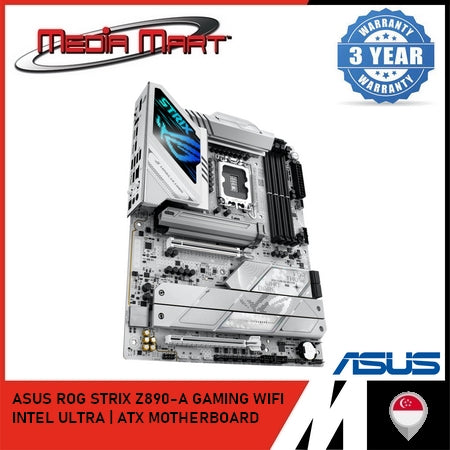

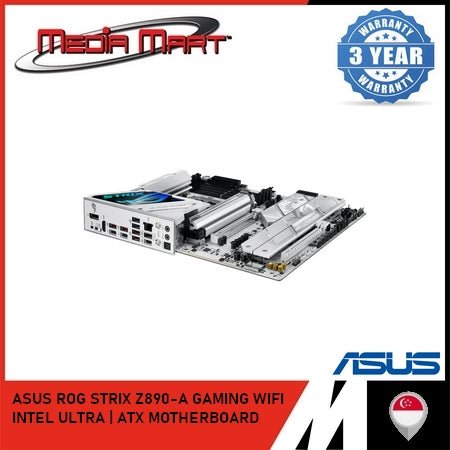

ASUS ROG STRIX Z890-A GAMING WIFI INTEL ULTRA ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX Z890-A GAMING WIFI
Chipset: Intel® Z890 Chipset
CPU Support: Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Overclocked: Up to 9066+ MT/s (OC)
Supports Dual-Channel, Non-ECC, Un-buffered memory, XMP, DIMM Flex, DIMM Fit, ASUS AEMP III
🎮 Graphics & Display:
1x DisplayPort 1.4: Up to 8K @ 60Hz
1x HDMI® 2.1: Up to 4K @ 60Hz
2x Thunderbolt™ 4 (USB Type-C®): Supports DisplayPort and Thunderbolt™ video output
🔌 Expansion Slots:
From CPU:
1x PCIe 5.0 x16 slot
From Chipset:
1x PCIe 4.0 x16 slot (x4 mode)
🎧 Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
120 dB SNR stereo playback / 110 dB SNR recording
Supports up to 32-Bit/384 kHz playback
Optical S/PDIF Out
Savitech SV3H712 AMP, Audio Shielding, Premium capacitors
💽 Storage Support:
M.2 Slots:
5x M.2 (various configurations from CPU and Chipset)
M.2_1 (PCIe 5.0 x4)
M.2_2 to M.2_4 (PCIe 4.0 x4)
M.2_5 (PCIe 4.0 x4 & SATA)
SATA Ports:
4x SATA 6Gbps
RAID Support:
Intel® Rapid Storage Technology supports PCIe and SATA RAID 0, 1, 5, 10
⚡ USB Connectivity:
Rear:
2x Thunderbolt™ 4 (USB Type-C®)
6x USB 10Gbps (5x Type-A, 1x Type-C® with up to 30W fast charge)
2x USB 5Gbps (2x Type-A)
Front:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN: Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 5.8Gbps
Bluetooth: v5.4
🔧 Internal Connectors:
Power:
1x 24-pin ATX_PWR
2x 8-pin CPU_PWR
Cooling:
1x CPU Fan, 1x CPU OPT Fan, 1x AIO Pump, 5x Chassis Fan
Storage:
5x M.2 Slots
4x SATA 6Gb/s
USB:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable Gen2 headers
1x Chassis Intrusion
1x CPU Over Voltage jumper
1x Front Audio Header
1x Start button
1x System Panel Header
1x Thermal Sensor Header
1x Thunderbolt™ Header
🔆 LED & Special Features:
ASUS Q-Design:
M.2 Q-Latch, Q-Release, Q-Slide
PCIe Slot Q-Release Slim (SafeSlot)
Q-Antenna, Q-Dashboard, Q-LED (CPU, DRAM, VGA, Boot)
Thermal:
M.2 Heatsinks, Backplate
DIY Features:
BIOS FlashBack™, Clear CMOS, Pre-mounted I/O, SafeDIMM
Aura Sync: Addressable Gen2 headers
🔌 Back Panel Ports:
2x Thunderbolt™ 4 (USB Type-C®)
6x USB 10Gbps (5x Type-A, 1x Type-C® w/ up to 30W PD)
2x USB 5Gbps (2x Type-A)
1x DisplayPort
1x HDMI
1x Wi-Fi Module
1x Intel® 2.5Gb LAN
2x Audio Jacks
1x Optical S/PDIF
1x BIOS FlashBack™ Button
1x Clear CMOS Button
🖥 Operating System:
Support for Windows® 11 (22H2 & later)
📦 Package Dimensions & Form Factor:
Form Factor: ATX (305mm x 244mm)
