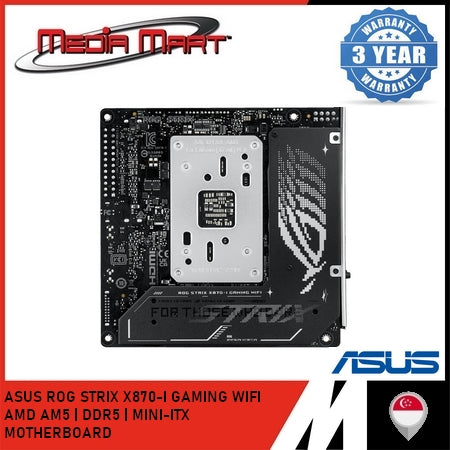

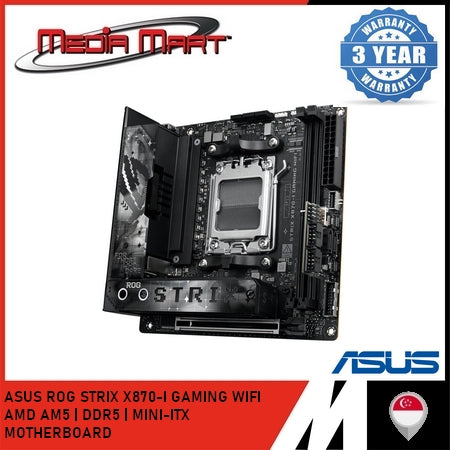

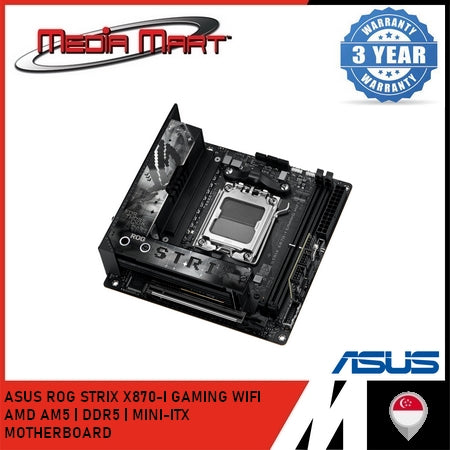

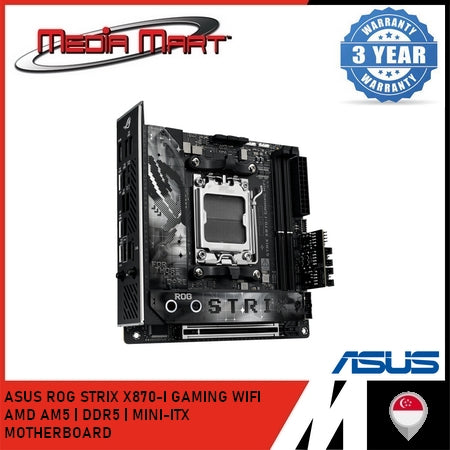

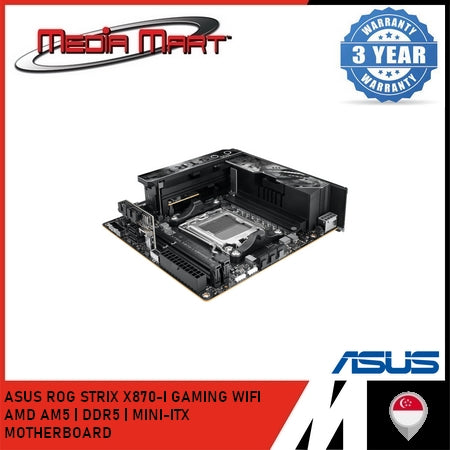

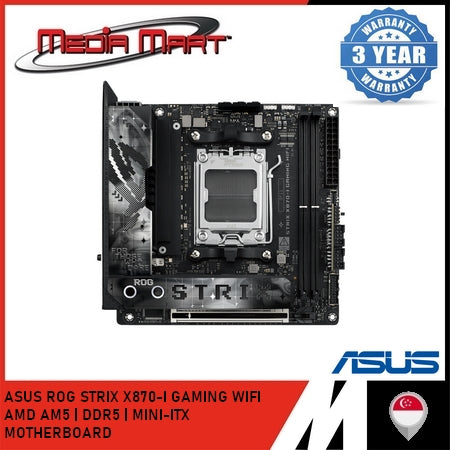

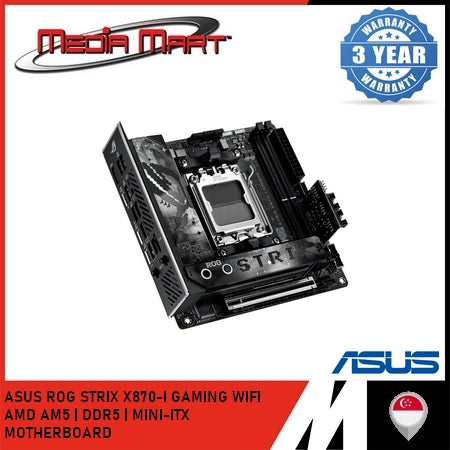

ASUS ROG STRIX X870-I GAMING WIFI ITX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX X870-I GAMING WIFI
Chipset: AMD X870
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 2x DDR5 DIMM, up to 128GB
Supported Speeds:
Up to 8400+ MT/s (OC) with Ryzen™ 9000
Up to 8600+ MT/s (OC) with Ryzen™ 8000
Up to 8000+ MT/s (OC) with Ryzen™ 7000
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
🎮 Graphics & Display:
1x HDMI™ port (Up to 4K @ 60Hz via HDMI 2.1)
2x USB4® (40Gbps, Type-C®) with DisplayPort 1.4a Alt Mode (up to 4K @ 60Hz)
*Display output support varies by CPU. Refer to AMD specifications.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000 Series:
1x PCIe 5.0 x16 (x16 mode)
With Ryzen™ 8000 Series:
1x PCIe 4.0 x16 (x8/x4 mode)
💽 Storage Support:
From CPU:
M.2_1: PCIe 5.0 x4 (2280) for Ryzen™ 9000/7000
M.2_1: PCIe 4.0 x4 (2280) for Ryzen™ 8000
From Chipset:
M.2_2: PCIe 4.0 x4 (2242/2260/2280)
2x SATA 6Gb/s ports (via ROG FPS Card)
RAID Support:
PCIe RAID 0/1/10 and SATA RAID 0/1 via AMD RAIDXpert2 Technology
🎧 Audio:
ROG Strix Hive II Audio
ROG Hyper-Grounding Technology
ESS® SABRE9260Q DAC
Silver-plated audio jacks
Dedicated audio PCB layers
⚡ USB Connectivity:

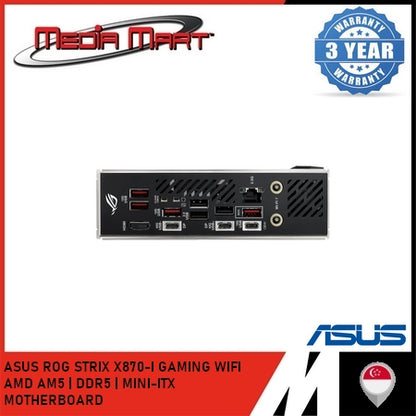

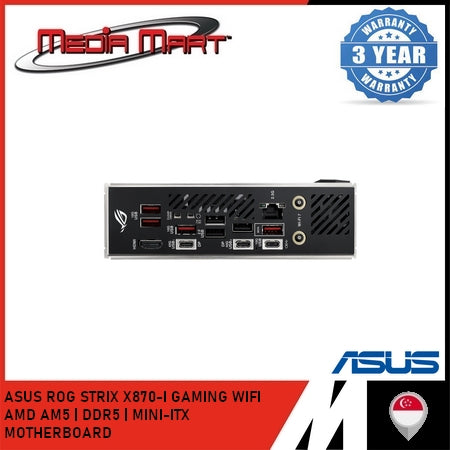

Rear:
2x USB4® (40Gbps, Type-C®)
5x USB 10Gbps (4x Type-A + 1x Type-C®)
3x USB 2.0 (Type-A)
Front:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
ROG STRIX HIVE II:
2x USB 10Gbps (1x Type-A + 1x Type-C®)
ROG FPS Card:
2x USB 2.0 headers (3 ports)
🌐 Networking:
LAN:
1x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 6.5Gbps
Bluetooth: v5.4
*Wi-Fi 7 full support requires Windows 11 24H2 or later
🔧 Internal Connectors:
Power:
1x 24-pin ATX
1x 8-pin CPU
Cooling:
1x CPU Fan
1x AIO Pump
1x Chassis Fan
Storage:
2x M.2 Slots
2x SATA 6Gb/s (via ROG FPS Card)
USB:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (3 ports)
Misc:
2x Addressable Gen2 headers
1x Power Button header
1x Thermal Sensor header
2x USB Type-C® connectors for ROG FPS Card
1x CPU Over Voltage jumper
1x Front Panel header
1x PCIe Mode switch
🔆 LED & Special Features:
ASUS Q-Design:
Q-Antenna, M.2 Q-Latch, PCIe Slot Q-Release Slim, Q-DIMM, Q-LED (CPU, DRAM, VGA, Boot), Q-Slot
Thermal Solutions:

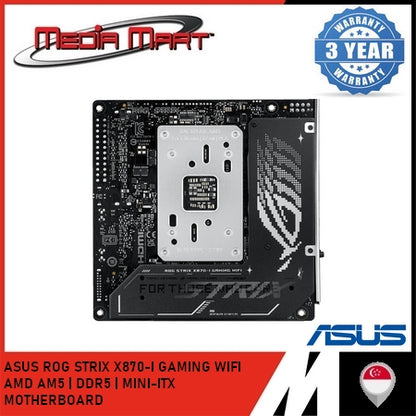

M.2 Heatsink, Aluminum Backplate
DIY Tools:
BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM, Pre-mounted I/O shield, ProCool II
Aura Sync:
Addressable Gen2 RGB headers
ROG STRIX HIVE II:
1x USB Type-C® to motherboard
2x USB 10Gbps (1x Type-A + 1x Type-C®)
1x Headphone jack with mic in
1x Power button
1x FlexKey button
1x Volume control knob with mute
Q-LED indicators
🧰 Software Features:
ROG Exclusive:
ROG CPU-Z, Dolby Atmos
ASUS Exclusive:
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (AI Cooling II), AIDA64 (60-day trial), HWiNFO, Power Saving, GameFirst, ASUS DriverHub, GlideX, WinRAR (40-day trial), Adobe CC Trial, Norton 360 for Gamers (60-day trial)
UEFI BIOS:
AI Overclocking Guide, EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey, Dynamic OC Switcher, FlexKey

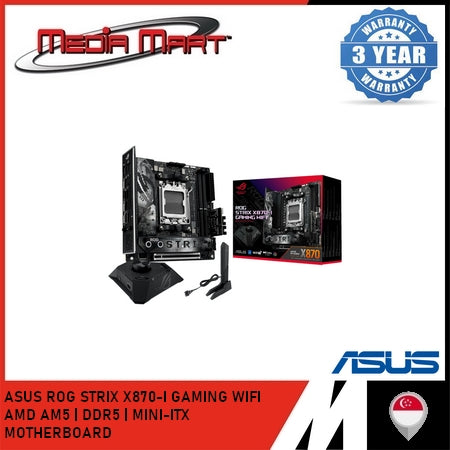

📦 Included Accessories:
2x SATA 6Gb/s cables
ASUS WiFi Antenna
Cable ties pack
M.2 Q-Latch package
M.2 Rubber kits
ROG key chain
ROG Strix stickers
Panel cable
ROG USB 2.0 splitter cable
ROG FPS Card
ROG STRIX HIVE II with USB-C cable
Quick start guide
🖥 Operating System:
Support for Windows® 11 (Full functions on 24H2 or later)
📐 Package Dimensions & Form Factor:
Form Factor: Mini-ITX (6.7 inch x 6.7 inch / 17 cm x 17 cm)
