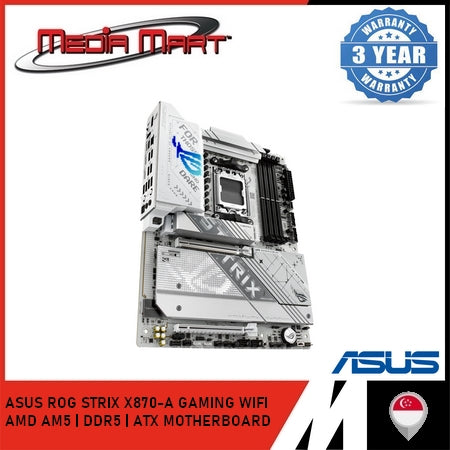

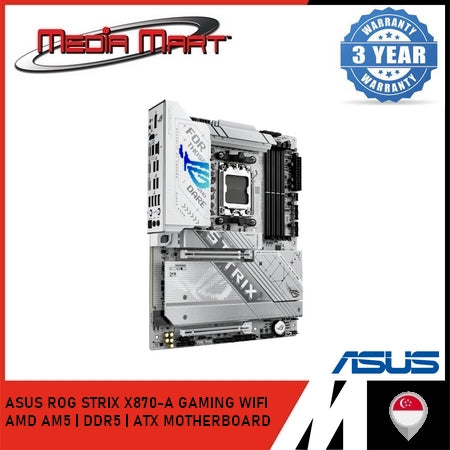

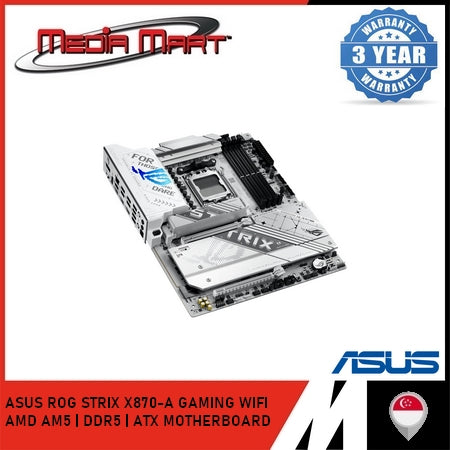

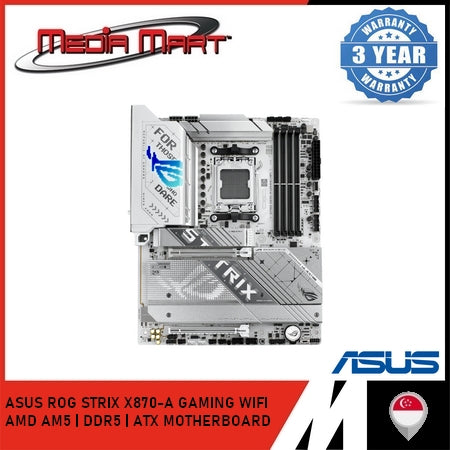

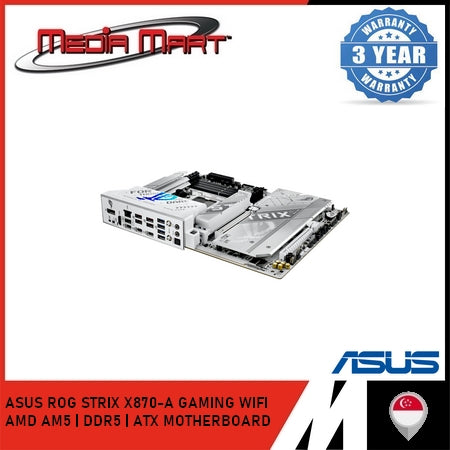

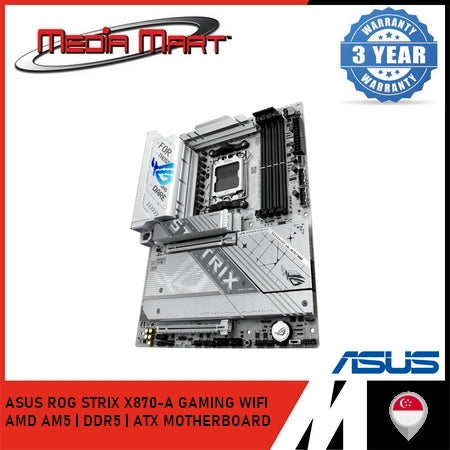

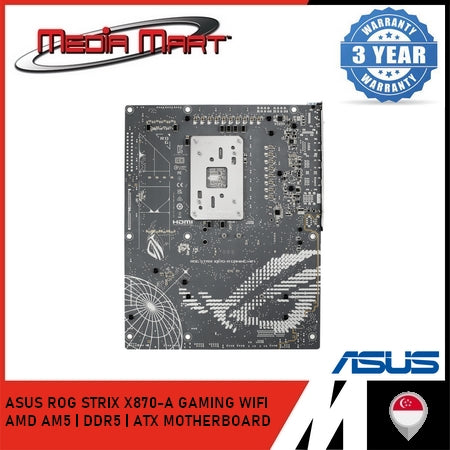

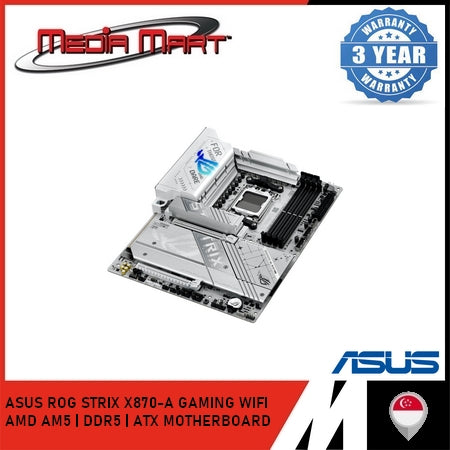

ASUS ROG STRIX X870-A GAMING WIFI ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX X870-A GAMING WIFI
Chipset: AMD X870
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Up to 8000+ MT/s (OC)
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
🎮 Graphics & Display:
1x DisplayPort 1.4 (up to 8K @ 30Hz)
1x HDMI™ port (Up to 4K @ 60Hz via HDMI 2.1)
2x USB4® (40Gbps, Type-C®) with DisplayPort 1.4a Alt Mode (up to 4K @ 60Hz)
*Display output support varies by CPU. Refer to AMD specifications.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000 Series:
1x PCIe 5.0 x16 (x16 mode)
With Ryzen™ 8000 Series:
1x PCIe 4.0 x16 (x8/x4 mode)
From Chipset:
1x PCIe 4.0 x16 (x4 mode)
💽 Storage Support:
From CPU:
M.2_1: PCIe 5.0 x4 (2242/2260/2280) for Ryzen™ 9000 & 7000
M.2_2: PCIe 5.0 x4 (2280/22110) for Ryzen™ 9000 & 7000 (x8 mode when used)*
M.2_1: PCIe 4.0 x4/x2 (2242/2260/2280) for Ryzen™ 8000
M.2_2: Not supported with Ryzen™ 8000
From Chipset:
M.2_3: PCIe 4.0 x4 (2280) (disables PCIEX16(G4) when used)
M.2_4: PCIe 4.0 x4 (2280)
2x SATA 6Gb/s ports
RAID Support:
PCIe RAID 0/1/5/10 and SATA RAID 0/1 via AMD RAIDXpert2 Technology (RAID 5 only on Ryzen™ 9000)
🎧 Audio:
ROG SupremeFX 7.1 Surround Sound (ALC4080)
Impedance sensing, Multi-streaming, Jack-retasking
Up to 32-bit/384 kHz playback (front panel)
Optical S/PDIF out
Savitech SV3H712 AMP, premium capacitors, SupremeFX shielding
*Line-out port on rear panel does not support spatial audio. Use front panel or USB audio for spatial support.
⚡ USB Connectivity:

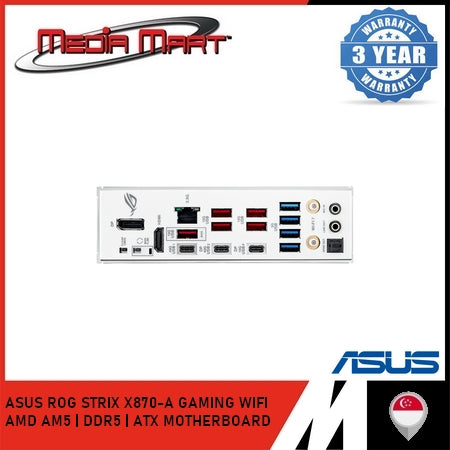

Rear:
2x USB4® (40Gbps, Type-C® with DP Alt Mode)
6x USB 10Gbps (5x Type-A + 1x Type-C® w/ up to 30W PD)
4x USB 5Gbps (Type-A)
Front:
1x USB 20Gbps (Type-C®)
2x USB 5Gbps headers (4 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN:
1x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 2.9Gbps
Bluetooth: v5.4
*Wi-Fi 7 requires Windows 11 24H2 or later for full support.
🔧 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin +12V CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
5x Chassis Fan
Storage:
4x M.2 Slots
2x SATA 6Gb/s
USB:
1x USB 20Gbps (Type-C®)
2x USB 5Gbps headers (4 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable Gen2 headers
1x PCIe Mode switch
1x Chassis Intrusion header
1x CPU Over Voltage jumper
1x Front Panel header
1x Front Panel Audio header
1x Start button
1x Thermal Sensor header
🔆 LED & Special Features:
ASUS Q-Design:
M.2 Q-Latch, Q-Release, Q-DIMM, Q-LED, Q-Slot, Q-Antenna, Q-Dashboard
Thermal Solutions:
M.2 Heatsinks with backplates
DIY Tools:
BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM, Pre-mounted I/O shield, ProCool II
Aura Sync:
Addressable Gen2 RGB headers
🧰 Software Features:
ROG Exclusive:
ROG CPU-Z, Dolby Atmos
ASUS Exclusive:
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (AI Cooling II), AIDA64 (60-day trial), HWiNFO, Power Saving, GameFirst, ASUS DriverHub, GlideX, USB Wattage Watcher, WinRAR (40-day trial), Adobe CC Trial, Norton 360 for Gamers (60-day trial)
UEFI BIOS:
AI Overclocking Guide, EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey, Dynamic OC Switcher, FlexKey
📦 Included Accessories:
2x SATA 6Gb/s cables
ASUS WiFi Q-Antenna
Cable ties package
M.2 Q-Latch & Q-Slide packages
M.2 rubber kits
ROG key chain
ROG Strix stickers
Quick start guide
🖥 Operating System:
Support for Windows® 11 (Full functions on 24H2 or later)
📐 Package Dimensions & Form Factor:
Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm)
