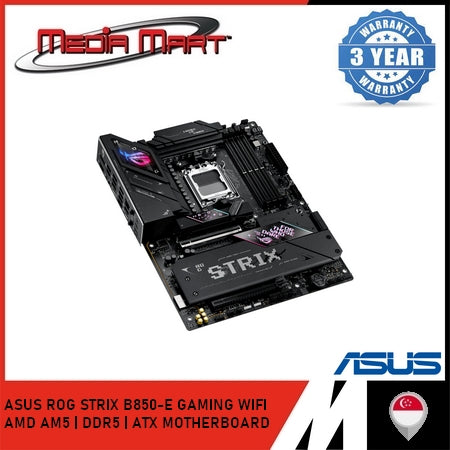

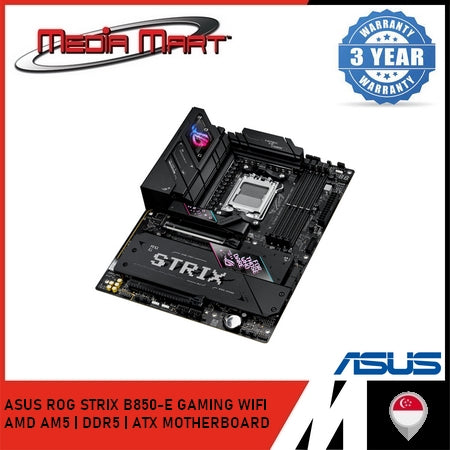

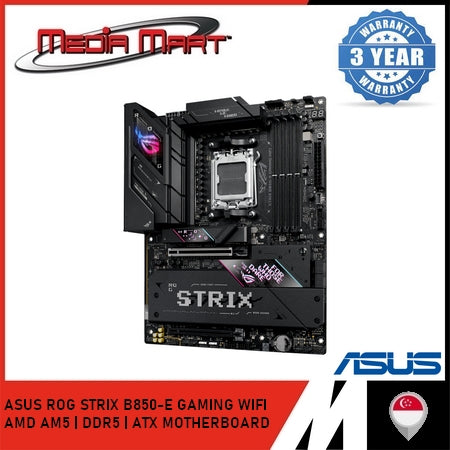

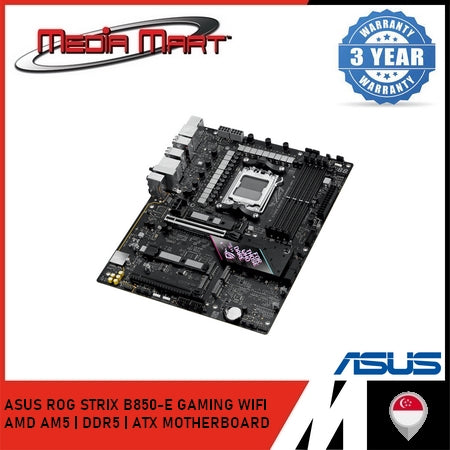

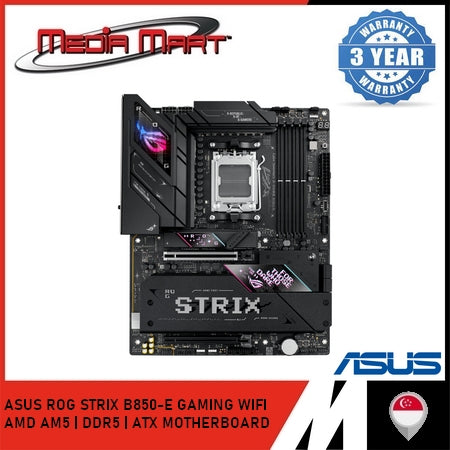

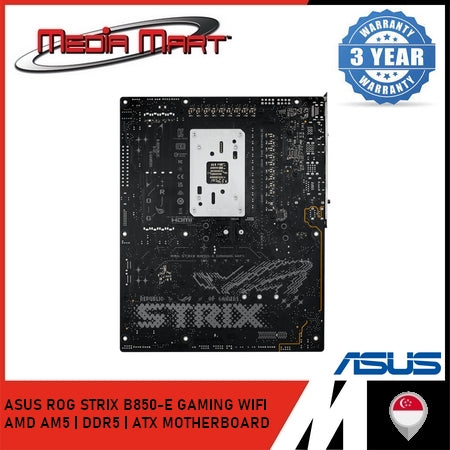

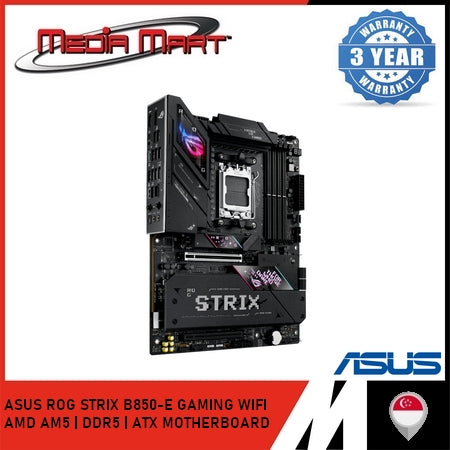

ASUS ROG STRIX B850-E GAMING WIFI AMD AM5 | DDR5 | ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX B850-E GAMING WIFI
Chipset: AMD B850
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
*Non-ECC Un-buffered DDR5 supports On-Die ECC
🎮 Graphics & Display:
1x DisplayPort (8K @ 30Hz)
1x HDMI™ port (4K @ 60Hz via HDMI 2.1)
1x USB4® (40Gbps, Type-C®) with DisplayPort 1.4a Alt Mode (4K @ 60Hz)
*Display output support varies by CPU.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000:
1x PCIe 5.0 x16 (x16 or x8 mode)
With Ryzen™ 8000:
1x PCIe 5.0 x16 (x8 or x4 mode)
From Chipset:
1x PCIe 4.0 x16 (x4 mode)
*M.2_2 or M.2_3 usage may reduce PCIe x16 to x8. M.2_4 shares bandwidth with PCIEX16(G4).
💽 Storage Support:
5x M.2 slots:
Ryzen™ 9000/7000:
M.2_1, M.2_2, M.2_3: PCIe 5.0 x4
Ryzen™ 8000:
M.2_1: PCIe 4.0 x4
M.2_2, M.2_3: Not supported
From Chipset:
M.2_4, M.2_5: PCIe 4.0 x4
4x SATA 6Gb/s (ASMedia ASM1061 Controller)
RAID Support:
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10
🎧 Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio (ALC4080)
Jack detection, Multi-streaming, Front Panel MIC Jack-retasking
Up to 32-bit/384 kHz playback (front panel)
Audio Features:
Savitech SV3H712 AMP, Audio Shielding, Premium Capacitors, Optical S/PDIF Out, Gold-plated jacks
⚡ USB Connectivity:

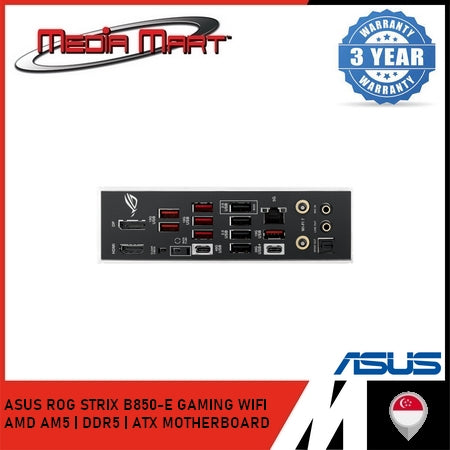

Rear:
1x USB4® (40Gbps, Type-C®)
1x USB 20Gbps (Type-C®, PD up to 30W)
6x USB 10Gbps (Type-A)
4x USB 2.0 (Type-A)
Front:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN:
1x Realtek 5Gb Ethernet with ASUS LANGuard
Wi-Fi:
Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz
Bluetooth: v5.4
*Wi-Fi 7 requires Windows 11 24H2 or later.
🔧 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin +12V CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
5x Chassis Fan
Storage:
5x M.2 Slots
4x SATA
USB:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable Gen2 headers
1x Thermal Sensor header
1x Front Panel Audio header
1x 10-1 pin System Panel header
1x Power Button
1x CPU Overvoltage Jumper
🔆 LED & Special Features:
ASUS Q-Design:
M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Q-Release Slim, Q-Antenna, Q-Code, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot
Thermal Solutions:
M.2 heatsink and backplate, VRM heatsinks
DIY Tools:
BIOS FlashBack™, Clear CMOS, Pre-mounted I/O shield, ProCool, SafeSlot, SafeDIMM
Aura Sync:
Addressable Gen2 RGB headers
USB Fast Charge:
Rear USB 20Gbps Type-C® with PD/PPS up to 30W
🧰 Software Features:
ROG Exclusive:
ROG CPU-Z, Dolby Atmos
ASUS Software:
Armoury Crate, AIDA64 Extreme (60-day trial), Aura Creator, Aura Sync, GameFirst, Fan Xpert 4, HWiNFO, Power Saving, DriverHub, GlideX, USB Wattage Watcher, TurboV Core
Bundled Software:
Adobe Creative Cloud (trial), Norton 360 (60-day), WinRAR (40-day)
UEFI BIOS:
AI Overclocking, EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey, Dynamic OC Switcher, Core Flex
📦 Included Accessories:
WiFi Q-Antenna
2x SATA 6Gb/s cables
M.2 Q-Slide package
Thermal pad for M.2 22110
5x M.2 rubber spacers
Cable ties package
ROG key chain
ROG Strix stickers
Quick Start Guide
🖥 Operating System:
Support for Windows® 11 (Full functions on 24H2 or later)
📐 Package Dimensions & Form Factor:
Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm)
