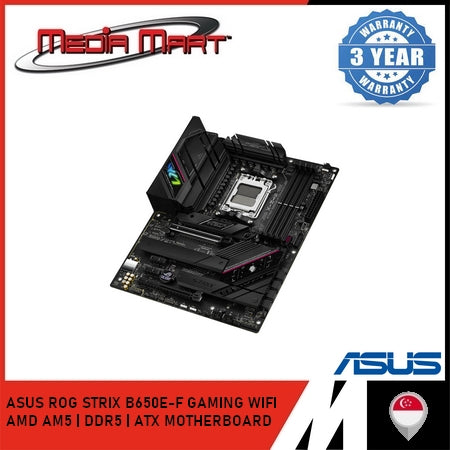

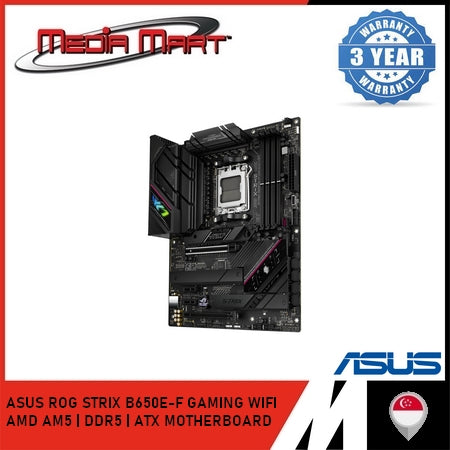

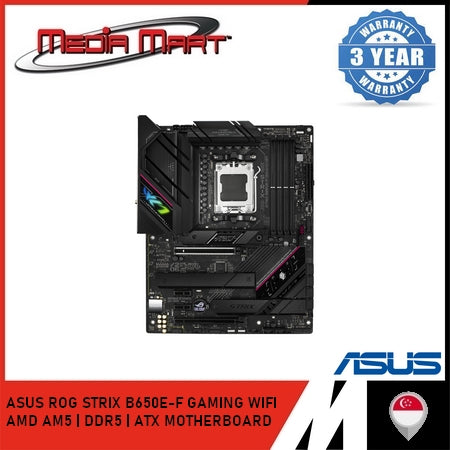

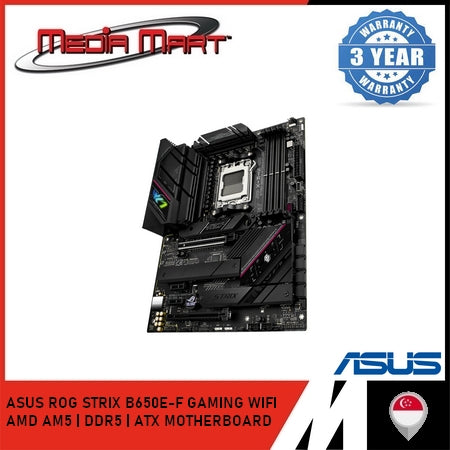

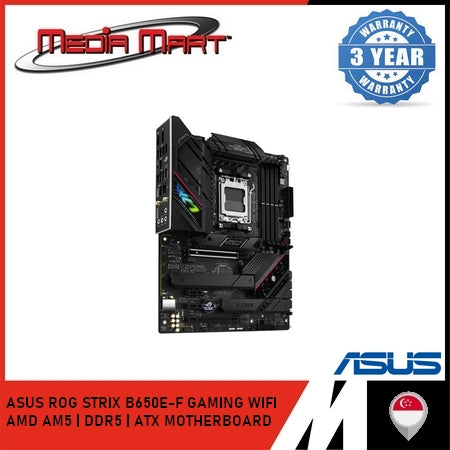

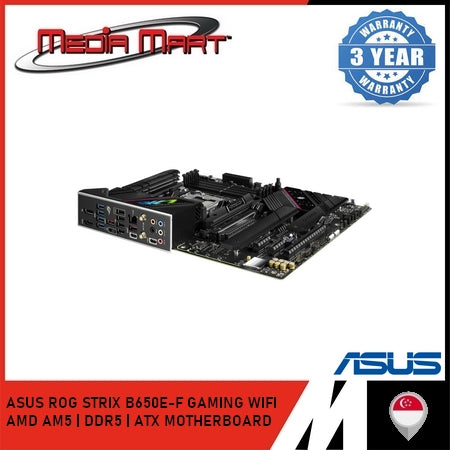

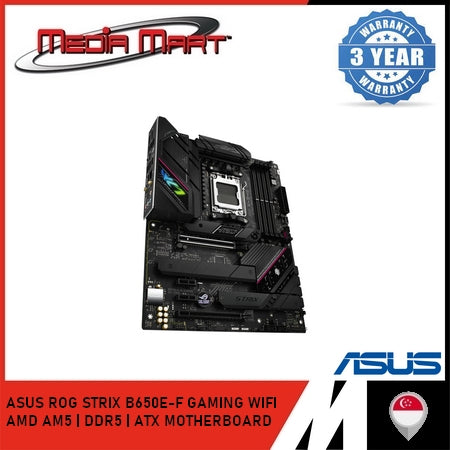

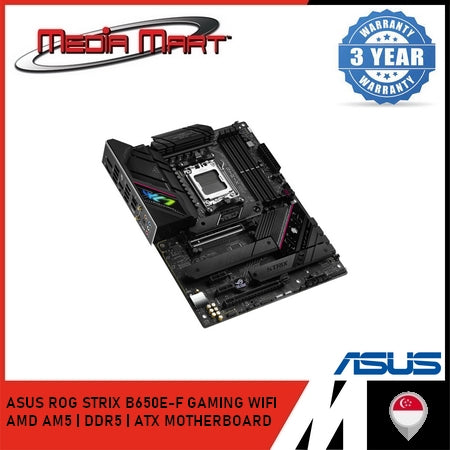

Socket & Chipset: AMD AM5 socket with B650 chipset. Supports Ryzen™ 7000, 8000, and 9000 series CPUs.
-
Memory: 4x DDR5 DIMM slots, up to 192GB, up to DDR5-8000+(OC). Dual-channel with AMD EXPO support.
-
Storage: 3x M.2 slots (up to PCIe 5.0), 4x SATA 6Gb/s ports. RAID 0/1/10 support.
-
Expansion Slots: 1x PCIe 5.0 x16 (9000/7000 series CPUs), 1x PCIe 4.0 x16 (B650 chipset, shared with M.2_3), 2x PCIe x1.
-
Graphics Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4 (up to 8K@60Hz, CPU dependent).
-
Networking: Intel® 2.5Gb Ethernet, Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.2.
-
USB Ports:
-

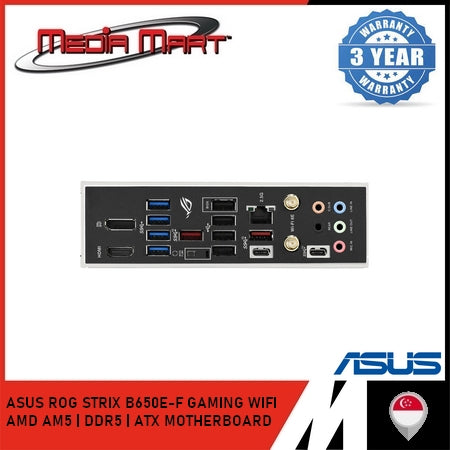

Rear: 1x USB-C 20Gbps, 2x USB-C 10Gbps, 2x USB-A 10Gbps, 4x USB-A 5Gbps, 4x USB 2.0
-
Front: 1x USB-C 10Gbps, headers for 6 more USB ports.
-
Audio: SupremeFX ALC4080 7.1 Surround Sound, 32-bit/384 kHz playback, premium shielding & Savitech amp.
-
Cooling & Power: 6x fan headers, AIO pump header, VRM & M.2 heatsinks, ProCool connectors.
-
Build Quality & Protection: SafeSlot, SafeDIMM, 5K black metallic capacitors, Q-LED, Q-Release, Q-Latch.
-
RGB & Lighting: Aura Sync RGB, 1x AURA RGB header, 3x Addressable Gen 2 headers.
-
Convenience Features: BIOS FlashBack™, pre-mounted I/O shield, thermal sensor header, Thunderbolt™ header, FlexKey button.
-
Software Suite: Armoury Crate, GameFirst VI, Sonic Studio III, Sonic Radar III, DTS® Sound Unbound, AI Suite 3, AIDA64 (trial).
-
OS Compatibility: Windows® 10 & 11 (64-bit)
