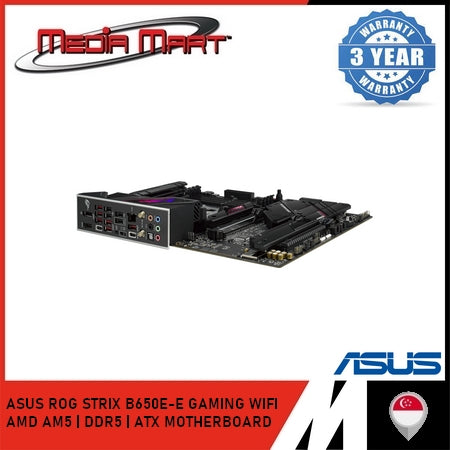

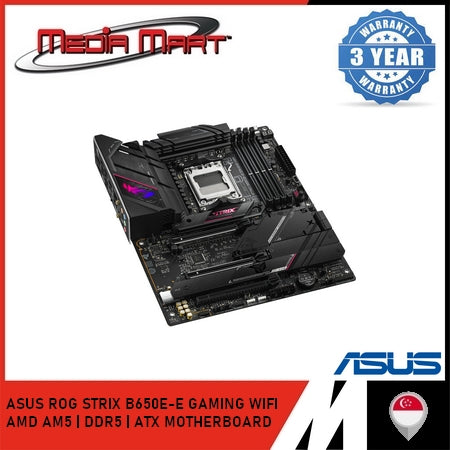

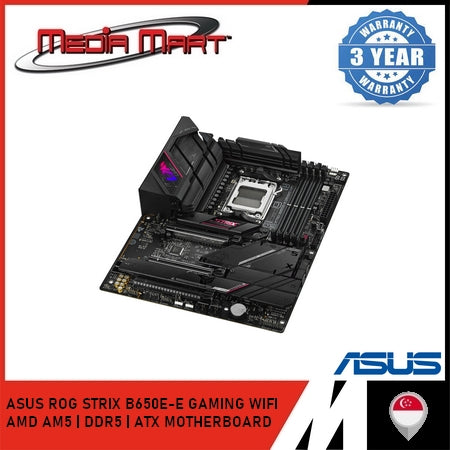

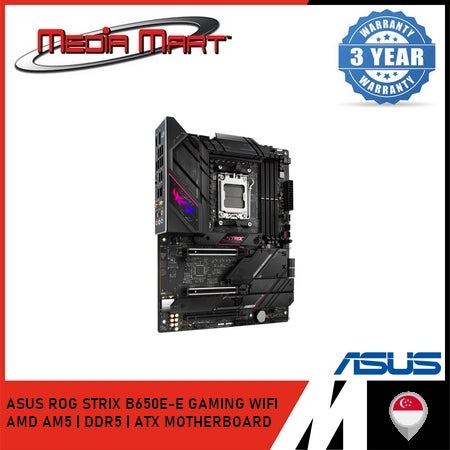

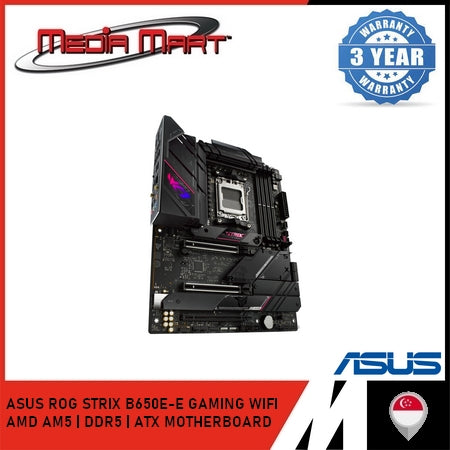

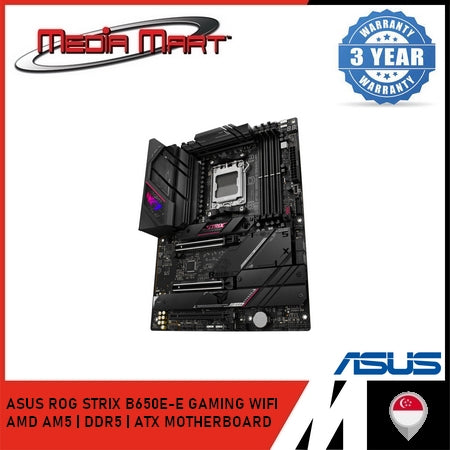

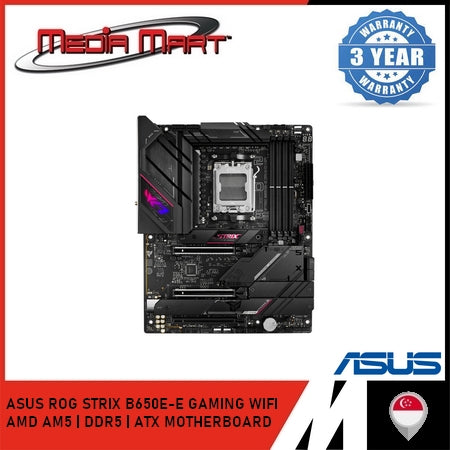

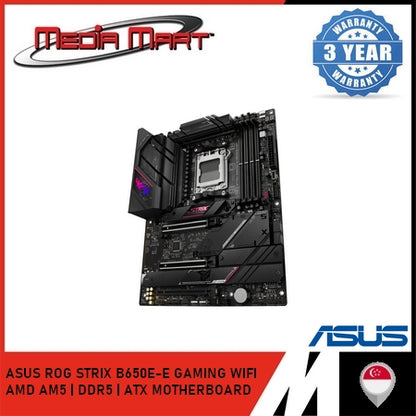

ASUS ROG STRIX B650E-E GAMING WIFI AMD AM5 | DDR5 | ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX B650E-E GAMING WIFI
Chipset: AMD B650
CPU Support: AMD Socket AM5 for Ryzen™ Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 192GB
Supported Speeds:
Up to 8000+ MT/s (OC)
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, OptiMem II
*Non-ECC Un-buffered DDR5 supports On-Die ECC
🎮 Graphics & Display:
1x DisplayPort 1.4 (up to 8K @ 60Hz)*
1x HDMI™ 2.1 port (up to 4K @ 60Hz)*
*Graphics specifications may vary depending on CPU support.
🔌 Expansion Slots:
AMD Ryzen™ Desktop Processors:
2x PCIe 5.0 x16 (x16 or x8/x4 modes)
Chipset:
1x PCIe 4.0 x16 (x4 mode)
*See ASUS PCIe bifurcation table for details.
💽 Storage Support:
Total: 4x M.2, 4x SATA 6Gb/s
Ryzen™ Desktop Processors:
M.2_1: PCIe 5.0 x4 (2242/2260/2280)
M.2_2: PCIe 4.0 x4 (2242/2260/2280)
M.2_3: PCIe 5.0 x4 (2242/2260/2280/22110)
Chipset:
M.2_4: PCIe 4.0 x4 (2242/2260/2280)
4x SATA 6Gb/s (ASMedia ASM1061 Controller)
*RAIDXpert2 supports PCIe RAID 0/1/10
*SATA RAID not supported on SATA6G_E1-4
🌐 Networking:
LAN:
1x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wireless:
Wi-Fi 6E (802.11 a/b/g/n/ac/ax, 2x2)
Bluetooth 5.2
⚡ USB Connectivity:

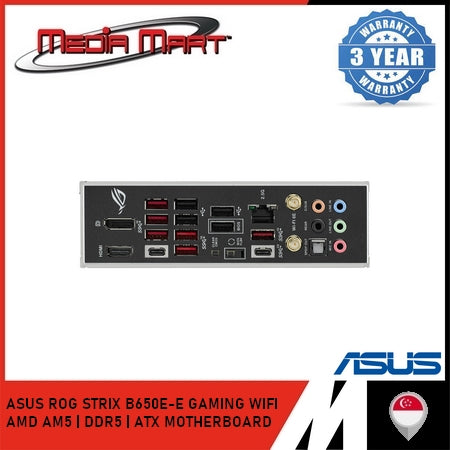

Rear:
1x USB 3.2 Gen 2x2 (Type-C®)
7x USB 3.2 Gen 2 (6x Type-A, 1x Type-C®)
4x USB 2.0 (Type-A)
Front:
1x USB 3.2 Gen 2 header (Type-C®)
1x USB 3.2 Gen 1 header (2 ports)
2x USB 2.0 headers (4 ports)
🎧 Audio:
ROG SupremeFX 7.1 Surround Sound ALC4080 CODEC
Impedance sensing, jack detection, front panel retasking
Up to 32-Bit/384kHz playback
Audio Features:
Savitech SV3H712 AMP
Audio shielding, premium capacitors, S/PDIF out
🧰 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin +12V CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump header
5x Chassis Fan headers
Storage:
4x M.2 Slots
4x SATA 6Gb/s ports
USB:
1x USB 3.2 Gen 2 (Type-C®)
1x USB 3.2 Gen 1 header (2 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable Gen2 headers
1x Aura RGB header
1x Thermal Sensor header
1x Front Panel Audio header
1x System Panel header (20-3 pin)
1x CPU Over Voltage jumper
1x Thunderbolt™ (USB4®) header
🔆 Special Features:
Extreme Engine Digi+, 5K Black Metallic Capacitors
ASUS Q-Design:
M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot
Thermal:
M.2 heatsinks, VRM heatsink, M.2 backplate
DIY Tools:
BIOS FlashBack™ button & LED, Clear CMOS button, Pre-mounted I/O shield, ProCool, SafeSlot, SafeDIMM
Aura Sync:
Aura RGB header, Addressable Gen2 headers
🖥 Software Features:
ROG Exclusive:
GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III, DTS® Sound Unbound
ASUS Exclusive:
Armoury Crate, AIDA64 (60-day trial), Aura Creator, Fan Xpert 4, Power Saving, Two-Way AI Noise Canceling
AI Suite 3: TPU, DIGI+ VRM, Turbo App, PC Cleaner
Other: MyASUS, WinRAR
🔧 UEFI BIOS:
256Mb Flash ROM, UEFI AMI BIOS
EZ DIY:
EZ Flash 3, CrashFree BIOS 3, EZ Mode, Dynamic OC Switcher, FlexKey
📦 Included Accessories:
2x SATA 6Gb/s cables
1x Thermal pad for M.2
1x Wi-Fi moving antennas
1x Cable ties pack
1x M.2 Q-Latch package
1x ROG key chain
1x ROG Strix sticker set
1x ROG thank you card
2x Rubber Packages for M.2
1x User Guide
🖥 Operating System:
Support for Windows® 10/11 64-bit
📐 Package Dimensions & Form Factor:
Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm)
