ASUS

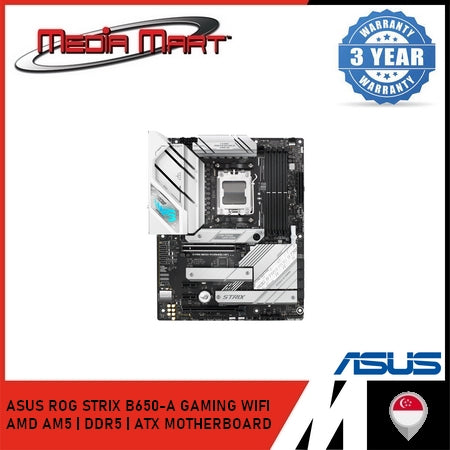

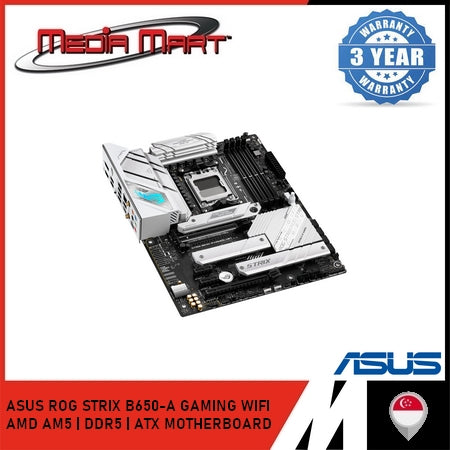

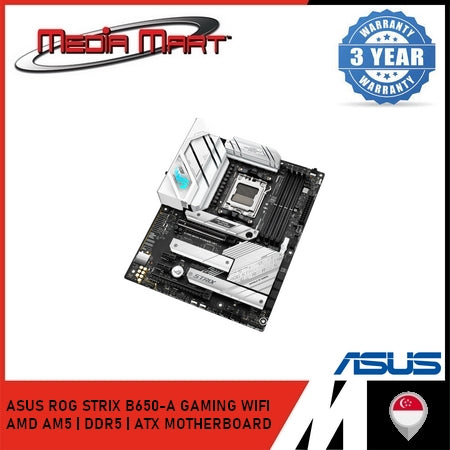

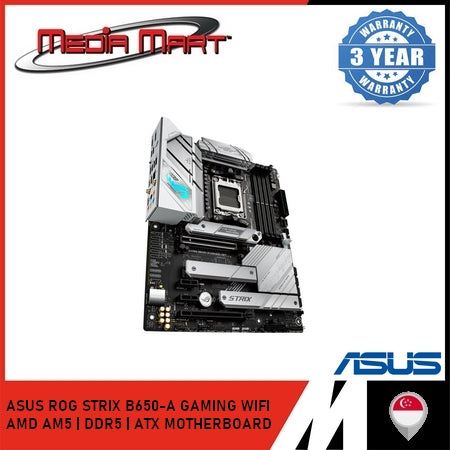

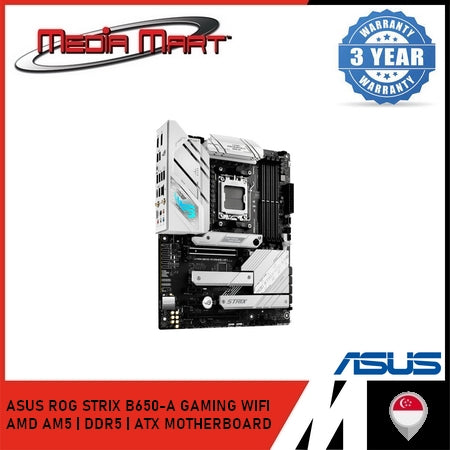

ASUS ROG STRIX B650-A GAMING WIFI AMD AM5 | DDR5 | ATX MOTHERBOARD

ASUS ROG STRIX B650-A GAMING WIFI AMD AM5 | DDR5 | ATX MOTHERBOARD

$477.00
$477.00
Sale Sold out

Model

ROG STRIX B650-A GAMING WIFI

CPU

  • Socket: AMD AM5

  • Supported CPUs:

    • Ryzen™ 9000, 8000, 7000 Series Desktop Processors

    • Refer to ASUS CPU support list for full compatibility

Chipset

  • AMD B650

Memory

  • 4 x DIMM, up to 192GB

  • DDR5 4800 to 7600+ (OC)

  • ECC and Non-ECC, Un-buffered, Dual Channel

  • AMD EXPO™ support

  • OptiMem II

Graphics

  • 1 x DisplayPort 1.4 (up to 8K@60Hz)

  • 1 x HDMI 2.1 (up to 4K@60Hz)

  • Graphics output depends on CPU APU capabilities

Expansion Slots

CPU Dependent:

  • Ryzen™ 9000/7000: 1 x PCIe 4.0 x16

  • Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode)

From Chipset:

  • 1 x PCIe 4.0 x16 (x4 mode, shared with M.2_3)

  • 2 x PCIe 4.0 x1 slots

Storage

  • M.2 Slots (3 total):

    • M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000)

    • M.2_2: PCIe 4.0 x4 (all CPUs)

    • M.2_3: PCIe 4.0 x4 (shared with PCIe x16 slot)

  • SATA Ports:

    • 4 x SATA 6Gb/s

  • RAID Support:

    • NVMe and SATA RAID 0/1/10

Networking

  • Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 6E (802.11 a/b/g/n/ac/ax, 2x2)

  • Bluetooth v5.2

  • 6GHz support varies by country

USB Ports

Rear I/O (9 total):

  • 1 x USB 3.2 Gen 2x2 (Type-C)

  • 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C)

  • 4 x USB 2.0 (Type-A)

Front I/O (via headers, 7 total):

  • 1 x USB 3.2 Gen 2 (Type-C)

  • 1 x USB 3.2 Gen 1 header (2 ports)

  • 2 x USB 2.0 headers (4 ports)

Audio

  • ROG SupremeFX 7.1 (ALC4080)

    • 32-bit/384kHz playback

    • 120 dB SNR playback / 113 dB SNR recording

    • Jack detection, multi-streaming

    • Savitech SV3H712 AMP

    • Premium capacitors, shielding, and audio cover

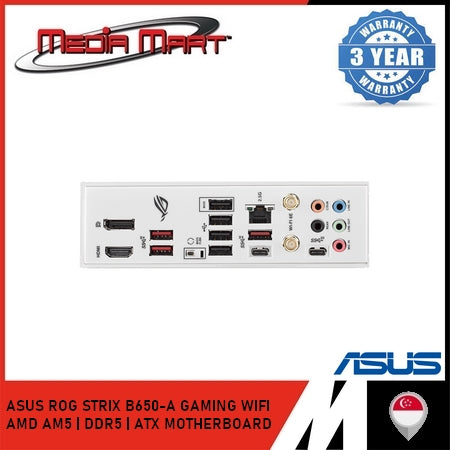

Back Panel I/O

  • 1 x USB 3.2 Gen 2x2 (Type-C)

  • 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C)

  • 4 x USB 2.0 (Type-A)

  • 1 x DisplayPort

  • 1 x HDMI

  • 1 x Intel® 2.5Gb Ethernet

  • 1 x Wi-Fi antenna module

  • 5 x Audio jacks

  • 1 x BIOS FlashBack™ button

Internal I/O Connectors

  • Cooling:

    • 1 x CPU fan

    • 1 x CPU OPT

    • 1 x AIO pump

    • 4 x Chassis fans (all 4-pin)

  • Power:

    • 1 x 24-pin ATX

    • 1 x 8-pin +12V

    • 1 x 4-pin +12V

  • Storage:

    • 3 x M.2 (Key M)

    • 4 x SATA 6Gb/s

  • USB:

    • 1 x USB 3.2 Gen 2 (Type-C)

    • 1 x USB 3.2 Gen 1 header (2 ports)

    • 2 x USB 2.0 headers (4 ports)

  • RGB & Misc:

    • 3 x Addressable Gen 2 headers

    • 1 x AURA RGB header

    • 1 x Clear CMOS header

    • 1 x CPU Over Voltage jumper

    • 1 x Front Panel Audio (AAFP)

    • 1 x S/PDIF Out header

    • 1 x Thunderbolt™ header

    • 1 x COM_DEBUG header

    • 1 x Thermal sensor

    • 1 x System Panel header (w/ chassis intrude)

Special Features

  • ASUS Q-Design: M.2 Q-Latch, Q-LED, Q-DIMM, Q-Slot, PCIe Slot Q-Release

  • Thermal: M.2 & VRM heatsinks

  • DIY Friendly: BIOS FlashBack™, Pre-mounted I/O shield, SafeSlot, SafeDIMM, ProCool

  • RGB: AURA Sync, AURA RGB header, 3 x Addressable Gen 2 headers

Software

  • ROG Exclusive:

    • GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III, DTS® Sound Unbound

  • ASUS Exclusive:

    • Armoury Crate, AIDA64 (60-day), AI Suite 3, Fan Xpert 4, Power Saving, AI Noise Cancellation, Turbo App

  • Utilities:

    • MyASUS, WinRAR

BIOS

  • 256 Mb UEFI AMI BIOS

  • Features: EZ Flash 3, CrashFree BIOS 3, EZ Mode, FlexKey

Manageability

  • WOL by PME, PXE

Accessories

  • 2 x SATA 6Gb/s cables

  • 1 x Thermal pad for M.2

  • 1 x ASUS Wi-Fi antennas

  • Cable ties, M.2 Q-Latch, M.2 rubber packages

  • ROG keychain, stickers, thank you card

  • User guide

Form Factor

  • ATX (12" x 9.6" / 30.5 cm x 24.4 cm)
