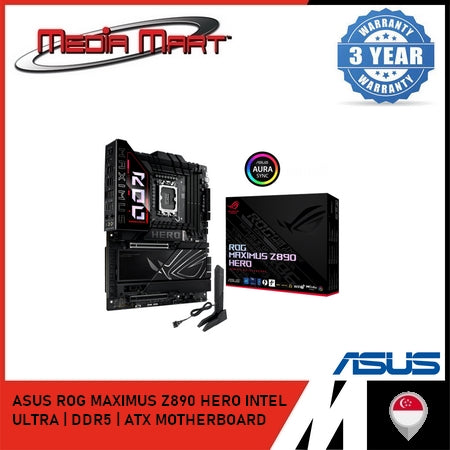

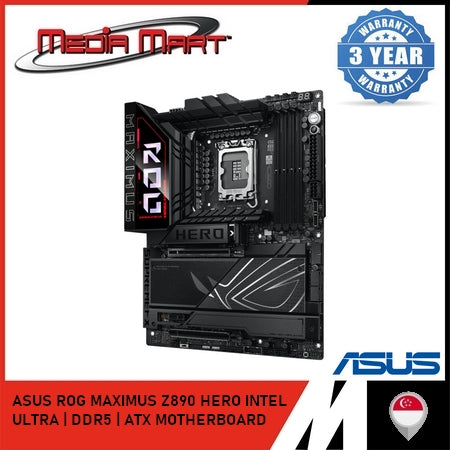

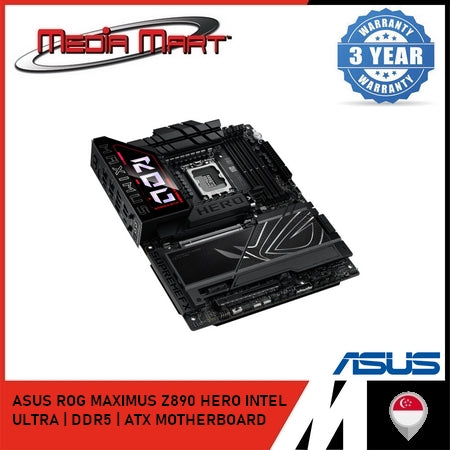

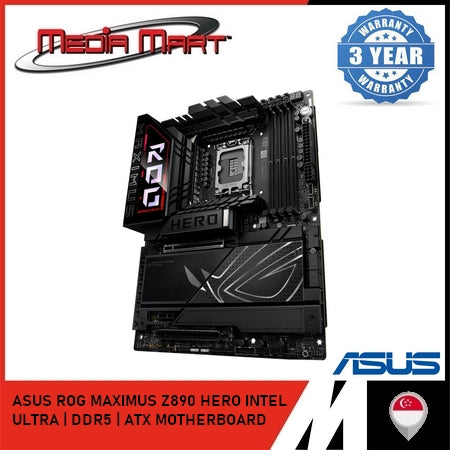

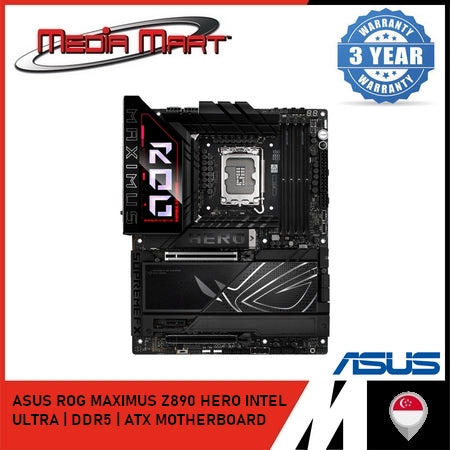

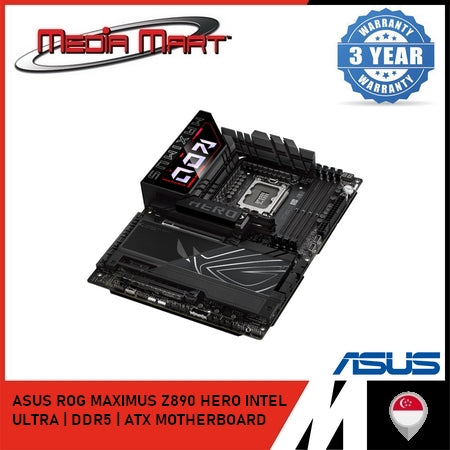

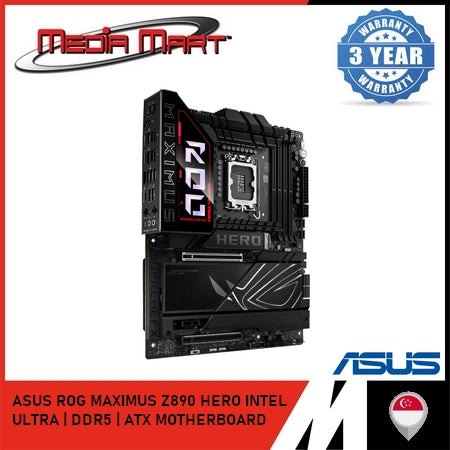

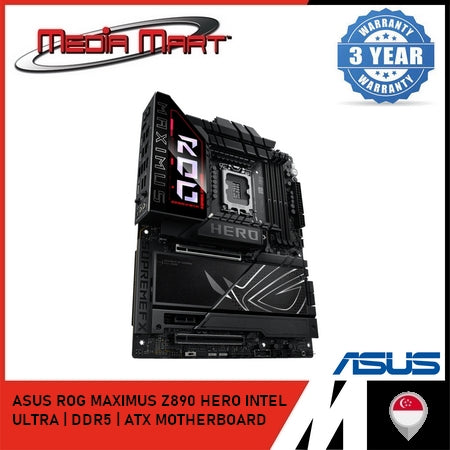

ASUS ROG MAXIMUS Z890 HERO | INTEL LGA 1851 | DDR5 | ATX MOTHERBOARD

ASUS ROG MAXIMUS Z890 HERO | INTEL LGA 1851 | DDR5 | ATX MOTHERBOARD

$1,219.00
$1,219.00
Sale Sold out

CPU Support:

  • Supports Intel® Core™ Ultra Processors (Series 2), LGA1851

  • Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0

  • Refer to ASUS support for complete CPU compatibility list

Chipset:

  • Intel® Z890 Chipset

Memory:

  • 4 x DDR5 DIMM slots, up to 256GB

  • Supports up to 9200+ MT/s (OC), Non-ECC, Un-buffered, CUDIMM

  • Dual Channel Architecture

  • Supports Intel® XMP, DIMM Flex, AEMP III, NitroPath DRAM, DIMM FIT

  • On-Die ECC (DDR5 only)

Graphics:

  • 1 x HDMI™ port (up to 8K@60Hz with DSC, HDMI 2.1)

  • 2 x Thunderbolt™ 4 ports (USB Type-C®) with DisplayPort & DP alt mode support

  • Supports up to 8K@60Hz x1 or 4K@60Hz x2 (Thunderbolt™ 4)

  • VGA resolution dependent on CPU or GPU

  • Discrete GPU may be required for OS installation

Expansion Slots:

  • 1 x PCIe 5.0 x16 (supports x16 or x8/x4/x4)

  • 1 x PCIe 4.0 x16 (x4 mode)

  • 1 x PCIe 4.0 x1

  • Note: Enabling M.2_3 or M.2_4 limits PCIe x16 to x8

Storage:

  • 6 x M.2 slots (2242–22110):

    • M.2_1: PCIe 5.0 x4

    • M.2_2: PCIe 4.0 x4

    • M.2_3 & M.2_4: PCIe 5.0 x4

    • M.2_5 & M.2_6: PCIe 4.0 x4

  • 1 x SlimSAS connector (PCIe 4.0 x4 or 4x SATA via adapter)

  • 4 x SATA 6Gb/s ports

  • Supports Intel® RST RAID 0/1/5/10 (PCIe & SATA)

Networking:

  • 1 x Intel® 2.5Gb Ethernet

  • 1 x Realtek 5Gb Ethernet

  • ASUS LANGuard

Wireless & Bluetooth:

  • Wi-Fi 7 (802.11be, 2x2, 2.4/5/6GHz)

  • Supports 320MHz bandwidth, up to 5.8Gbps

  • Bluetooth® v5.4

  • Full Wi-Fi 7 requires Windows 11 24H2 or later

Rear USB Ports (11 Total):

  • 2 x Thunderbolt™ 4 (USB Type-C®)

  • 5 x USB 10Gbps (4 x Type-A, 1 x Type-C®)

  • 4 x USB 5Gbps (Type-A)

Front USB Ports (10 Total):

  • 1 x USB 20Gbps (Type-C®, up to 60W PD/QC4+)

  • 1 x USB 10Gbps (Type-C®)

  • 2 x USB 5Gbps headers (4 ports)

  • 2 x USB 2.0 headers (4 ports)

Audio:

  • ROG SupremeFX ALC4082 7.1 Surround HD Audio

  • 32-Bit/384 kHz playback (front panel)

  • High SNR: 120 dB playback / 110 dB recording

  • ESS® ES9219 QUAD DAC

  • Optical S/PDIF out, gold-plated jacks, premium capacitors

  • Note: Rear LINE OUT does not support spatial audio

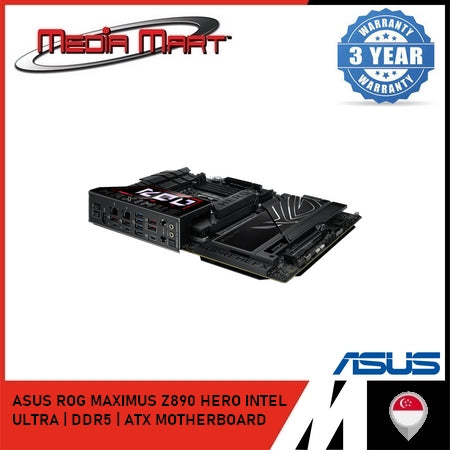

Back Panel I/O:

  • 2 x Thunderbolt™ 4 (USB Type-C®)

  • 5 x USB 10Gbps (4 x Type-A, 1 x Type-C®)

  • 4 x USB 5Gbps (Type-A)

  • 1 x HDMI™ port

  • 1 x Intel® 2.5Gb Ethernet port

  • 1 x Realtek 5Gb Ethernet port

  • 2 x Gold-plated audio jacks

  • 1 x Optical S/PDIF out

  • 1 x BIOS FlashBack™ button

  • 1 x Clear CMOS button

  • 1 x Wi-Fi module

Internal Headers & Features:

  • 7 x Fan headers (CPU, Chassis, AIO, W_PUMP+)

  • 1 x 24-pin ATX Power

  • 2 x 8-pin +12V CPU Power

  • 1 x 8-pin PCIe Power

  • 6 x M.2 slots

  • 4 x SATA ports

  • 3 x Addressable Gen 2 RGB headers

  • 1 x Thunderbolt™ header

  • Buttons: ReTry, FlexKey, Start

  • 1 x Thermal sensor header

  • PCIe Mode Switch, Q-Code, Q-LED

  • Front panel audio & system headers

Special Features:

  • Extreme OC Kit: FlexKey, Start, ReTry

  • Extreme Engine Digi+: 10K capacitors, MicroFine choke

  • ASUS Q-Design: Q-DIMM, Q-Latch, Q-Release, Q-Code, Q-Dashboard

  • ASUS EZ DIY: BIOS FlashBack™, Clear CMOS, Pre-mounted I/O Shield

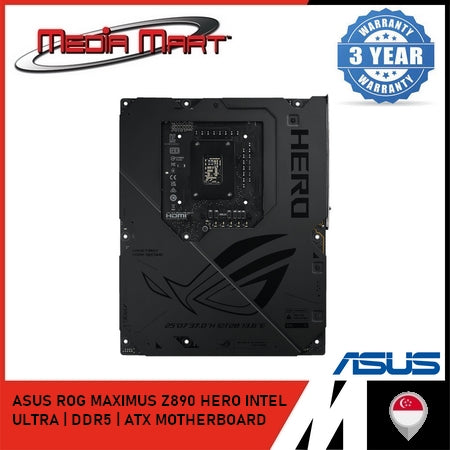

  • ASUS Thermal Solution: M.2 and VRM heatsinks, backplate

  • ROG M.2 PowerBoost

  • Aura Sync RGB, Gen 2 headers

  • USB Wattage Watcher (up to 60W front panel Type-C®)

Software Features:

  • ROG Exclusive: CPU-Z, Dolby Atmos, Polymo Lighting II, Internet Security (1 year)

  • ASUS Software: Armoury Crate, AIDA64 (1 year), Aura Creator, Fan Xpert 4, GameFirst, GlideX, DriverHub

  • AI Overclocking & Advisor, UEFI BIOS EZ Mode

  • Adobe Creative Cloud Trial, WinRAR Trial

  • TurboV Core, MyHotkey, CrashFree BIOS 3, EZ Flash

BIOS:

  • 256 Mb UEFI AMI BIOS

Manageability:

  • Wake-on-LAN (WOL) via PME

Accessories Included:

  • 4 x SATA cables

  • 1 x ARGB extension cable

  • 1 x Thermal pad (M.2 22110)

  • 1 x DDR5 fan holder

  • 1 x ASUS Wi-Fi Q-Antenna

  • 1 x Q-connector

  • 3 x M.2 Q-Slide packages

  • 6 x M.2 rubber sets

  • 1 x ROG bottle opener

  • 1 x Quick start guide

  • 1 x USB drive with drivers

  • ROG stickers & thank you card

Operating System:

  • Windows 11 (22H2 & later)

Form Factor:

  • ATX (12 x 9.6 in / 30.5 x 24.4 cm)
