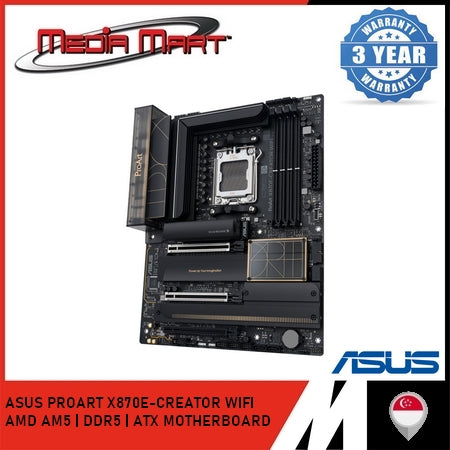

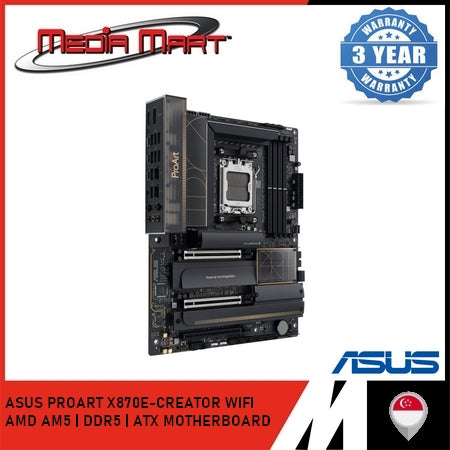

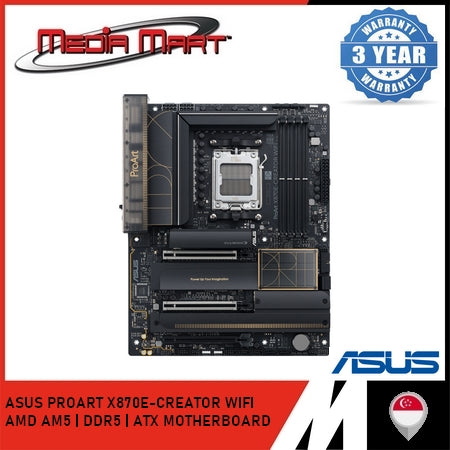

ASUS PROART X870E-CREATOR WIFI AMD AM5 | DDR5 | ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ProArt X870E-Creator WiFi
Chipset: AMD X870E
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
*Non-ECC Un-buffered DDR5 supports On-Die ECC
🎮 Graphics & Display:
1x HDMI™ port (4K @ 60Hz via HDMI 2.1)
2x USB4® (40Gbps, Type-C®) with DisplayPort 1.4 Alt Mode (up to 8K @ 60Hz)*
1x DisplayPort Input (for USB4 Display Output)
*Display output support varies by CPU. USB-C to DP adapter required for DisplayPort over USB4.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000 Series:
2x PCIe 5.0 x16 (x16 or x8/x8 or x8/x4/x4)
With Ryzen™ 8700/8600/8400:
1x PCIe 4.0 x16 (x8 bandwidth max)
With Ryzen™ 8500/8300:
1x PCIe 4.0 x16 (x4 bandwidth max)
From Chipset:
1x PCIe 4.0 x16 (x4 mode)
*PCIEX16(G5)_2 shares bandwidth with M.2_2.
💽 Storage Support:
From CPU:
M.2_1: PCIe 5.0 x4 (2242/2260/2280) with Ryzen™ 9000 & 7000
M.2_2: PCIe 5.0 x4 (2242/2260/2280) with Ryzen™ 9000 & 7000*
M.2_1: PCIe 4.0 x4 (2242/2260/2280) with Ryzen™ 8000
M.2_2: Not supported with Ryzen™ 8000
From Chipset:
M.2_3: PCIe 4.0 x4 (2242/2260/2280)
M.2_4: PCIe 4.0 x4 (2242/2260/2280/22110)
4x SATA 6Gb/s ports
RAID Support:
Ryzen™ 9000: PCIe RAID 0/1/5/10, SATA RAID 0/1/10
Ryzen™ 8000: PCIe RAID 0/1
Ryzen™ 7000: PCIe RAID 0/1/10
🎧 Audio:
Realtek ALC1220P 7.1 Surround Sound
Impedance sensing, Internal AMP, Jack-retasking
Up to 32-bit/192 kHz stereo playback (7.1 not supported at this rate)
Audio Features:
Audio Shielding, Premium Capacitors, Dedicated PCB Layers, De-pop Circuit
⚡ USB Connectivity:

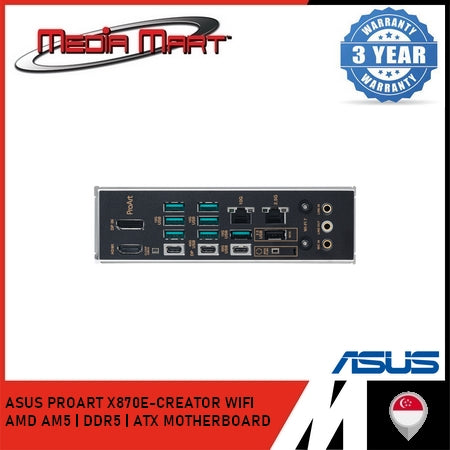

Rear:
2x USB4® (40Gbps, Type-C®)
1x USB 20Gbps (Type-C®)
7x USB 10Gbps (Type-A)
1x USB 2.0 (Type-A)
Front:
1x USB 20Gbps (Type-C® w/ up to 30W PD/QC4+)
1x USB 5Gbps header (2 ports)
3x USB 2.0 headers (6 ports)
🌐 Networking:
LAN:
1x Marvell® AQtion 10Gb Ethernet
1x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 6.5Gbps
Bluetooth: v5.4
*Wi-Fi 7 requires Windows 11 24H2 or later for full support.
🔧 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin +12V CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
5x Chassis Fan
Storage:
4x M.2 Slots
4x SATA 6Gb/s
USB:
1x USB 20Gbps (Type-C® w/ up to 30W PD)
1x USB 5Gbps header (2 ports)
3x USB 2.0 headers (6 ports)
Misc:
3x Addressable Gen2 headers
1x Chassis Intrusion header
1x COM Port header
1x CPU Over Voltage jumper
1x Front Panel header
1x Front Panel Audio header
1x Thermal Sensor header
🔆 LED & Special Features:
ASUS Q-Design:
M.2 Q-Latch, Q-Release Slim, Q-Slide, Q-DIMM, Q-LED, Q-Slot, Q-Antenna, Q-Connector
Thermal Solutions:
M.2 Heatsinks with Backplate, VRM Heatsinks
DIY Tools:
BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM, Pre-mounted I/O shield, ProCool
Aura Sync:
Addressable Gen2 RGB headers
Business Focused:
24/7 Reliability, Overcurrent Protection, ASUS Control Center Express support
🧰 Software Features:
ASUS Exclusive:
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (AI Cooling II), USB Wattage Watcher, TurboV Core, ASUS DriverHub, GlideX, ASUS CPU-Z, ProArt Creator Hub, CreationFirst
Bundled Software:
Adobe CC Trial, Norton 360 Deluxe (60-day trial), WinRAR (40-day trial)
UEFI BIOS:
EZ Flash 3, CrashFree BIOS 3, EZ Mode, FlexKey
Remote Management:
ASUS Control Center Express (ACCE)

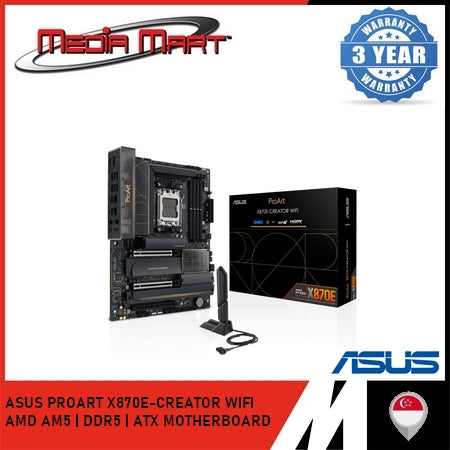

📦 Included Accessories:
1x DisplayPort cable
4x SATA 6Gb/s cables
1x Thermal pad for M.2 22110
ASUS WiFi Q-Antenna
Q-Connector
M.2 Q-Latch & Q-Slide packages
Rubber Packages for M.2
ProArt Ruler
Quick Start Guide
ACCE Activation Key Card
🖥 Operating System:
Support for Windows® 11 (Full functions on 24H2 or later)
📐 Package Dimensions & Form Factor:
Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm)
